100A Smart Single-Phase Energy Meter Bidirectional Voltimetro Ampere Voltage Meter Kwh Power Analyzer Watt Meter
No reviews yetcertified
certified
Shenzhen Jiansiyan Technologies Co., Ltd.
Shenzhen, CN5 yrs on Alibaba.comCustom Manufacturer
4.8/5.0Reorder rate: 17%Response Time ≤ 2hOn-time delivery rate ≥ 90%
Attributes
Single PhasePhase
220 VOutput Voltage
±1.0%Accuracy Class
100 ABasic Current
100 AMax. Current
0.05 A～100 ARated Current
Measuring Energy Range:30mA-100A
Operating Temperature:-20 ~ +60℃
Display Type:Digital Only
Application:Industrial, IOT, Household, Telecommunication, Electric Power
Feature:Safety, Light Weight, Eco-Friendly, Durable, Easy Installation
Place of Origin:Guangdong, China
Model Number:JSY-MK-194TK
Brand Name:JSY-MK

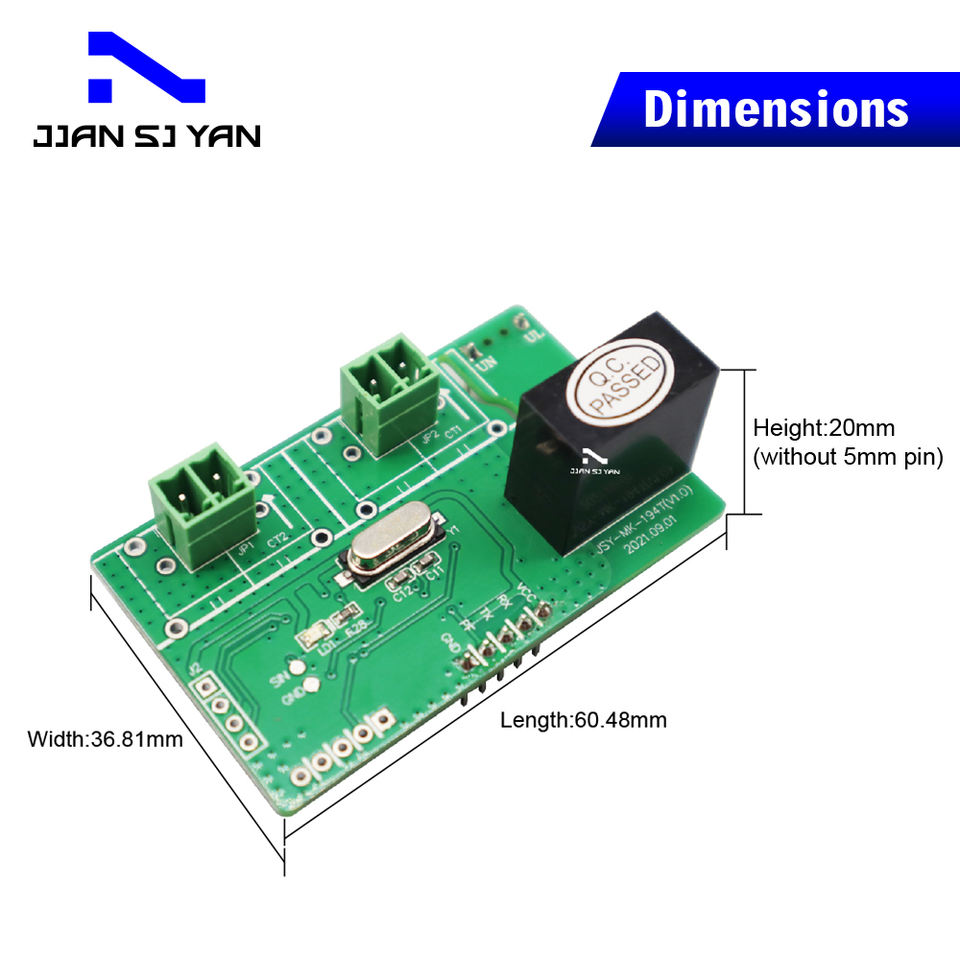

Dimensions:68.5*25.5*33.5mm
Product name:Single Phase Power Meter

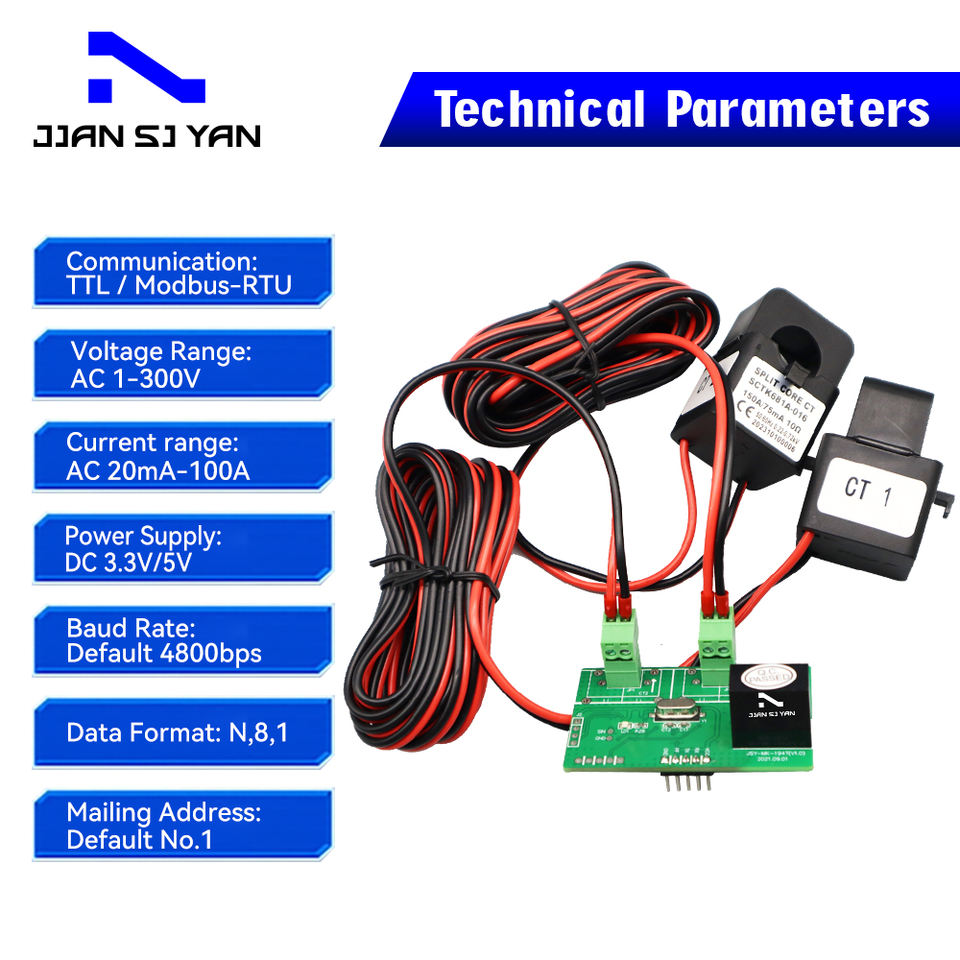

Voltage measurement range:1~300V
Current measurement range:30mA-100A with external open current transformer model optional
measurement accuracy:Voltage, current, power: ±1.0%; active power level 1
input resistance:Voltage channel>1KΩ/V
Power supply:DC 3.3V
Interface Type:TTL communication interface
Protocol:MODBUS-RTU protocol
Data Format:Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2"
Temperature drift:5-95%, no condensation (at 40℃)
Service
Custom design in 3 days
Key attributes
Phase
Single Phase
Output Voltage
220 V
Accuracy Class
±1.0%
Basic Current
100 A
Max. Current
100 A
Rated Current
0.05 A～100 A
Measuring Energy Range
30mA-100A
Operating Temperature
-20 ~ +60℃
Display Type
Digital Only
Application
Industrial, IOT, Household, Telecommunication, Electric Power
Feature
Safety, Light Weight, Eco-Friendly, Durable, Easy Installation
Brand Name
JSY-MK
Dimensions
68.5*25.5*33.5mm
Model Number
JSY-MK-194TK
Place of Origin
Guangdong, China
Product name
Single Phase Power Meter
Voltage measurement range
1~300V
Current measurement range
30mA-100A with external open current transformer model optional
measurement accuracy
Voltage, current, power: ±1.0%; active power level 1
input resistance
Voltage channel>1KΩ/V
Power supply
DC 3.3V
Interface Type
TTL communication interface
Protocol
MODBUS-RTU protocol
Data Format
Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2"
Temperature drift
5-95%, no condensation (at 40℃)
Packaging and delivery
Selling Units
Single item
Package size per batch
18X10X12 cm
Gross weight per batch
0.400 kg
