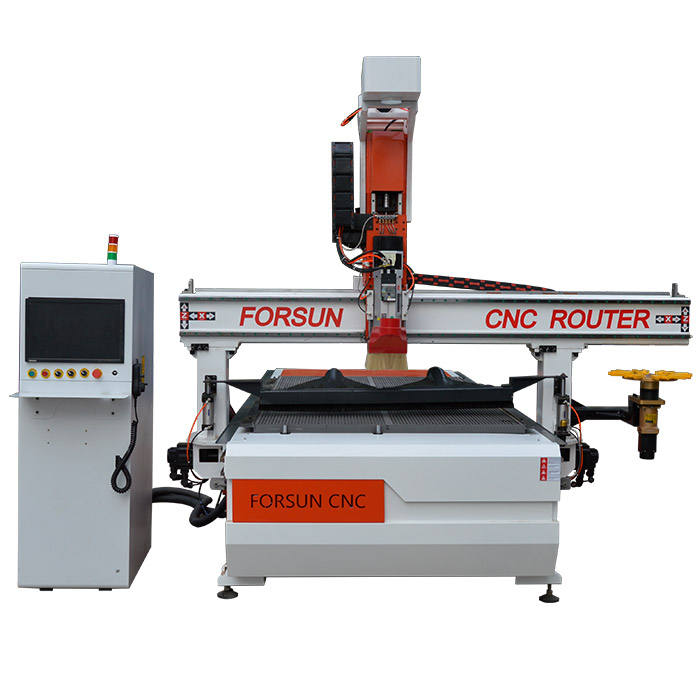

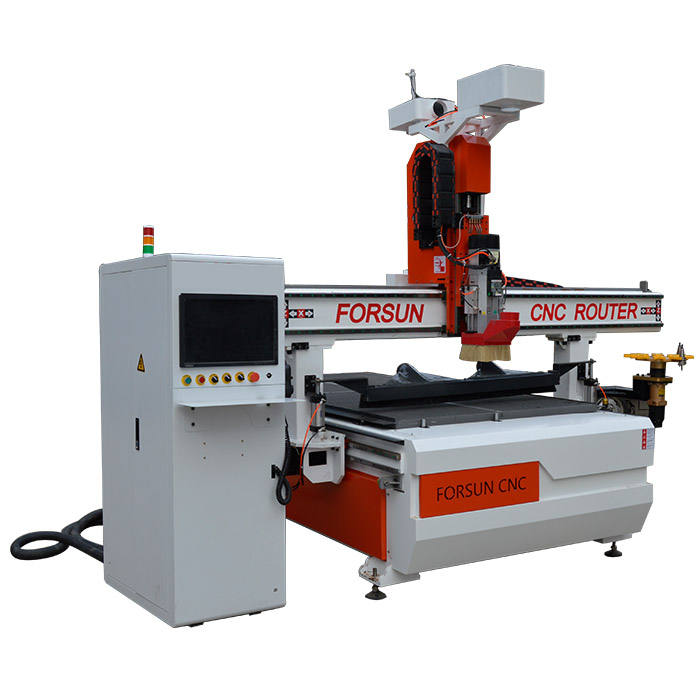

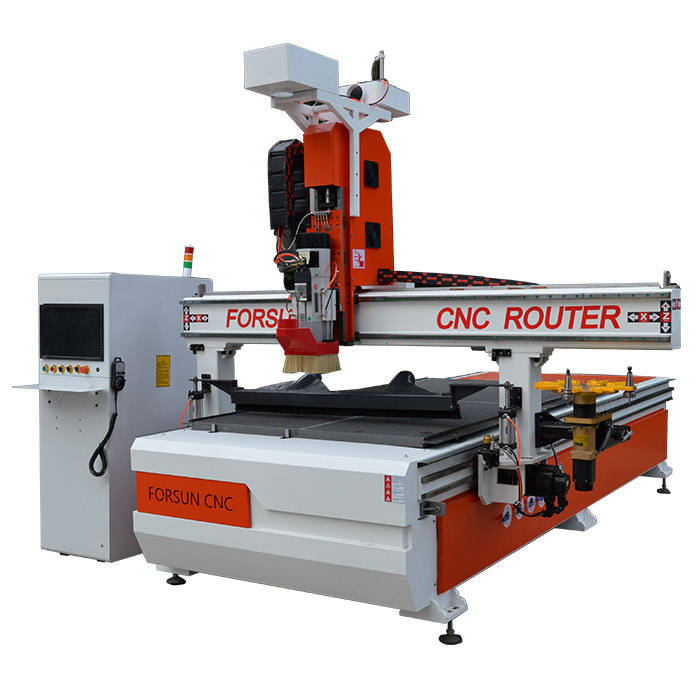

1325 ATC cnc router 2021 New Design car changer linear cnc furniture making machine
Store rating:4.8
(308 reviews)
Attributes
1300×2500Working Table Size(mm)
AC380V/50HZvoltage
CNC Routermachine type
SingleNo. of Spindles
Multifunctionalkey selling points
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcore components
warranty:1.5 year
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
Power (kW):9
weight (kg):2000
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.03 mm
travel (x axis)(mm):1300 mm
travel (y axis)(mm):2500 mm
repeatability (x/y/z) (mm):0.03 mm
Spindle Motor Power (kw):9
brand name:Forsun
dimension(l*w*h):3700*2200*1650mm
Product name:Multi-Purpose ATC CNC Router for Small Business at Home
Spindle:9KW ATC Spindle from Italy
Motor and driver:Siemens AC SERVO Motor and Driver
Inverter:Taiwan Delta inverter
Transmission in the X, Y axis:German Helical Rack and opinion
Guide rail:Taiwan HIWIN Linear Guide Rail
Control:Siemens controller
Key words:Multi-Purpose ATC CNC Router
Driving system:Japan Yaskawa Servo System
Transmission:Taiwan TBI Ball Screw
Key attributes
Working Table Size(mm)
1300×2500
voltage
AC380V/50HZ
machine type
CNC Router
No. of Spindles
Single
key selling points
Multifunctional
core components
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
warranty
1.5 year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
Power (kW)
9
weight (kg)
2000
range of spindle speed(r.p.m)
1 - 24000 rpm
positioning accuracy (mm)
0.03 mm
travel (x axis)(mm)
1300 mm
travel (y axis)(mm)
2500 mm
repeatability (x/y/z) (mm)
0.03 mm
Spindle Motor Power (kw)
9
brand name
Forsun
dimension(l*w*h)
3700*2200*1650mm
Product name
Multi-Purpose ATC CNC Router for Small Business at Home
Spindle
9KW ATC Spindle from Italy
Motor and driver
Siemens AC SERVO Motor and Driver
Inverter
Taiwan Delta inverter
Transmission in the X, Y axis
German Helical Rack and opinion
Guide rail
Taiwan HIWIN Linear Guide Rail
Control
Siemens controller
Key words
Multi-Purpose ATC CNC Router
Driving system
Japan Yaskawa Servo System
Transmission
Taiwan TBI Ball Screw
Packaging and delivery
Packaging Details
Standard export wooden cases
Port of dispatch
qingdao
Packaging examples
Supply capacity
Supply Ability
200 sets per Month
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
1 - 1 sets
$2,800
>= 2 sets
$2,500
Variations
Select nowmodel number
FS1325C
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
