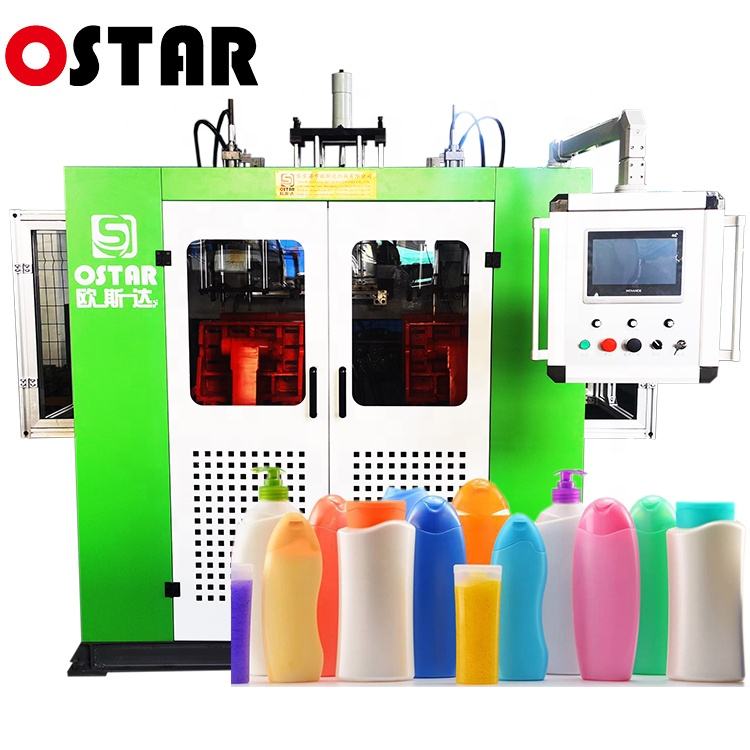

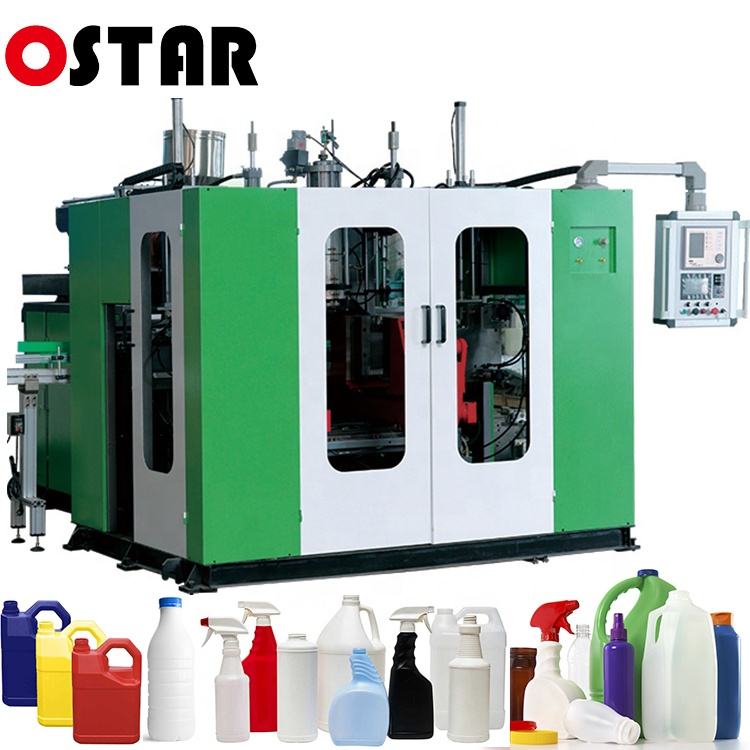

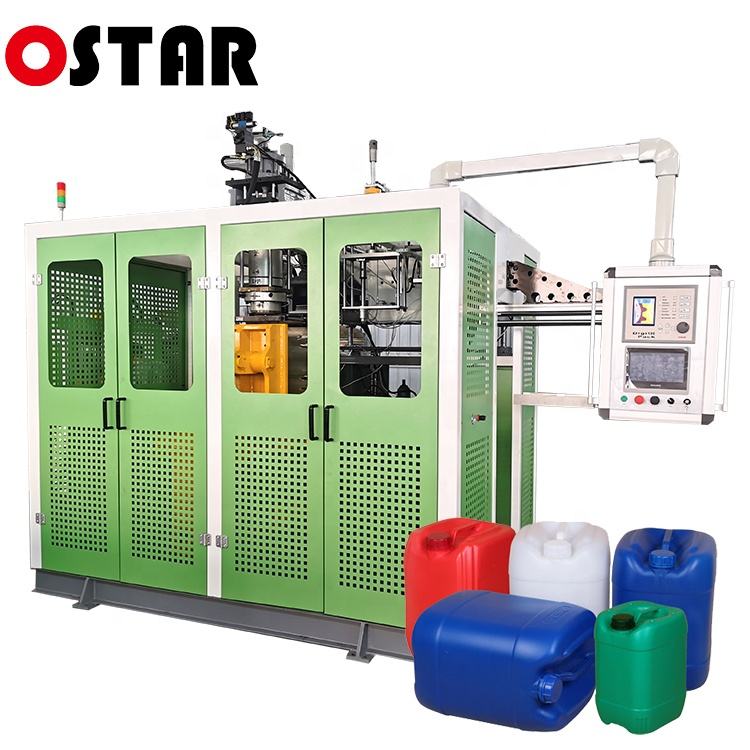

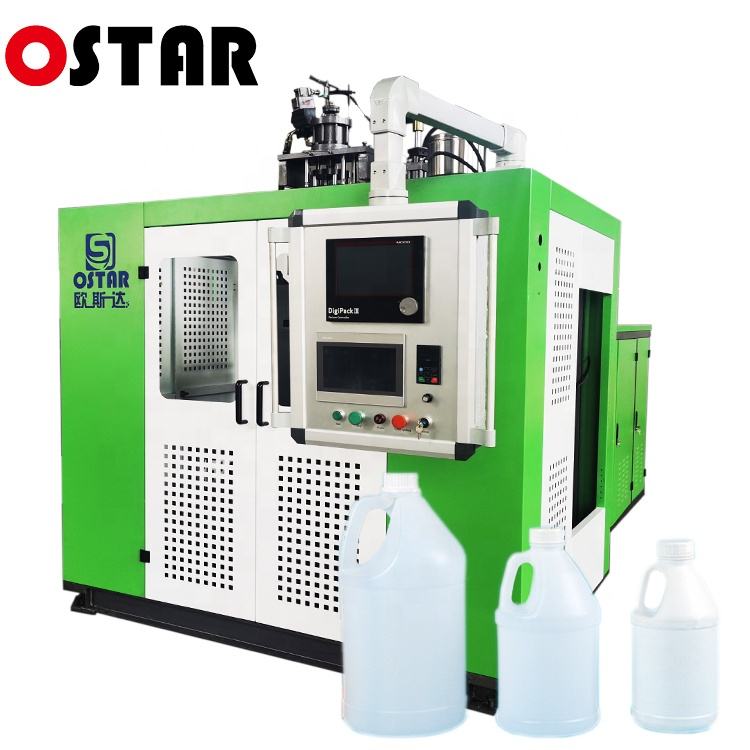

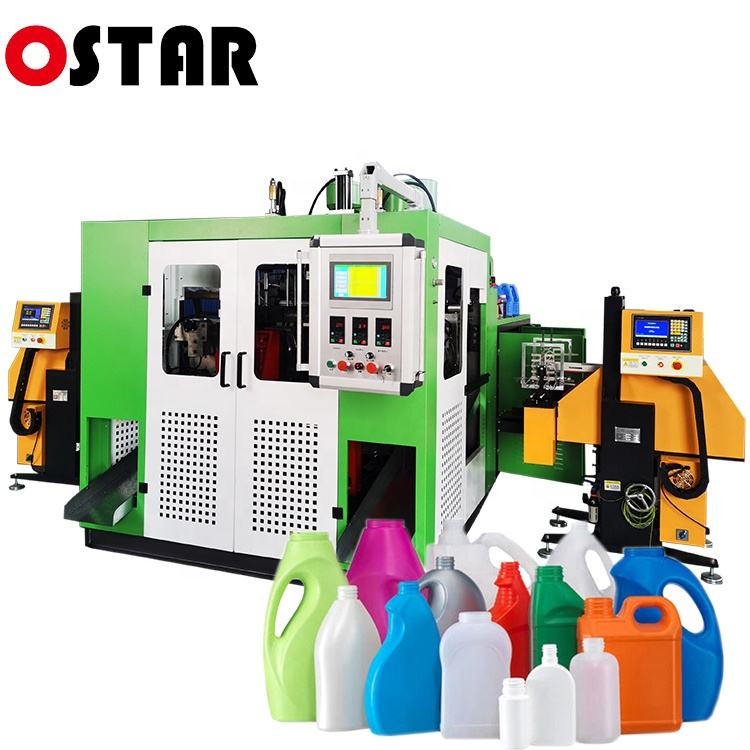

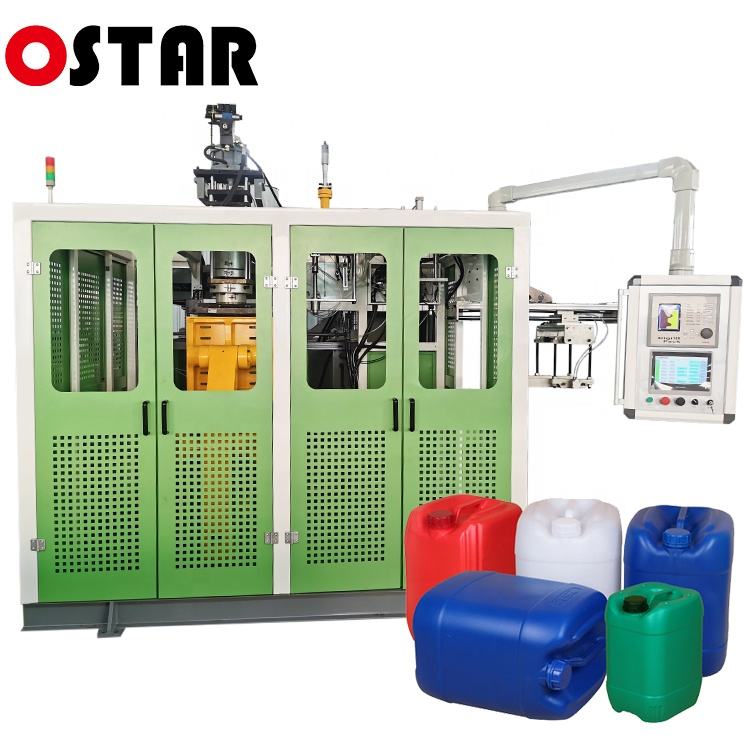

200 500 1000ml Hdpe pp Pehd Pvc Milk Yogurt Bottle Container Extrusion Blowing Blow Moulding Molding Machine Price
5.0(7 reviews)1 sold#10Most Popular in Drum Blow Molding MachinesComplies with EU standards
Complies with EU standards
Attributes
PVC, PE, PE/PP, HDPE/PPplastic processed
40Clamping Force (kN)
380Vvoltage
Automaticautomation
3No. of Screw Heating Zone
Mitsubishiplc brand
output (kg/h):35 kg/h
place of origin:Jiangsu, China
power (kw):5.5
weight (t):3.2
video outgoing-inspection:Provided
machinery test report:Provided
core components:PLC, Engine, Gearbox, Motor, Pump
brand name:OSTAR
dimension(l*w*h):3.2X1.7X2.5M
Screw L/D Ratio:22
screw diameter (mm):50 mm
screw heating power(kw):4.2 kW
extruder motor power(kw):11 kW
mold platen size(width)(mm):300 mm
mold platen size(height)(mm):335 mm
air pressure(mpa):0.6 MPa
air comsumption(m³/min):0.4 m³/min
die head heating power(kw):5.2 kW
key selling points:Competitive Price
warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas
Blow Moulding Type:Extrusion Blow Moulding
Automatic:Yes
Suitable bottle:100-2000ml Bottle
Product name:Bottle Blow Molding Machine
Key words:hdpe milk bottle blow molding machine
Advantages:high speed high efficiency
material application:PP PE PVC ABS...
Application:bottles drums jerrycan
energy saving:servo motor system
Product spotlightsMax Product Volume: The machine can produce bottles with a maximum volume of 2 liters, suitable for a wide range of container sizes.
Clamping Force: A clamping force of 40 kN ensures tight mold locking, resulting in better finished product surface quality.
Screw Heating Zone: Three heating zones for the screw provide precise temperature control, ensuring consistent material processing and high-quality output.
Service
On-site service & free replacement parts
Key attributes
plastic processed
PVC, PE, PE/PP, HDPE/PP
Clamping Force (kN)
40
voltage
380V
automation
Automatic
No. of Screw Heating Zone
3
plc brand
Mitsubishi
core components
PLC, Engine, Gearbox, Motor, Pump
warranty
1 Year
key selling points
Competitive Price
machinery test report
Provided
video outgoing-inspection
Provided
output (kg/h)
35 kg/h
place of origin
Jiangsu, China
power (kw)
5.5
weight (t)
3.2
brand name
OSTAR
dimension(l*w*h)
3.2X1.7X2.5M
Screw L/D Ratio
22
screw diameter (mm)
50 mm
screw heating power(kw)
4.2 kW
extruder motor power(kw)
11 kW
mold platen size(width)(mm)
300 mm
mold platen size(height)(mm)
335 mm
air pressure(mpa)
0.6 MPa
air comsumption(m³/min)
0.4 m³/min
die head heating power(kw)
5.2 kW
After-sales Service Provided
Engineers available to service machinery overseas
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Suitable bottle
100-2000ml Bottle
Product name
Bottle Blow Molding Machine
Key words
hdpe milk bottle blow molding machine
Advantages
high speed high efficiency
material application
PP PE PVC ABS...
Application
bottles drums jerrycan
energy saving
servo motor system
Packaging and delivery
Packaging Details
Standard Ocean shipment
bottle extrusion blow molding machine blow molding machine HDPE blow molding machine
Port of dispatch
SHANGHAI
Selling Units
Single item
Supply capacity
Supply Ability
100 sets per Month bottle extrusion blow moulding molding machine price
Lead time
Customization options
Customized logo(+ from /Min. order: 1 set)
Customized packaging(+ from /Min. order: 1 set)
Graphic customization(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 1 sets
$30,000
2 - 4 sets
$29,500
5 - 9 sets
$28,800
>= 10 sets
$20,600
Variations
Select nowproduction capacity (bph): 200-500
200-500
max.product volume (l)
2
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
