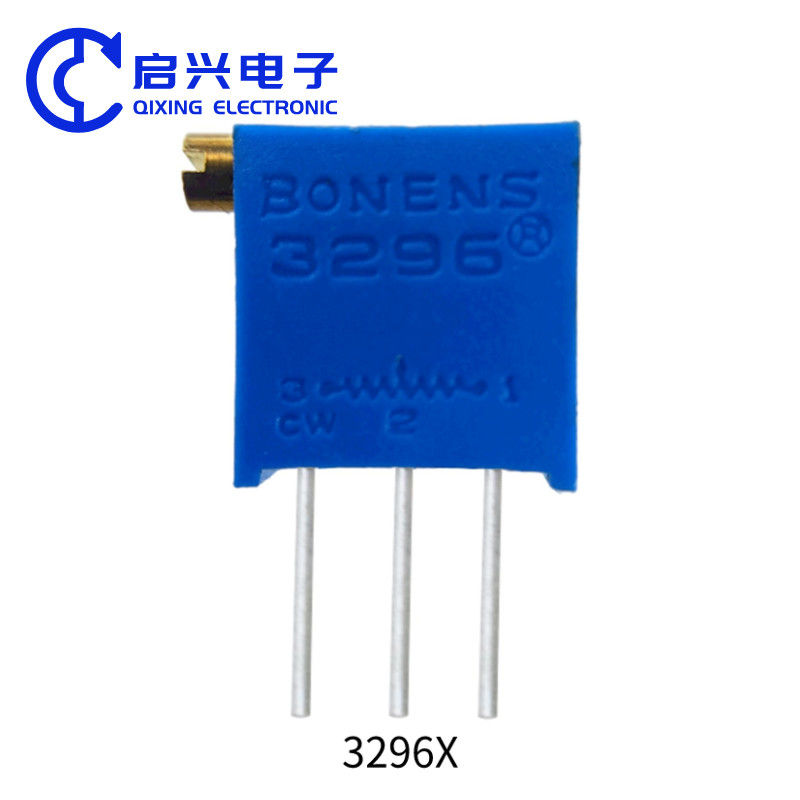

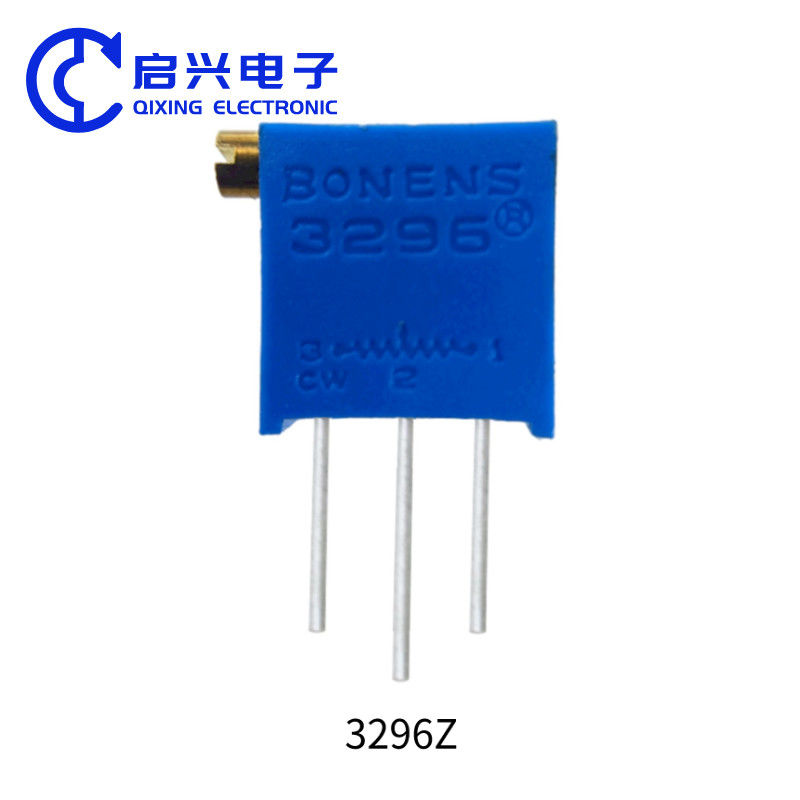

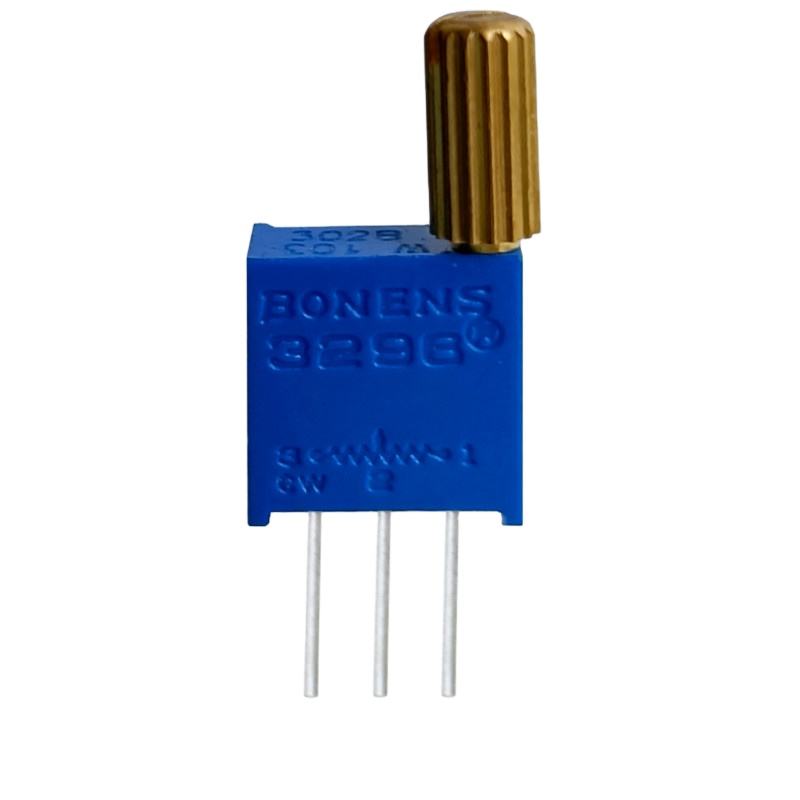

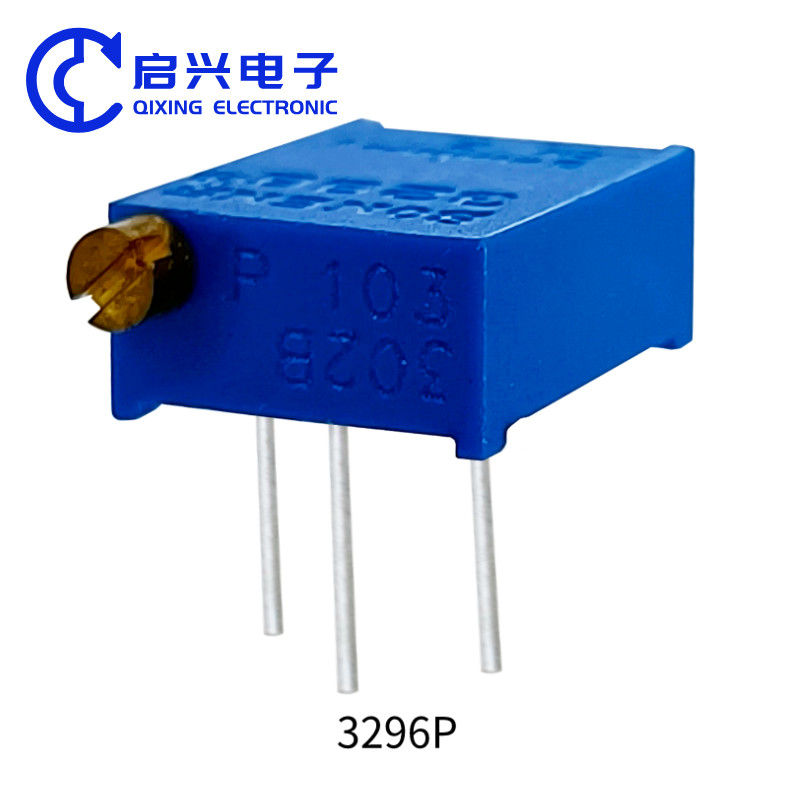

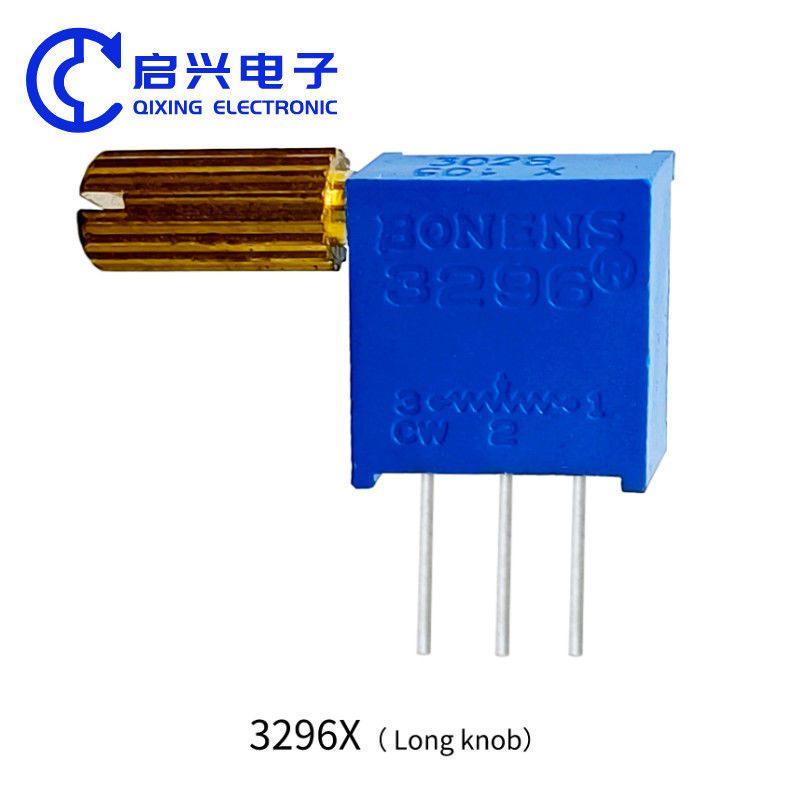

3296W 8.2 long worm knob trimmer potentiometer
Store rating:5.0
(67 reviews)#15 most popular in Trimmer Potentiometers
Attributes
BonensBrand Name
3296WModel Number
plastic pipePackaging Type
302BManufacturing Date Code
Sichuan, ChinaPlace of Origin
Multi-turn adjustable potentiometerDescription
Resistance:10Ω~5MΩ
Resistance Tolerance:±10%
Specification:3296W\3296Z\3296Y\3296X\3296P
Application:Communication equipment, electrical equipment
Package / Case:plastic
Series:3296 series
Features:Multi-turn
Size / Dimension:10*9.6mm
Range of nominal resistance:10Ω~5MΩ
Resistance tolerance:±10%
Terminal resistance:≤±1%R or 2Ω
Contact resistance variation (CRV):≤±1%R or 3Ω
Insulation resistance:≥ 1GΩ (100V AC)
Rated power:0.5W ( 300V max)
Temperature range:-55°C~+125°C
TCR:±250*10-6/°C
Standard package 1:50 pcs /tube(3296W,3296Y)
Standard package 2:40 pcs /tube(3296X,3296Z,3296P)
Key attributes
Brand Name
Bonens
Model Number
3296W
Packaging Type
plastic pipe
Manufacturing Date Code
302B
Place of Origin
Sichuan, China
Description
Multi-turn adjustable potentiometer
Resistance
10Ω~5MΩ
Resistance Tolerance
±10%
Specification
3296W\3296Z\3296Y\3296X\3296P
Application
Communication equipment, electrical equipment
Package / Case
plastic
Series
3296 series
Features
Multi-turn
Size / Dimension
10*9.6mm
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Rated power
0.5W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250*10-6/°C
Standard package 1
50 pcs /tube(3296W,3296Y)
Standard package 2
40 pcs /tube(3296X,3296Z,3296P)
