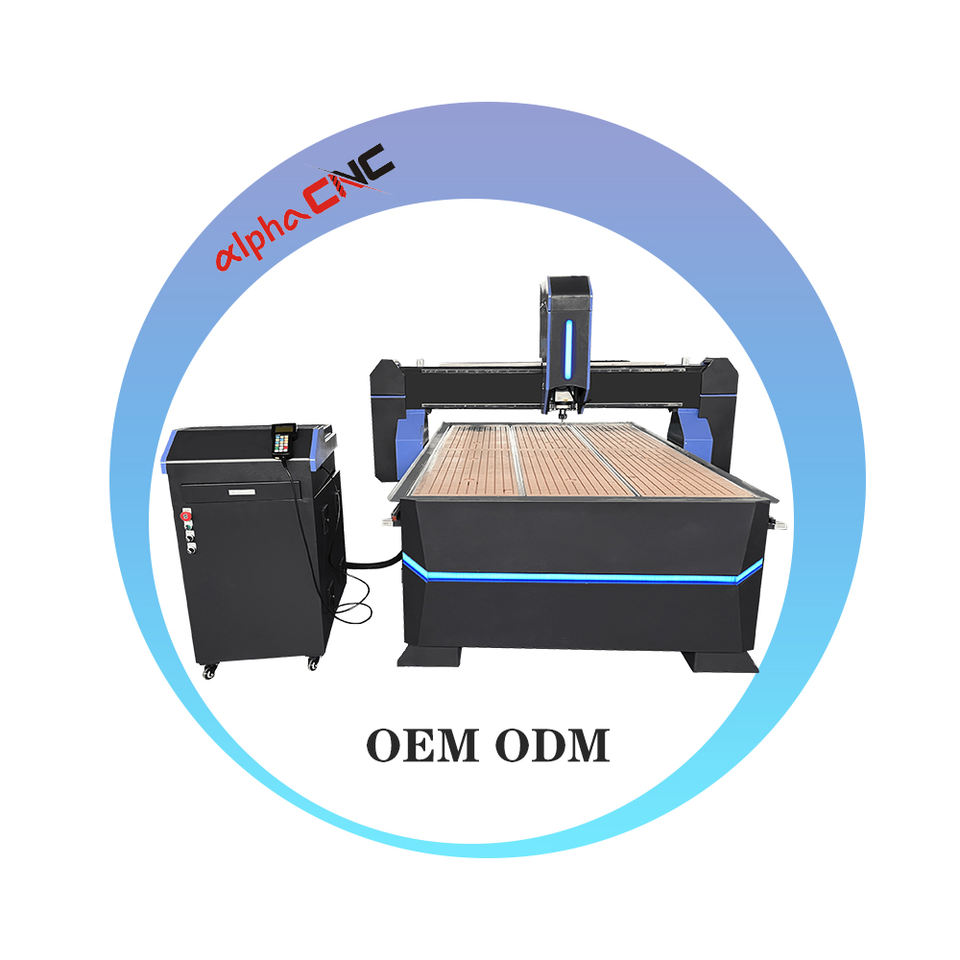

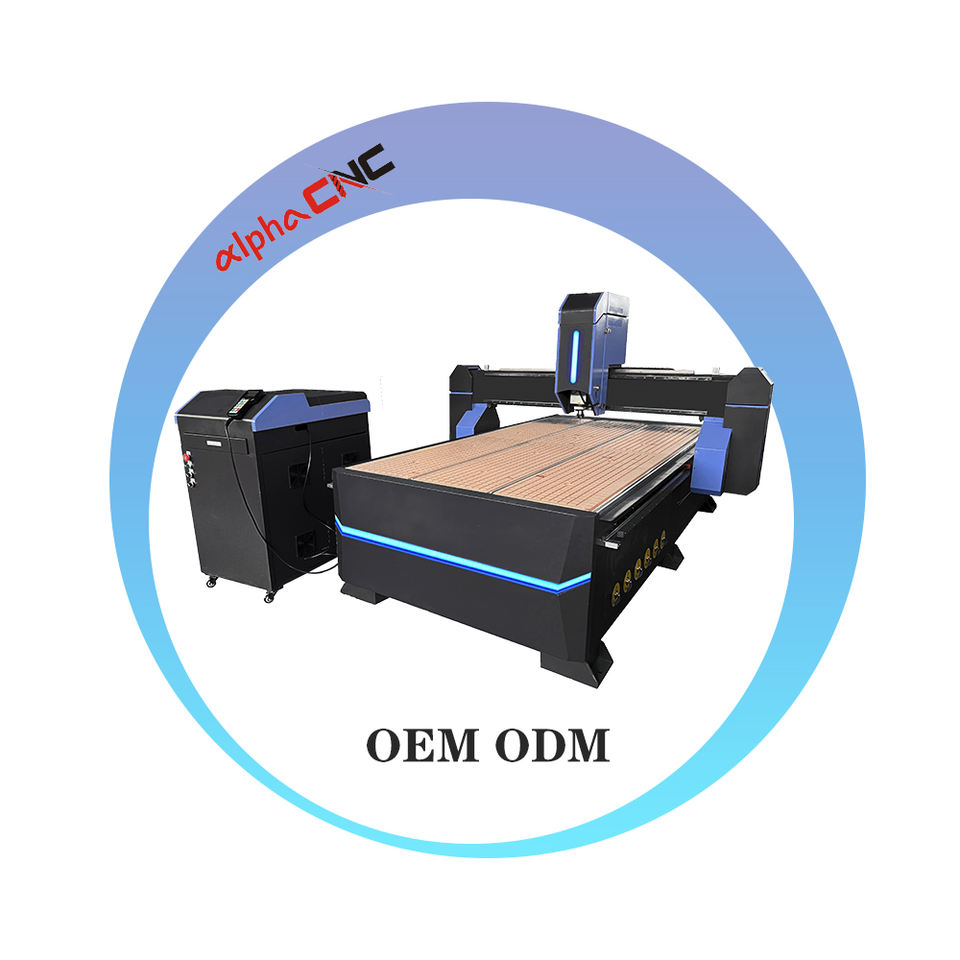

3kw 3d Wood CNC Router 4'x 8'Solid Carpenter Wood Carving Engraving Cutting Machine Sculpture for Wood
Store rating:5.0
(425 reviews)Complies with EU standards
Complies with EU standards
Attributes
1300×2500Working Table Size(mm)
3number of axes
220V/380V/110V/120V/480V/430Vvoltage
CNC Routermachine type
SingleNo. of Spindles
Energy Savingkey selling points
cnc or not:CNC
place of origin:Shandong, China
Power (kW):3
weight (kg):1500
warranty:2 Years
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.02 mm
travel (x axis)(mm):1300 mm
travel (y axis)(mm):2500 mm
repeatability (x/y/z) (mm):0.02 mm
Spindle Motor Power (kw):3-6kw for option
brand name:Alpha
dimension(l*w*h):3200*1840*1900mm
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor, Gear, Engine, Gearbox
Control system:DSP (Mach 3, Mach 4, Nc-studio for option)
Application:MDF/ WOOD /ACRYLIC / SOFT METAL
Motor:Stepper motor, hybrid servo, servo motor for option
Spindle power:3
CNC Router working Size:1300*2500mm
Accuracy:±0.03mm
Collet:ER25
Spindle speed:0-24000RPM

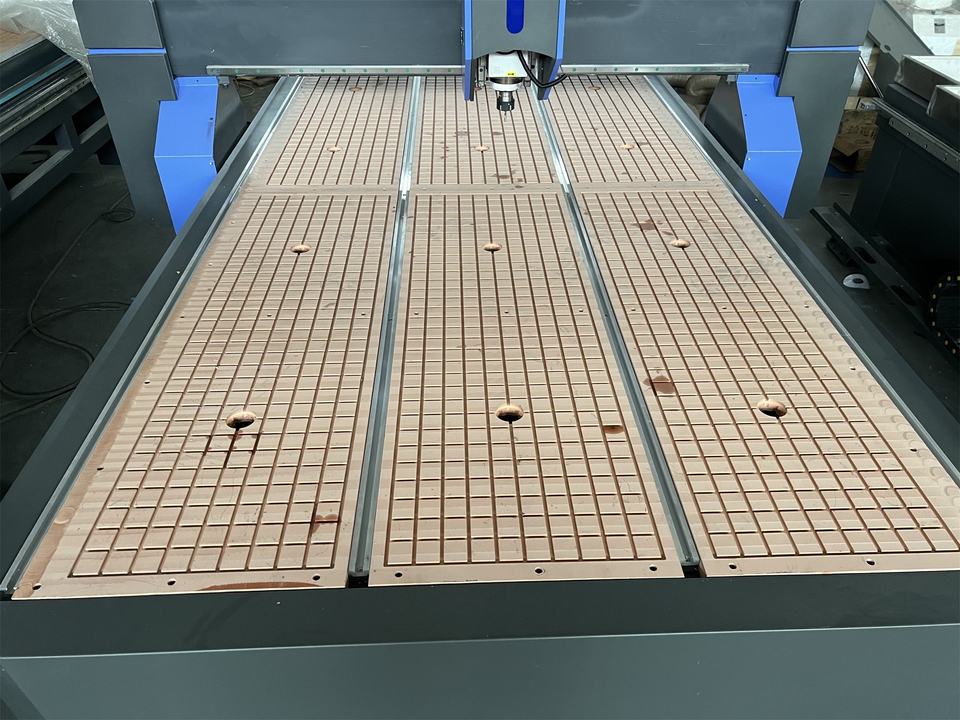

Table:T-slot or Vacuum
Keywords:cnc router with vacuum table
Service
Free replacement parts & online technical support
Key attributes
Working Table Size(mm)
1300×2500
number of axes
3
voltage
220V/380V/110V/120V/480V/430V
machine type
CNC Router
No. of Spindles
Single
key selling points
Energy Saving
core components
Motor, Gear, Engine, Gearbox
warranty
2 Years
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
Power (kW)
3
weight (kg)
1500
range of spindle speed(r.p.m)
1 - 24000 rpm
positioning accuracy (mm)
0.02 mm
travel (x axis)(mm)
1300 mm
travel (y axis)(mm)
2500 mm
repeatability (x/y/z) (mm)
0.02 mm
Spindle Motor Power (kw)
3-6kw for option
brand name
Alpha
dimension(l*w*h)
3200*1840*1900mm
Control system
DSP (Mach 3, Mach 4, Nc-studio for option)
Application
MDF/ WOOD /ACRYLIC / SOFT METAL
Motor
Stepper motor, hybrid servo, servo motor for option
Spindle power
3
CNC Router working Size
1300*2500mm
Accuracy
±0.03mm
Collet
ER25
Spindle speed
0-24000RPM
Table
T-slot or Vacuum
Keywords
cnc router with vacuum table
Packaging and delivery
Selling Units
Single item
Single package size
215X300X180 cm
Single gross weight
1500.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1 set)
Customized packaging(+ from /Min. order: 1 set)
Graphic customization(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Customizable
1 - 2 sets
$2,400
>= 3 sets
$1,700
Sample price: $4,800
Variations
Select nowmodel number
ABS-1325
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
