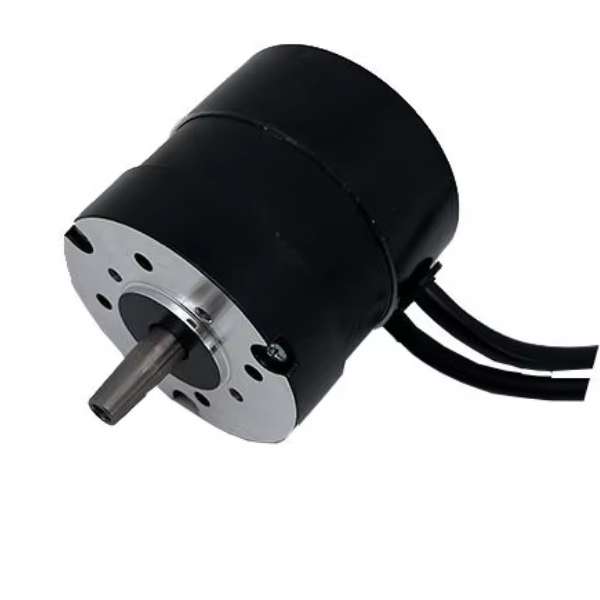

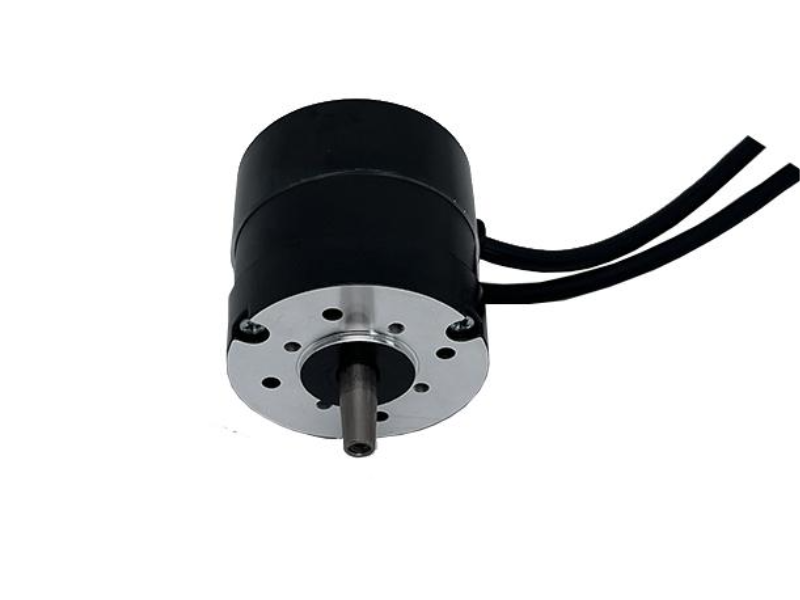

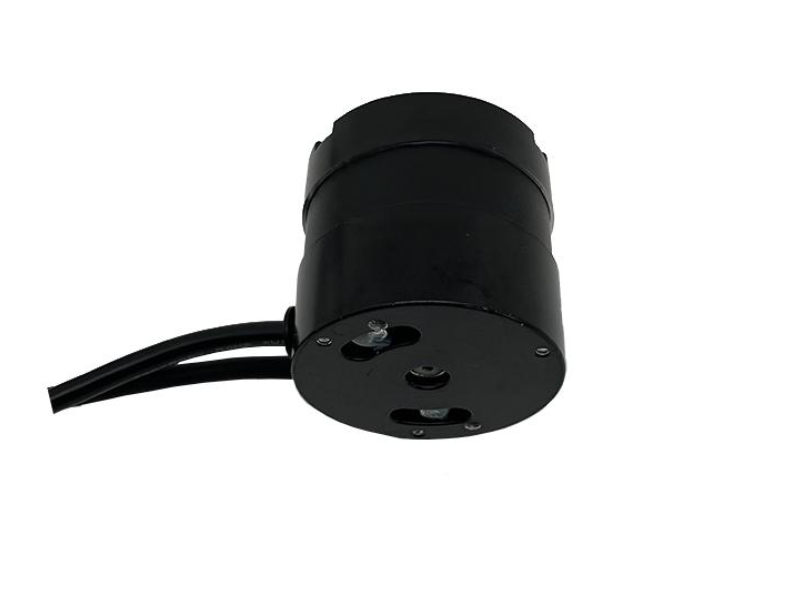

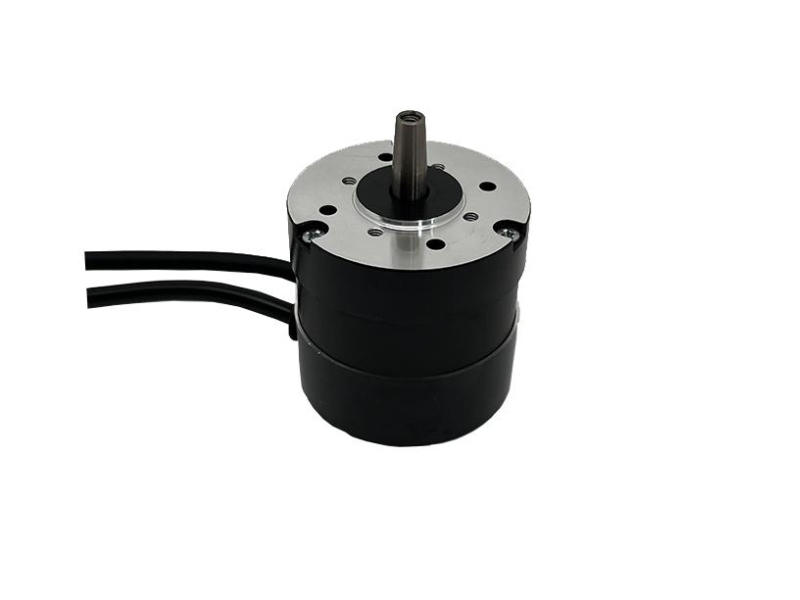

57BLR Series 150w Small Volume BLDC Motor Long Service Life Brushless DC Motor for Automobiles

See store reviewsComplies with EU standards

Shanghai Goldgun M&E Hi-Tech Co., Ltd.

7 yrs

CN

Attributes

BrushlessCommutation

Dc 24VRated voltage

150WRated Power

3 000 RPMSpeed Rpm

3000RPMSpeed(RPM)

IP40IP Rating

Efficiency:IE 1

Type:Brushless Motor

Construction:Permanent Magnet

Frame:57mm

Motor Mounting Type:Flange Mount

Protect Feature:Dustproof

Usage:Home Appliance, Smart Home, Boat, Electric Bicycle, Car, Fan

Warranty:12 months

Continuous Current(A):6A

Model Number:57BLDC

Torque:0.47N.m

Place of Origin:Shanghai, China

Brand Name:GOLDGUN

Winding type:Star/Delta

Hall effect angle:120 degree

Shaft runout:0.025mm

Radial play:0.06mm/50g

End play:0.08mm/50g

Max radial force:75N/20mm from the flange

Max axial force:15N

Insulation class:Class B

Dielectric strength:500VDC for one minute

Insulation resistance:100MΩmin 500VDC

Key attributes

Commutation

Brushless

Rated voltage

Dc 24V

Rated Power

150W

Speed Rpm

3 000 RPM

Speed(RPM)

3000RPM

IP Rating

IP40

Efficiency

IE 1

Type

Brushless Motor

Construction

Permanent Magnet

Frame

57mm

Motor Mounting Type

Flange Mount

Protect Feature

Dustproof

Usage

Home Appliance, Smart Home, Boat, Electric Bicycle, Car, Fan

Warranty

12 months

Continuous Current(A)

6A

Model Number

57BLDC

Torque

0.47N.m

Place of Origin

Shanghai, China

Brand Name

GOLDGUN

Winding type

Star/Delta

Hall effect angle

120 degree

Shaft runout

0.025mm

Radial play

0.06mm/50g

End play

0.08mm/50g

Max radial force

75N/20mm from the flange

Max axial force

15N

Insulation class

Class B

Dielectric strength

500VDC for one minute

Insulation resistance

100MΩmin 500VDC

Packaging and delivery

Selling Units

Single item

Single package size

18X12X18 cm

Single gross weight

6.000 kg

Lead time

Product descriptions from the supplier

1 - 20 sets

$1760

21 - 100 sets

$1410

101 - 500 sets

$1370

>= 501 sets

$1340

Variations

Voltage(V): 24V

24V

Output Power: 150w

150w

Speed of Revolution

3000rpm

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization
