7530 Electric air Blower Fan 75mm 3500RPM 75x30mm DC 12V 24V Turbo Fan Brushless Centrifugal Fan for Thermal Management Solution
Store rating:4.7
(3 reviews)1 sold#9Most Popular in DC Brushless Fans (BLDC)
Attributes
ChinaPlace of Origin
SYD/OEMBrand Name
SYD7530HBL/SLModel Number
The auxiliary air supply for firewood stoves, barbecue grills, and waste oil furnaces to enhance combustion efficiencyApplication

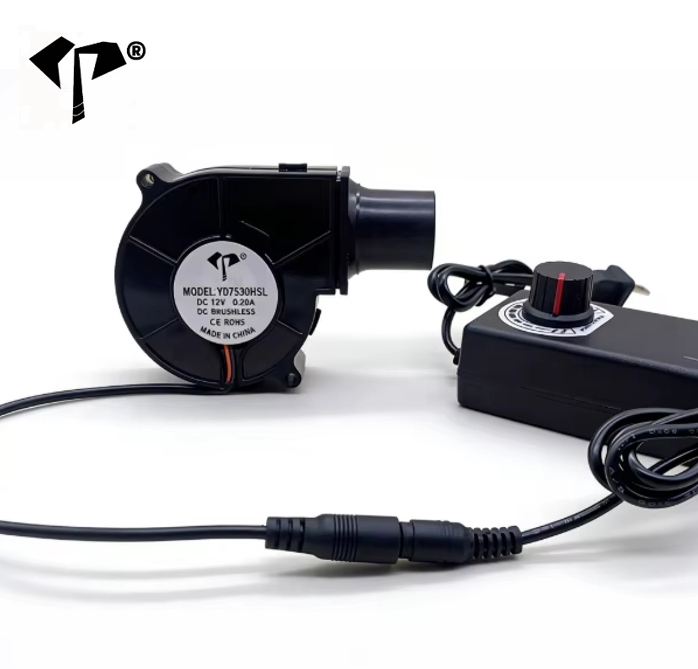

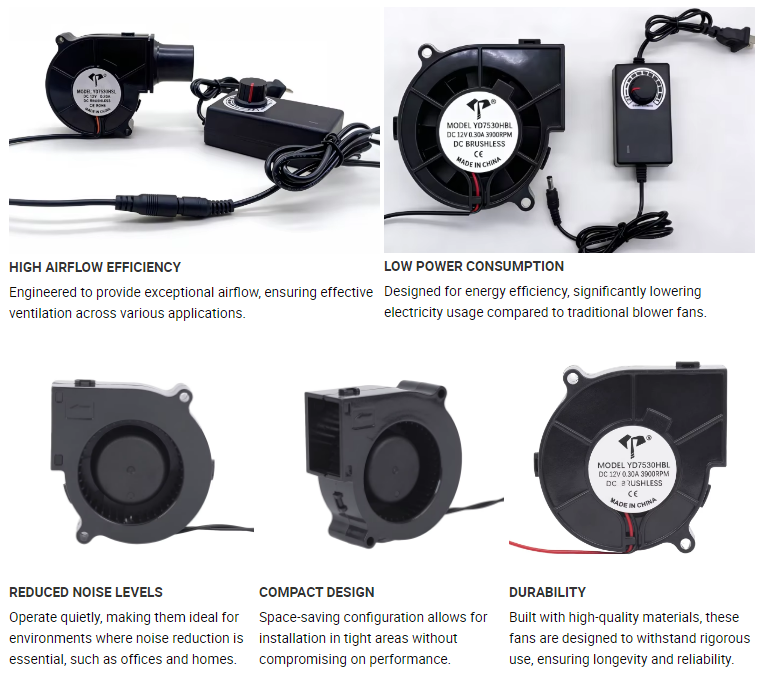

75x75x30mm DC brushless turbo blower fan features a compact design, high static pressure, low noise, long lifespan, and comes with an adjustable speed controller for precise airflow control.Description
2000RPM, 2500RPM, 3000RPM, 3500RPMRPM
Power (Watts):1.56~5.76W
Voltage - Rated:5V, 12V, 24V
Fan static pressure:5.19~15.91mmH2O
Series:DC Brushless Blower Fan
Size / Dimension:75*73*30mm
Current Value:0.09~0.45A
Bearing Type:Sleeve/Ball
Air Flow:7.49~13.11CFM
Noise Level:25.80~42.80dBA
Material:Plastic

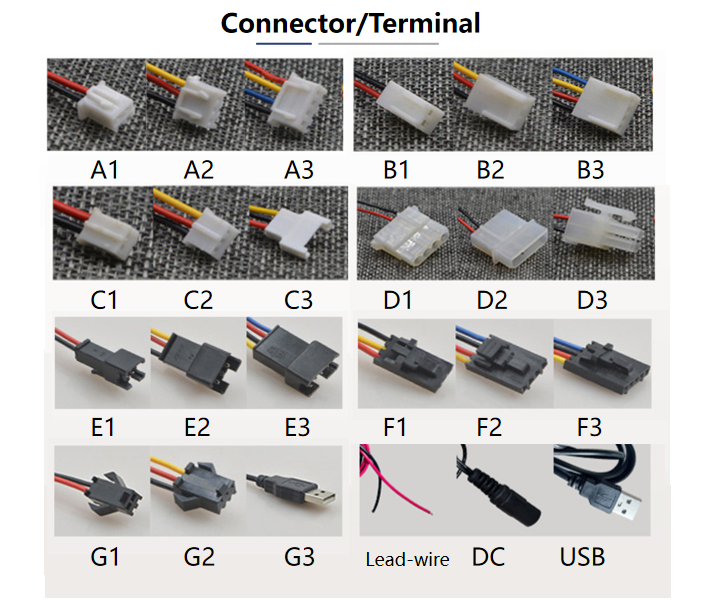

Connector/Terminal:Customized (Default: None)
Customized Service:Logo/Speed/Current/Wire Length/Connector/Material/Size/IP ratings
Certification:CE, FCC,RoHS,ISO:9001,etc
Operation Temperature:-10℃~70℃ 35%~85%RH
Available Features(Optional):Tachometer Output/ Rotation Detector/PWM
Key attributes
Place of Origin
China
Brand Name
SYD/OEM
Model Number
SYD7530HBL/SL
Application
The auxiliary air supply for firewood stoves, barbecue grills, and waste oil furnaces to enhance combustion efficiency
Description
75x75x30mm DC brushless turbo blower fan features a compact design, high static pressure, low noise, long lifespan, and comes with an adjustable speed controller for precise airflow control.
RPM
2000RPM, 2500RPM, 3000RPM, 3500RPM
Power (Watts)
1.56~5.76W
Voltage - Rated
5V, 12V, 24V
Fan static pressure
5.19~15.91mmH2O
Series
DC Brushless Blower Fan
Size / Dimension
75*73*30mm
Current Value
0.09~0.45A
Bearing Type
Sleeve/Ball
Air Flow
7.49~13.11CFM
Noise Level
25.80~42.80dBA
Material
Plastic
Connector/Terminal
Customized (Default: None)
Customized Service
Logo/Speed/Current/Wire Length/Connector/Material/Size/IP ratings
Certification
CE, FCC,RoHS,ISO:9001,etc
Operation Temperature
-10℃~70℃ 35%~85%RH
Available Features(Optional)
Tachometer Output/ Rotation Detector/PWM
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 1,000 units)
Customized packaging(+ from /Min. order: 1,000 units)
Function customization(+ from /Min. order: 1,000 units)
View details
Product descriptions from the supplier
Customizable
1 - 999 units
$250
1,000 - 2,999 units
$238
3,000 - 4,999 units
$210
>= 5,000 units
$196
Variations
Select nowType: 5V/12V/24V Sleeve/Ball Bearing
5V/12V/24V Sleeve/Ball Bearing
Width
75*73*30mm
Customization options
Customized logo (Min. order: 1,000 units)
Customized packaging (Min. order: 1,000 units)
Function customization (Min. order: 1,000 units)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
