8000N 20000N 40000N 50000N 60000N 12V 24V 36V 48V 110V 220V Industrial Electric Hydraulic Linear Actuator Push Rod Heavy Duty

5.0(1 review)2 sold#11Most Popular in DC Linear Actuators

Henan Hyway Industrial Equipment Co., Ltd.

7 yrs

CN

Attributes

BrushCommutation

Can be CustomizedRated Power

3 000 RPMSpeed Rpm

High SpeedSpeed(RPM)

IE 4Efficiency

Brush MotorType

Construction:Permanent Magnet

Frame:Can be Customized

Motor Mounting Type:Flange Mount

Protect Feature:Waterproof

Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance

Warranty:3Years

Continuous Current(A):Current

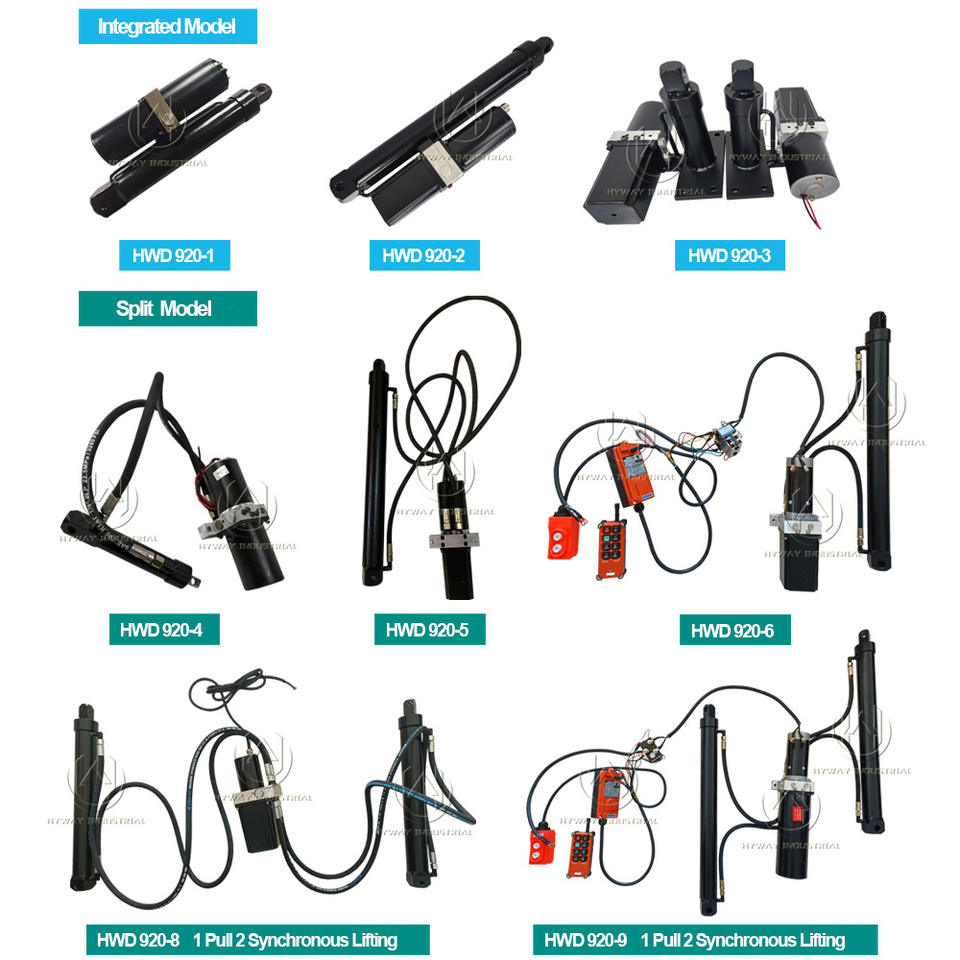

Model Number:HWD920

Torque:High Torque

Place of Origin:Henan, China

Brand Name:Hyway

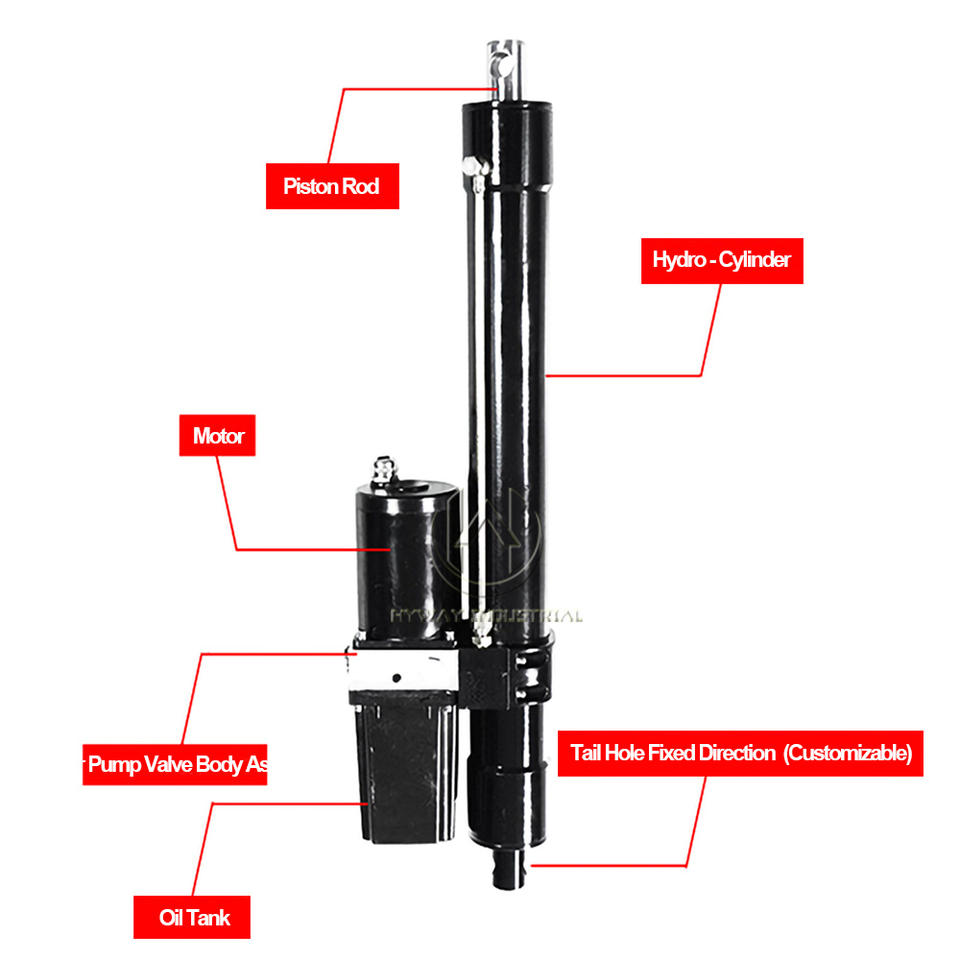

Name:Electric Hydraulic Cylinder Linear Actuator

Input Voltage:12V /24V/36V/48V60V/72V DC,110V /220V AC,380-430V 3 Phase

Max.load:6000-60000N

Stroke:150-2000mm Customized

Power:300W/800W/1200W/2200W

Speed:7-14mm/s,14-28mm/s,24-45mm/s

Protection Grade:IP67 / -30℃-70℃

Type of duty:S2-10min (2 minutes work, 18 minutes rest)

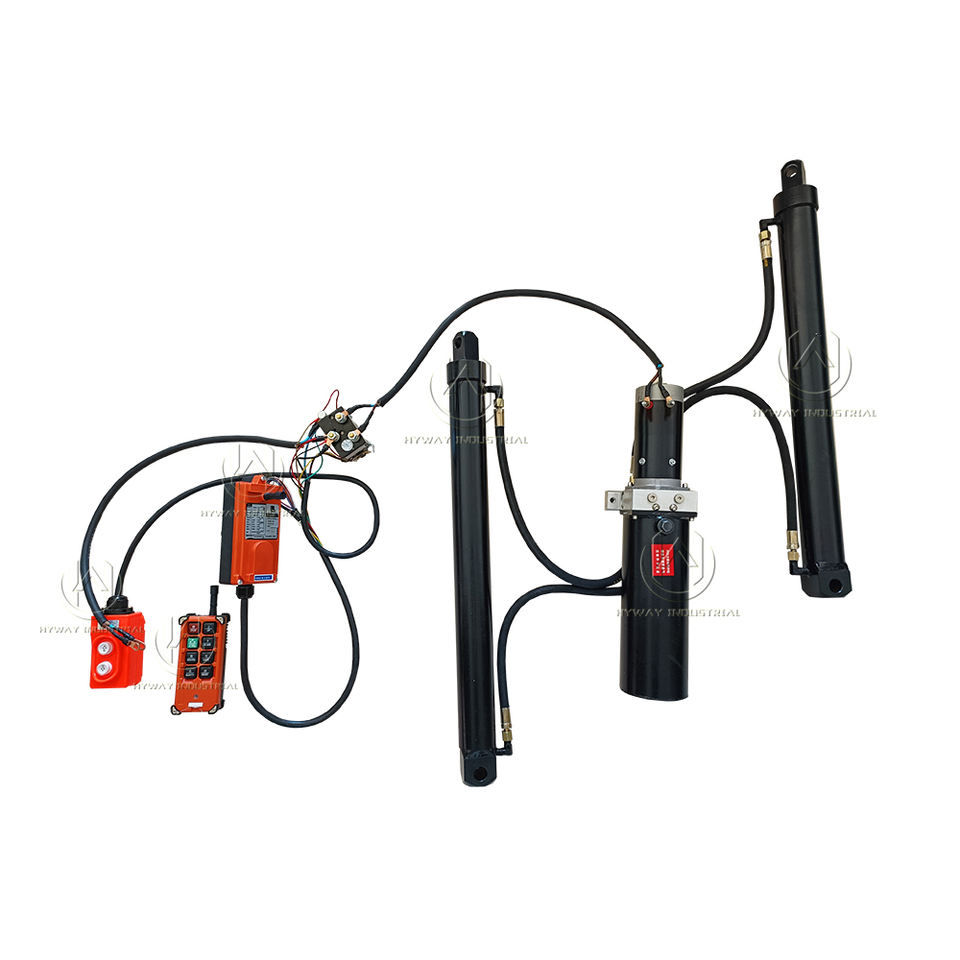

Control System:Remote Controller & Wired Controller (Optional)

Product spotlights

Load Capacity: A wide range of load capacities from 6000N to 60000N ensures suitability for various high-load applications, such as agricultural machinery and industrial equipment.

Stroke Range: Customizable stroke lengths from 150mm to 2000mm allow for precise adjustments, making it versatile for different operational requirements.

Input Voltage: Support for a broad range of input voltages (12V-72V DC, 110V-220V AC, 380-430V 3 Phase) provides flexibility in power supply options, suitable for diverse electrical systems.

Waterproof Grade: IP67 waterproof rating ensures reliable performance in harsh environments, protecting the actuator from dust and water ingress, thus extending its lifespan.

Key attributes

Commutation

Brush

Rated Power

Can be Customized

Speed Rpm

3 000 RPM

Speed(RPM)

High Speed

Efficiency

IE 4

Type

Brush Motor

Construction

Permanent Magnet

Frame

Can be Customized

Motor Mounting Type

Flange Mount

Protect Feature

Waterproof

Usage

Boat, Car, Electric Bicycle, Fan, Home Appliance

Warranty

3Years

Continuous Current(A)

Current

Model Number

HWD920

Torque

High Torque

Place of Origin

Henan, China

Brand Name

Hyway

Name

Electric Hydraulic Cylinder Linear Actuator

Input Voltage

12V /24V/36V/48V60V/72V DC,110V /220V AC,380-430V 3 Phase

Max.load

6000-60000N

Stroke

150-2000mm Customized

Power

300W/800W/1200W/2200W

Speed

7-14mm/s,14-28mm/s,24-45mm/s

Protection Grade

IP67 / -30℃-70℃

Type of duty

S2-10min (2 minutes work, 18 minutes rest)

Control System

Remote Controller & Wired Controller (Optional)

Warranty

2 Years

Packaging and delivery

Selling Units

Single item

Single package size

50X30X30 cm

Single gross weight

25.000 kg

Lead time

Customization options

IP Rating(+ from /Min. order: 1 piece)

View details

Product descriptions from the supplier

FREE shipping capped at $20

1 - 9 pieces

$165

10 - 29 pieces

$160

30 - 99 pieces

$155

>= 100 pieces

$150

*Taxes and import charges will be calculated at checkout

Variations

Rated voltage: Dc 12V

Dc 12V

Dc 24V

48 V DC

72 V DC

DC 60V

110V AC / 220V AC

380V-430V AC 3Phase

Output Power: 300W/800W/1200W/2200W

300W/800W/1200W/2200W

Speed of Revolution

2900r/min
