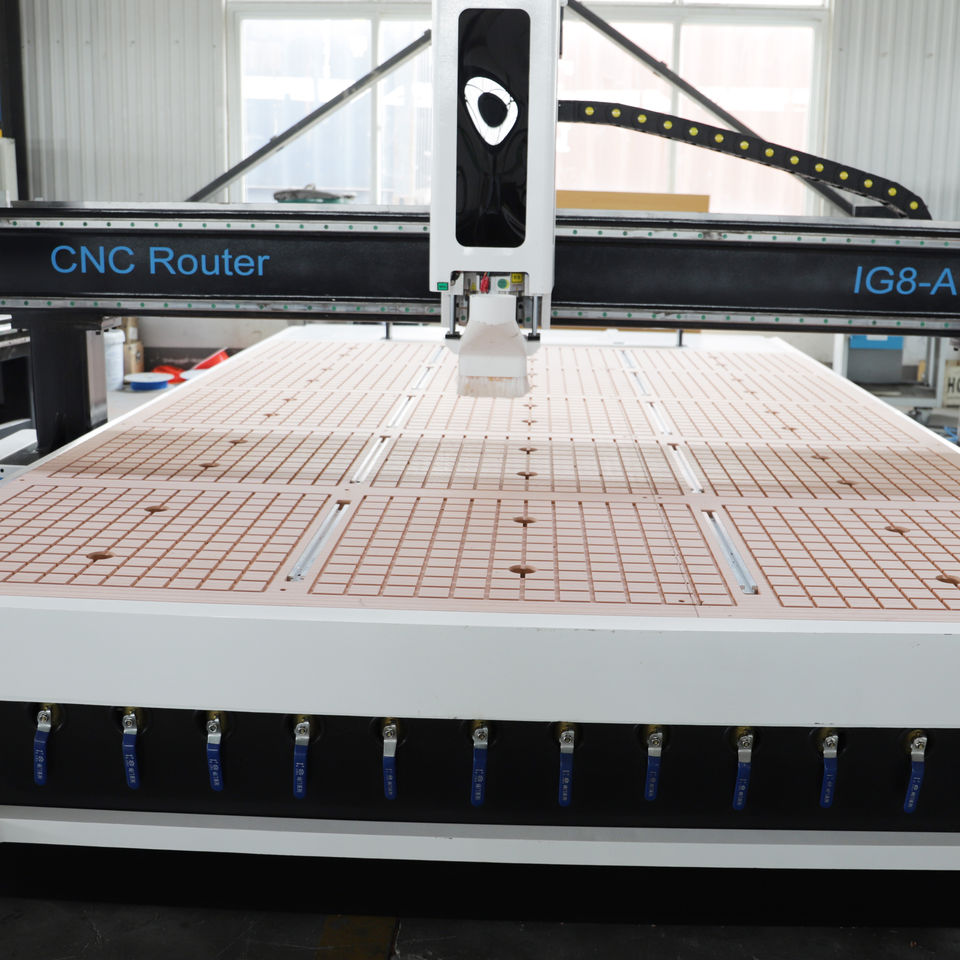

ATC CNC Router for Wooden Mantelpieces Fireplace Surrounds and Hearth Trims
Store rating:5.0
(280 reviews)
Attributes
4number of axes
380 V, 200 Vvoltage
CNC Routermachine type
SingleNo. of Spindles
High Rigiditykey selling points
Dust collection, ScannerAccessory Type
cnc or not:CNC
place of origin:Shandong, China
weight (kg):1500
warranty:2 Years
range of spindle speed(r.p.m):18000 - 24000
positioning accuracy (mm):0.03
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.02
Spindle Motor Power (kw):9
brand name:igoldencnc
machinery test report:Provided
video outgoing-inspection:Provided
core components:PLC

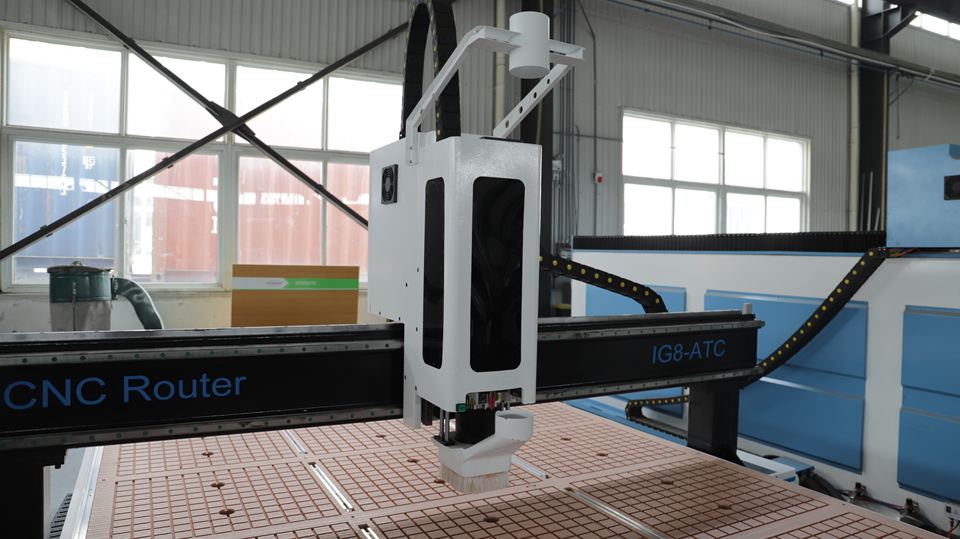

Spindle:ATC air cooling 9kw spindle
Motor:servo motors

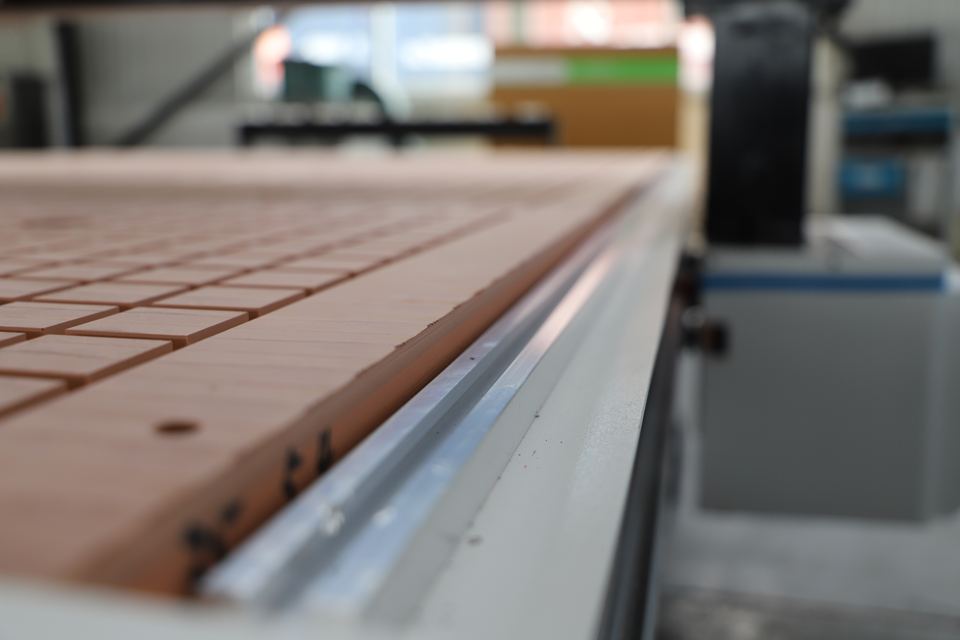

Table:PVC Vacuum table
Oil lubrication:Automatic lubrication

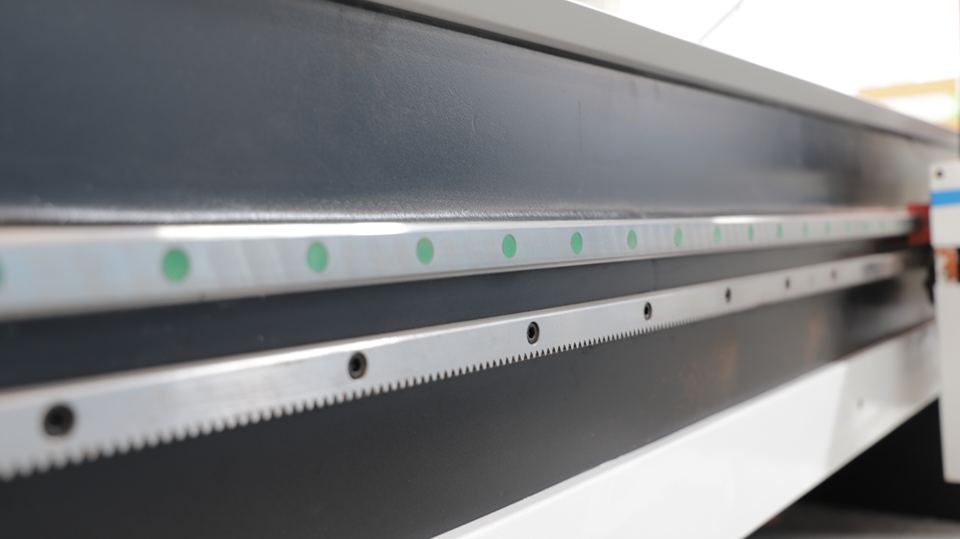

Transmission:XY axis helical rack Z axis Taiwan ball screw
Rail:X,Y,Z axis Taiwan Square guide rail
Bed:Thick steel welded big square tube
Cabinet:Independent cabinet
Voltage:220V/380V 50HZ/60hz single/three-phase electricity
Tools:1 box(10 pieces)
Service
Free replacement parts & online technical support
Key attributes
number of axes
4
voltage
380 V, 200 V
machine type
CNC Router
No. of Spindles
Single
key selling points
High Rigidity
Accessory Type
Dust collection, Scanner
core components
PLC
warranty
2 Years
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
weight (kg)
1500
range of spindle speed(r.p.m)
18000 - 24000
positioning accuracy (mm)
0.03
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.02
Spindle Motor Power (kw)
9
brand name
igoldencnc
Spindle
ATC air cooling 9kw spindle
Motor
servo motors
Table
PVC Vacuum table
Oil lubrication
Automatic lubrication
Transmission
XY axis helical rack Z axis Taiwan ball screw
Rail
X,Y,Z axis Taiwan Square guide rail
Bed
Thick steel welded big square tube
Cabinet
Independent cabinet
Voltage
220V/380V 50HZ/60hz single/three-phase electricity
Tools
1 box(10 pieces)
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
1 - 2 sets
$7,300
>= 3 sets
$7,100
Variations
Select nowWorking Table Size(mm): 1300×2500
1300×2500
model number: iGW-4AS 1325R
iGW-4AS 1325R
Power (kW)
9kw(12.07hp)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
