Agricultural Machinery Film Blowing Machine Plastic Blowing Machine Price

No reviews yetcertified

Ruian Mingde Machinery Co., Ltd.

Custom Manufacturer

16 yrs

CN

Attributes

LDPE, LLDPEplastic processed

Single-Layernumber of layers

150-280output (kg/h)

380V,50HZ,3PHASEvoltage

Engine, Bearing, Gearbox, Motor, Gearcore components

Polyethylene (Pe)Raw Material

weight (kg):2000

place of origin:Zhejiang, China

warranty:1 Year

screw diameter (mm):75

brand name:MINGDE

die size(mm):350 - 400

model number:MD-L

dimension(l*w*h):6.8*2.6*6.5

key selling points:Easy To Operate, High-Accuracy

video outgoing-inspection:Provided

machinery test report:Provided

After-sales Service Provided:Engineers available to service machinery overseas

Max. Output:150/200/280kg/hr

Gear Box:200

Screw L/D Ratio:30:1

Screw's Material:38 CRMOALA

Driving Motor:45KW

Winder Type:Surface Friction Double Winder

Air Ring:1pc

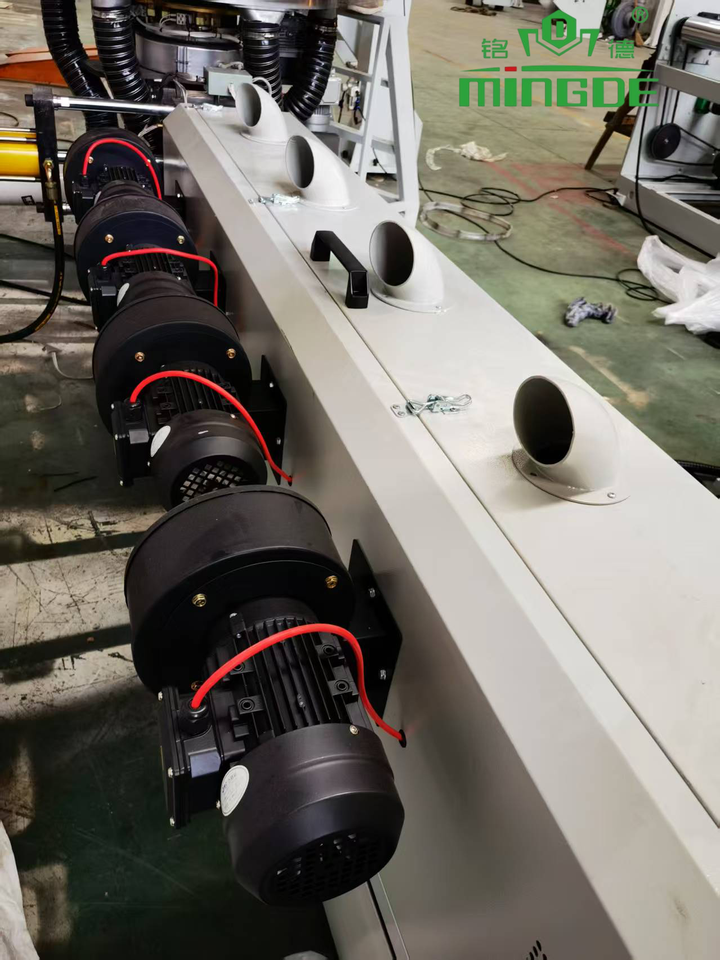

Cooling Blower:5.5kw

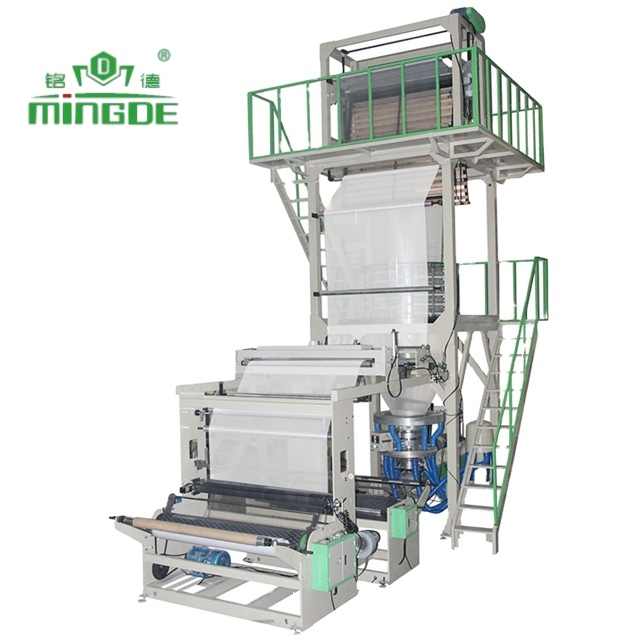

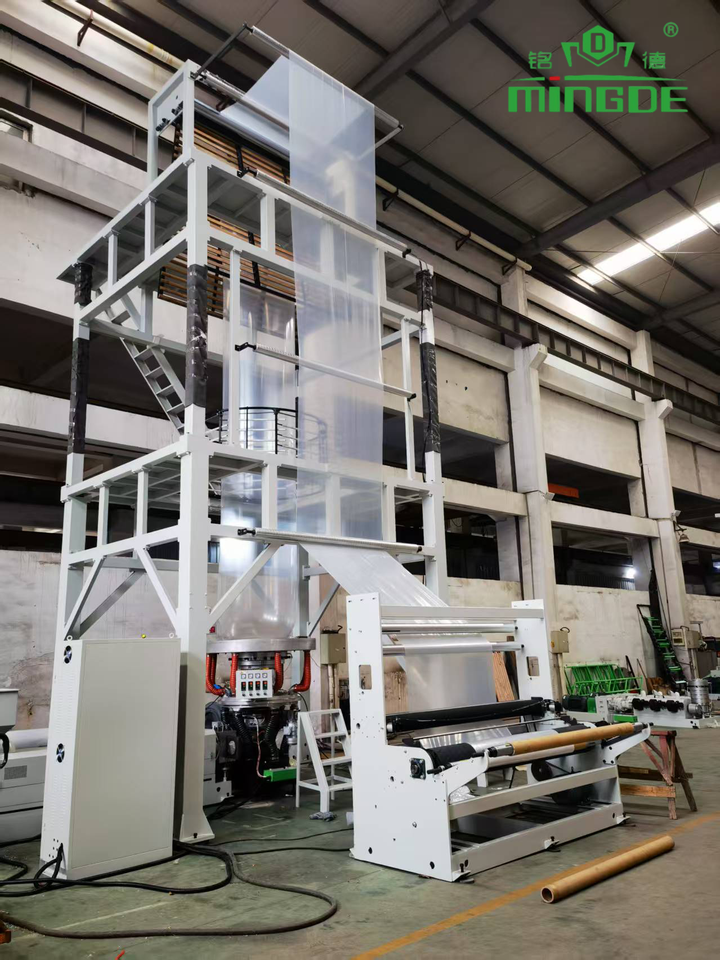

The agricultural machinery film blowing machine by Mingde is a high-quality, new plastic blowing machine designed for efficient film production, meeting the needs of various users worldwide, including those from the user's company.
This plastic blowing machine features an extrusion blow moulding type, allowing for the production of high-quality films with precise control over the plastic processed, specifically PE, ensuring optimal results.
Equipped with advanced technology, the machine operates automatically, reducing labor costs and increasing productivity, making it an ideal choice for large-scale film production, such as the user's large-scale agricultural operations.
The machine's compact dimensions (6.8x2.6x6.5 meters) and weight (4000kg) facilitate easy installation and relocation, accommodating various production environments, including those with limited space, as requested by the user.
With a comprehensive warranty of one year and dedicated online support, as well as engineers available for overseas service, the Mingde plastic blowing machine provides users with reliable after-sales service, ensuring minimal downtime and maximum efficiency, as preferred by the user.

Service

Free replacement parts & online technical support

Free replacement parts & online technical support

Key attributes

plastic processed

LDPE, LLDPE

number of layers

Single-Layer

output (kg/h)

150-280

voltage

380V,50HZ,3PHASE

core components

Engine, Bearing, Gearbox, Motor, Gear

Raw Material

Polyethylene (Pe)

machinery test report

Provided

warranty

1 Year

video outgoing-inspection

Provided

key selling points

Easy To Operate, High-Accuracy

weight (kg)

2000

place of origin

Zhejiang, China

screw diameter (mm)

75

brand name

MINGDE

die size(mm)

350 - 400

model number

MD-L

dimension(l*w*h)

6.8*2.6*6.5

After-sales Service Provided

Engineers available to service machinery overseas

Max. Output

150/200/280kg/hr

Gear Box

200

Screw L/D Ratio

30:1

Screw's Material

38 CRMOALA

Driving Motor

45KW

Winder Type

Surface Friction Double Winder

Air Ring

1pc

Cooling Blower

5.5kw

Packaging and delivery

Selling Units

Single item

Lead time

Product descriptions from the supplier

Minimum order quantity: 1 set

$29,000-80,000

Variations

film thickness (mm): LD:0.015-0.15

LD:0.015-0.15

film width (mm)

800-1500

1000-2000

1500-2500

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization
