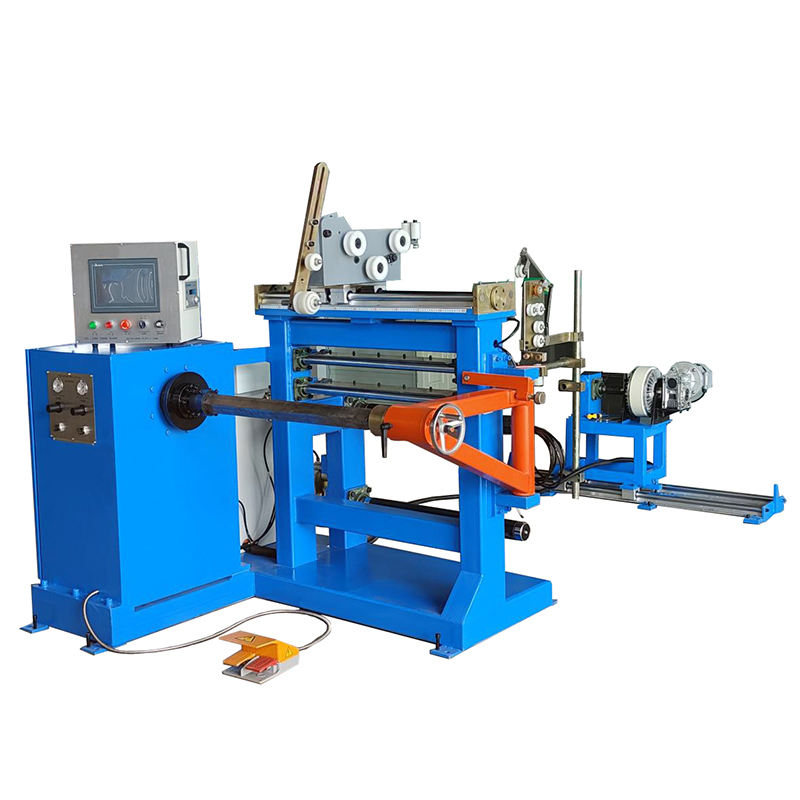

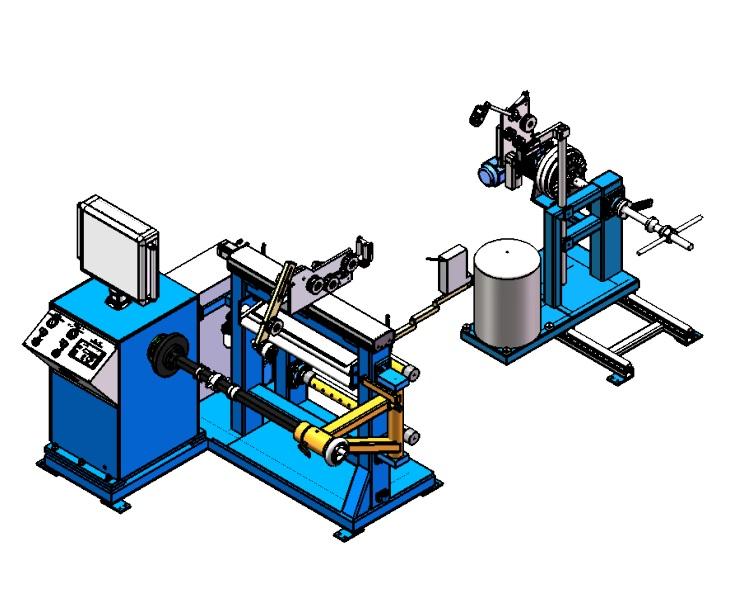

Automatic Transformer High Voltage Coil Winding Machine with Transversal Wire Guider
Store rating:4.9
(20 reviews)
Attributes
Normalcnc or not
PLC, Motorcore components
Providedmachinery test report
Providedvideo outgoing-inspection
1 Yearwarranty
Famous brand PLCkey selling points
max. load (kg):500
length of axis (mm):1200
center height (mm):850
motor power (kw):4
place of origin:Shanghai, China
weight (kg):2000

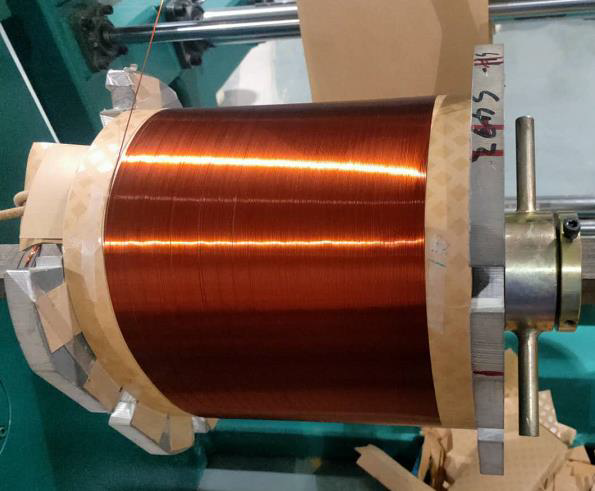

coil type:high voltage coil
max.transformer capacity(kva):1600
brand name:ZHENHUAN
dimension(l*w*h):3100x1500x1700mm
wire diameter range (mm):0.3 - 3 mm
Mandrel hight to the ground:850mm
Suitable coil length:less than 1000mm
Max coil weight:less than 500kg or customized
working speed:0-200rpm
Suitable flat wire size:3x12mm
Suitable round wire thickness:0.3-3mm
Power Supply:380V, 3Phase, 50 hz or as required
After Warranty Service:Spare parts
After-sales Service Provided:Video technical support
Warranty of core components:1 Year
Product spotlightsPLC Control System: The PLC control system ensures precise and reliable operation, allowing for accurate and consistent winding of high voltage coils.
Servo & Ball Screw Driving: The servo and ball screw driving mechanism provides high precision in wire traverse, ensuring uniform and high-quality coil winding.
Inverter Controlled Speed: The inverter-controlled speed allows for reliable and sensitive starting and braking, enhancing the overall efficiency and performance of the machine.
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
cnc or not
Normal
core components
PLC, Motor
machinery test report
Provided
video outgoing-inspection
Provided
warranty
1 Year
key selling points
Famous brand PLC
max. load (kg)
500
length of axis (mm)
1200
center height (mm)
850
motor power (kw)
4
place of origin
Shanghai, China
weight (kg)
2000
coil type
high voltage coil
max.transformer capacity(kva)
1600
brand name
ZHENHUAN
dimension(l*w*h)
3100x1500x1700mm
wire diameter range (mm)
0.3 - 3 mm
Mandrel hight to the ground
850mm
Suitable coil length
less than 1000mm
Max coil weight
less than 500kg or customized
working speed
0-200rpm
Suitable flat wire size
3x12mm
Suitable round wire thickness
0.3-3mm
Power Supply
380V, 3Phase, 50 hz or as required
After Warranty Service
Spare parts
After-sales Service Provided
Video technical support
Warranty of core components
1 Year
Packaging and delivery
Selling Units
Single item
Single package size
XX cm
Lead time
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Minimum order quantity: 1 set
$10,000
Variations
Select nowmodel number
GXR-800
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
