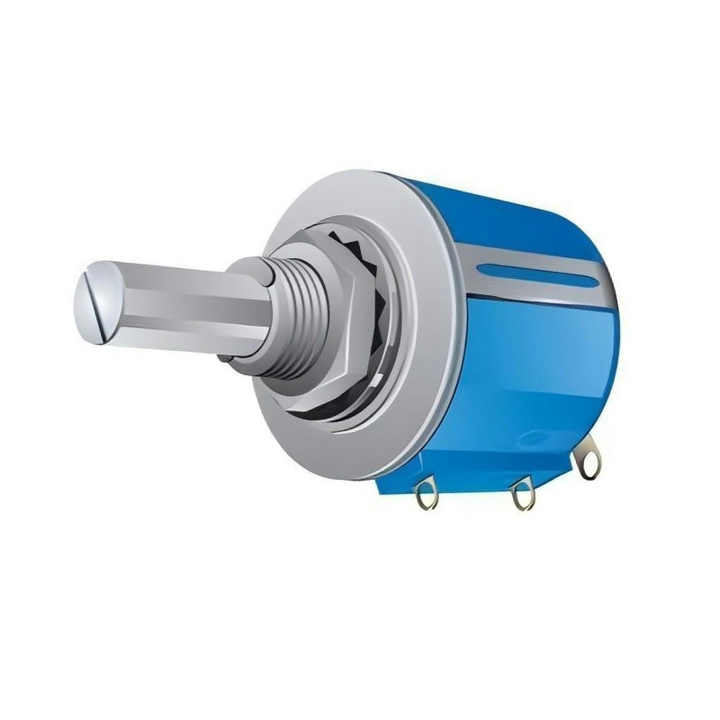

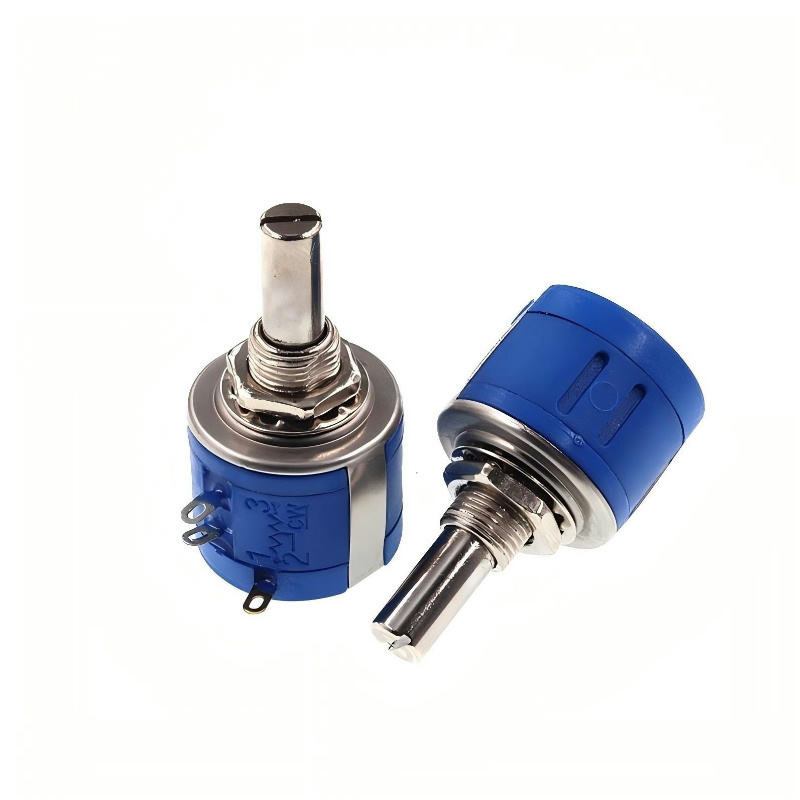

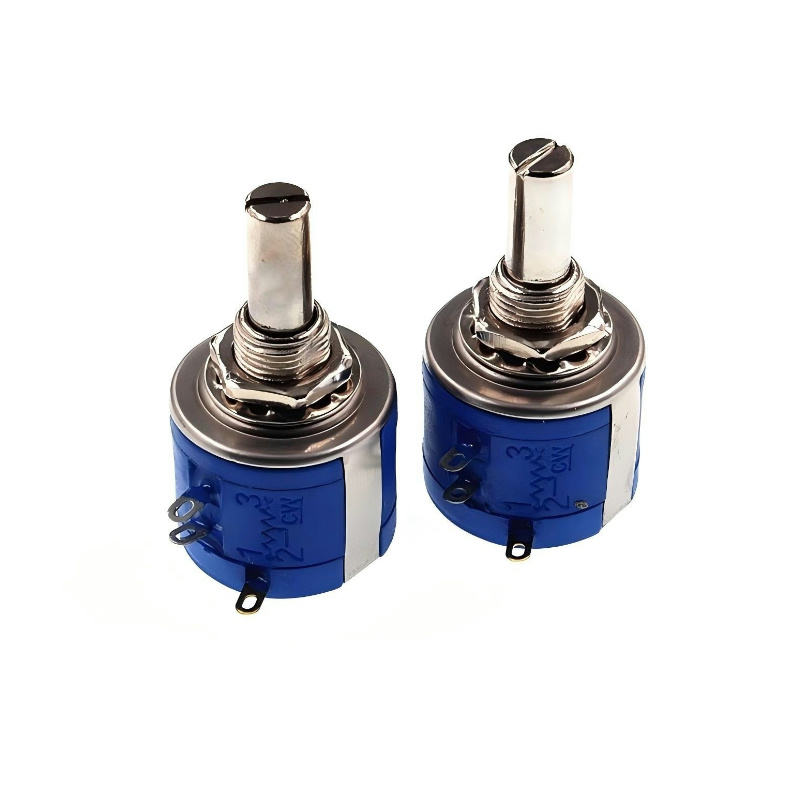

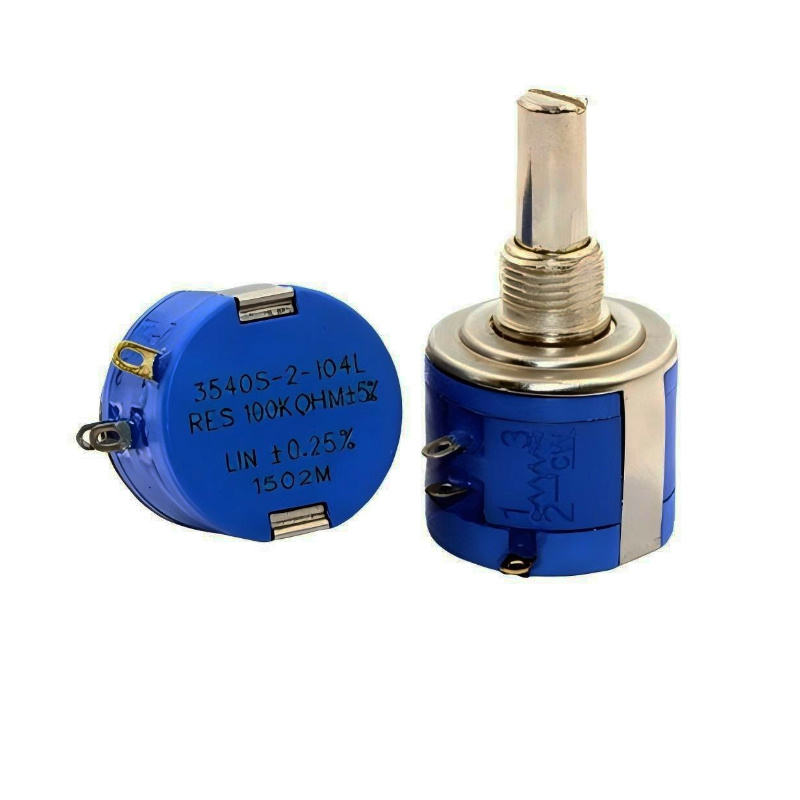

Bonens 3540S-1-103L Potentiometer Wirewound 10k 5% Tolerance 10 Turns Pwr 2W -55~125 3540 Series Good Price
Store rating:5.0
(67 reviews)
Attributes

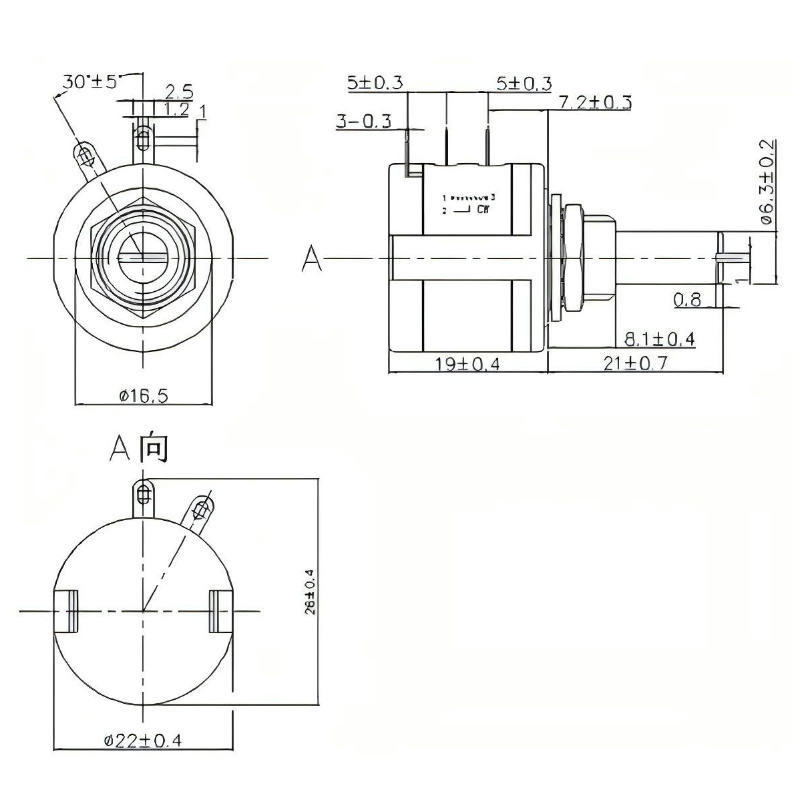

22*30mmSize / Dimension
10kResistance
5%Resistance Tolerance
SichuanPlace of Origin
BONENSBrand Name
3540S-1-103LModel Number
Description:Multi-turn wirewound potentiometer
Specification:3540S
Packaging Type:Paper package
Application:Electronic equipment
Package / Case:plastic shell
Series:3540S
Features:wirewound
Manufacturing Date Code:1816M
model:WXD3540
Technology:Wirewound
Effective Trave:≥3600°±10°
Rated Power:2W (70°C)
Operating Temperature:-55℃~125℃
TCR:±100*10-6/°C
Insulation resistance:≥ 200MΩ

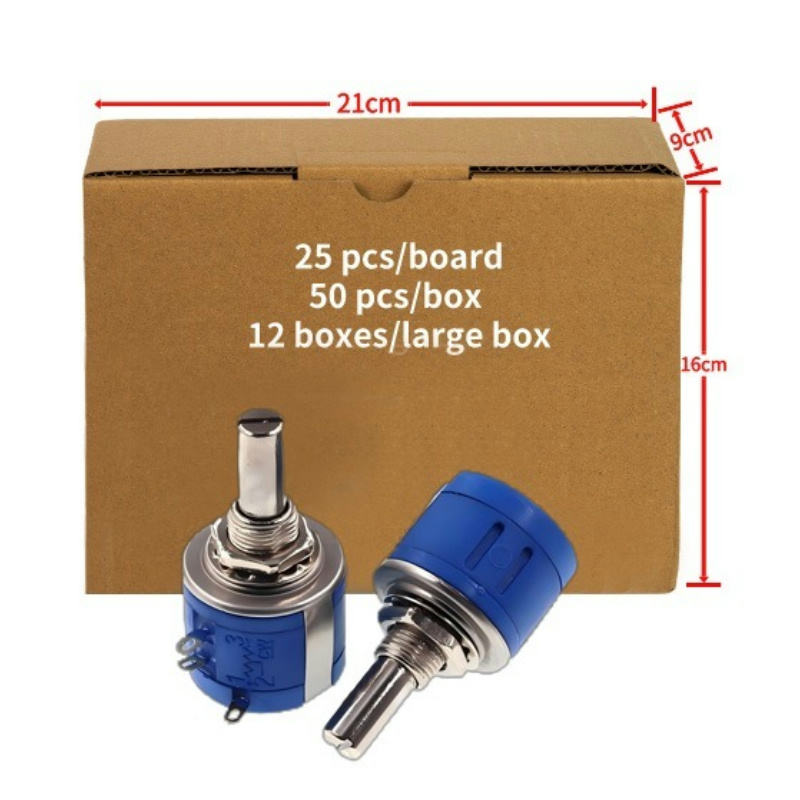

Packaging Details:25PCS/Box
Key attributes
Size / Dimension
22*30mm
Resistance
10k
Resistance Tolerance
5%
Place of Origin
Sichuan
Brand Name
BONENS
Model Number
3540S-1-103L
Description
Multi-turn wirewound potentiometer
Specification
3540S
Packaging Type
Paper package
Application
Electronic equipment
Package / Case
plastic shell
Series
3540S
Features
wirewound
Manufacturing Date Code
1816M
model
WXD3540
Technology
Wirewound
Resistance Tolerance
±2%,±5%
Effective Trave
≥3600°±10°
Rated Power
2W (70°C)
Resistance
100Ω~100KΩ
Operating Temperature
-55℃~125℃
TCR
±100*10-6/°C
Insulation resistance
≥ 200MΩ
Packaging Details
25PCS/Box
Packaging and delivery
Selling Units
Single item
Single package size
10X10X5 cm
Single gross weight
0.250 kg
Lead time
Customization options
Customized logo (Min. order: 1,000 pieces)
Customized packaging (Min. order: 1,000 pieces)
Graphic customization (Min. order: 1,000 pieces)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
FREE shipping capped at $20
NEW buyer
| 1% off1 - 99 pieces
$139
$1.40100 - 999 pieces
$134
$1.35>= 1000 pieces
$124
$1.25
Sample price: $1.45
