CNC di Foratura E Macchina di Routing per la Pensione Mobili
No reviews yet
Attributes
380V/220Vvoltage
1200 mmtable travel (x) (mm)
2400 mmtable travel (y) (mm)
200 mmtable travel (z) (mm)
0.03positioning accuracy
0.03repeatability (x/y/z) (mm)
number of axes:3
machining capacity:Heavy Duty
type:Universal
spindle taper:ISO30
key selling points:Multifunctional
warranty:2 Years
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
max. table load(kg):500 kg
range of spindle speed:1 - 24000
brand name:Forsun
model number:FS1224
dimension(l*w*h):2070*3200*2100mm
weight:2000

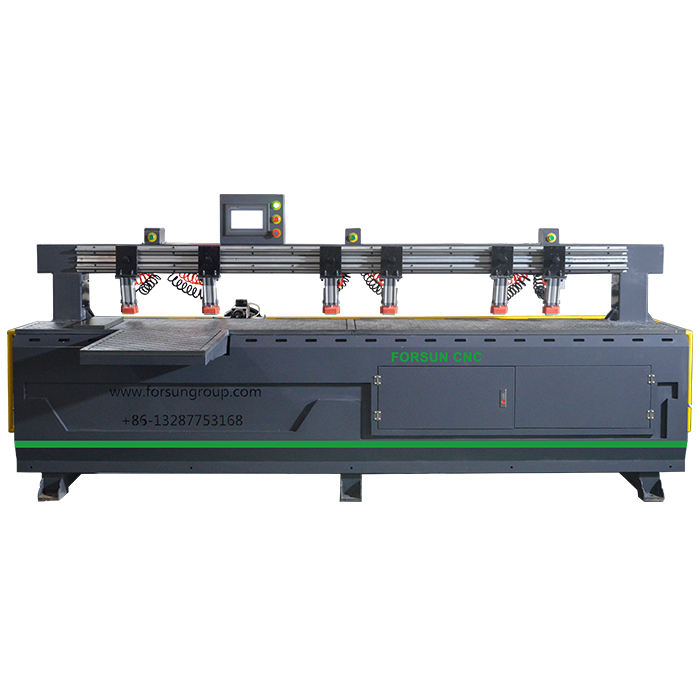

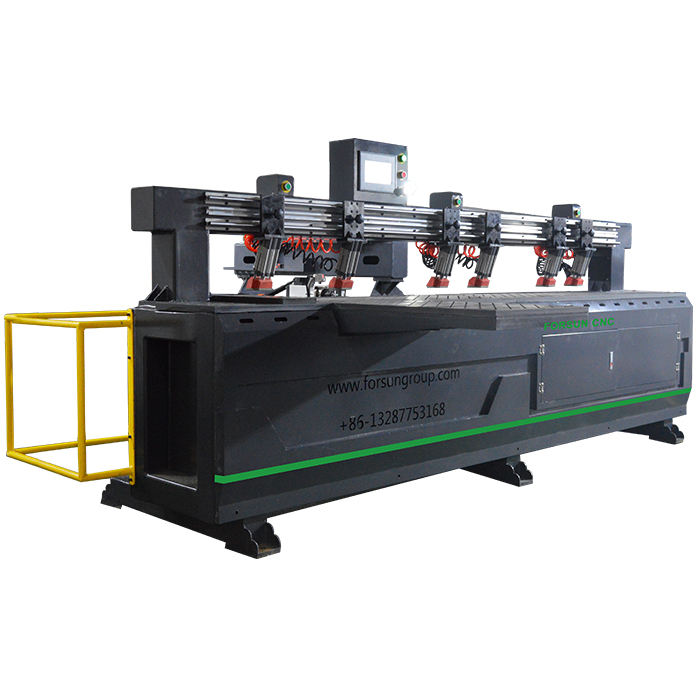

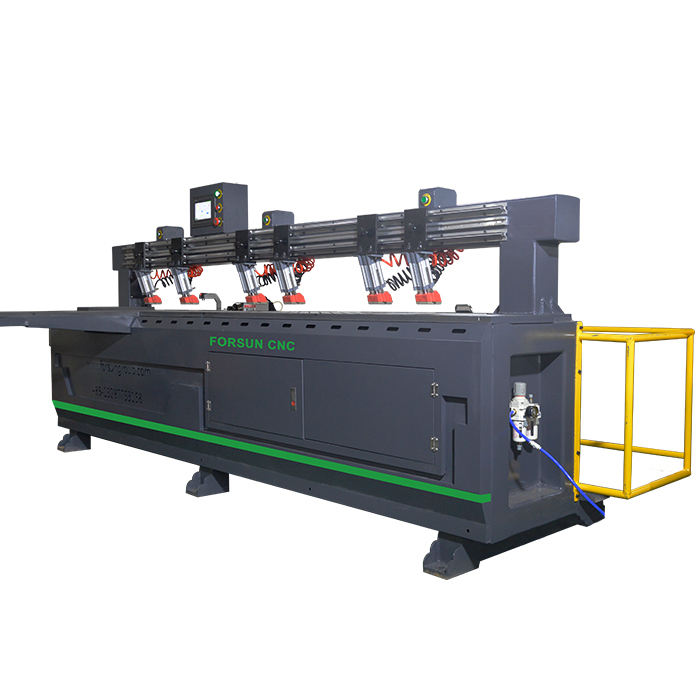

Product Name:CNC Drilling And Routing Machine for Board Furniture
Working Size:1200*2400mm
Spindle:2.2kw Air Cooling Spindle
Inverter:3.7KW Delta Inverter
CNC Controller:Computer Operation Controller
Transmission:Taiwan TBI Ball Screw and Helical Gear Rack
Guide rails:Taiwan Hiwin Linear Square Guide rails

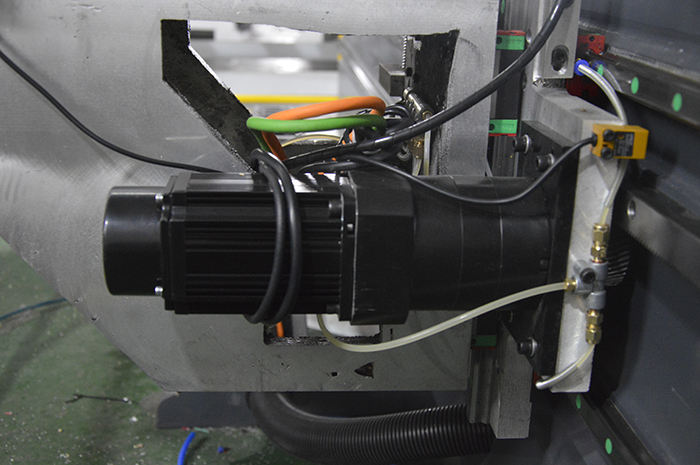

Motor and Driver:Yako Servo Motor and Driver
Key words:Cabinet Drilling Machine
Other Name:Wood Hole Drill Machine
Key attributes
voltage
380V/220V
table travel (x) (mm)
1200 mm
table travel (y) (mm)
2400 mm
table travel (z) (mm)
200 mm
positioning accuracy
0.03
repeatability (x/y/z) (mm)
0.03
number of axes
3
machining capacity
Heavy Duty
type
Universal
spindle taper
ISO30
key selling points
Multifunctional
warranty
2 Years
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
max. table load(kg)
500 kg
range of spindle speed
1 - 24000
brand name
Forsun
model number
FS1224
dimension(l*w*h)
2070*3200*2100mm
weight
2000
Product Name
CNC Drilling And Routing Machine for Board Furniture
Working Size
1200*2400mm
Spindle
2.2kw Air Cooling Spindle
Inverter
3.7KW Delta Inverter
CNC Controller
Computer Operation Controller
Transmission
Taiwan TBI Ball Screw and Helical Gear Rack
Guide rails
Taiwan Hiwin Linear Square Guide rails
Motor and Driver
Yako Servo Motor and Driver
Key words
Cabinet Drilling Machine
Other Name
Wood Hole Drill Machine
Packaging and delivery
Packaging Details
standard wooden cases for exporting
Lead time
Product descriptions from the supplier
FREE shipping capped at $20
Minimum order quantity: 1 set
$3,000
