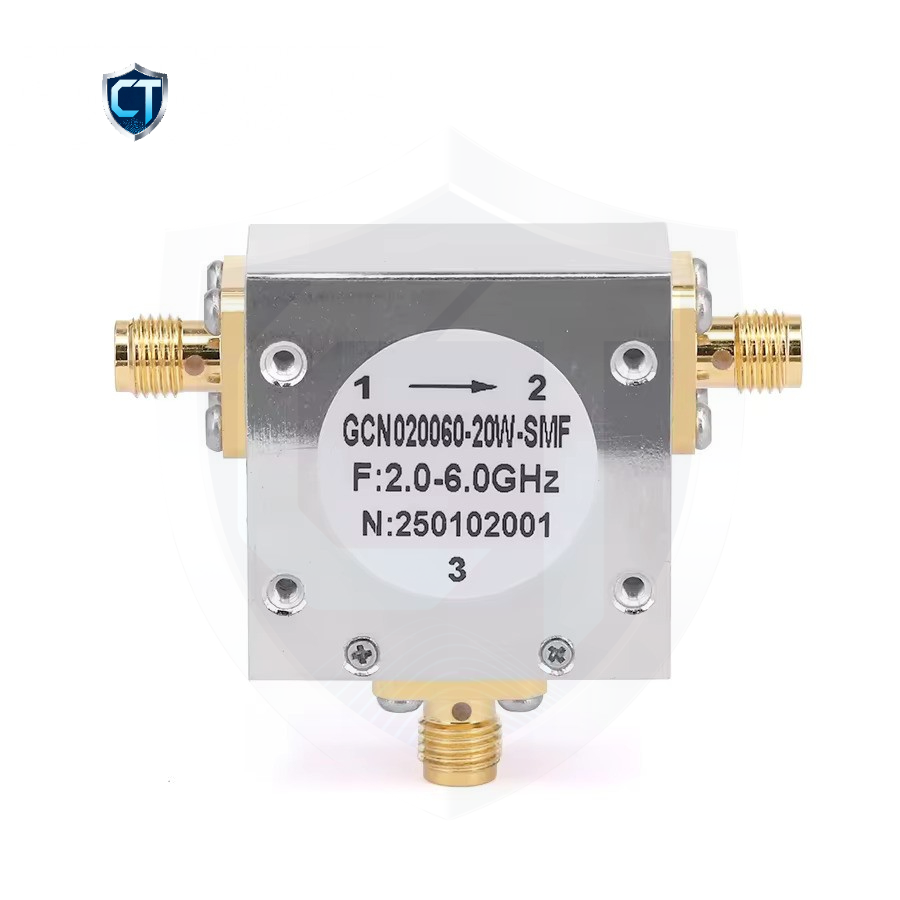

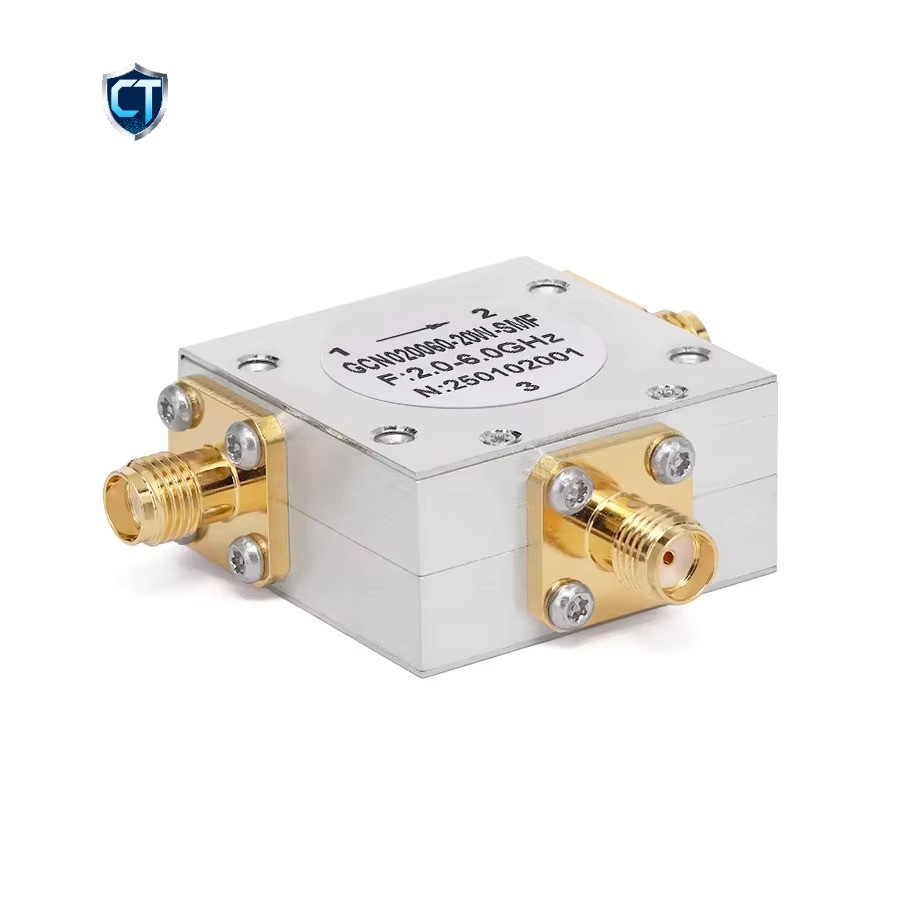

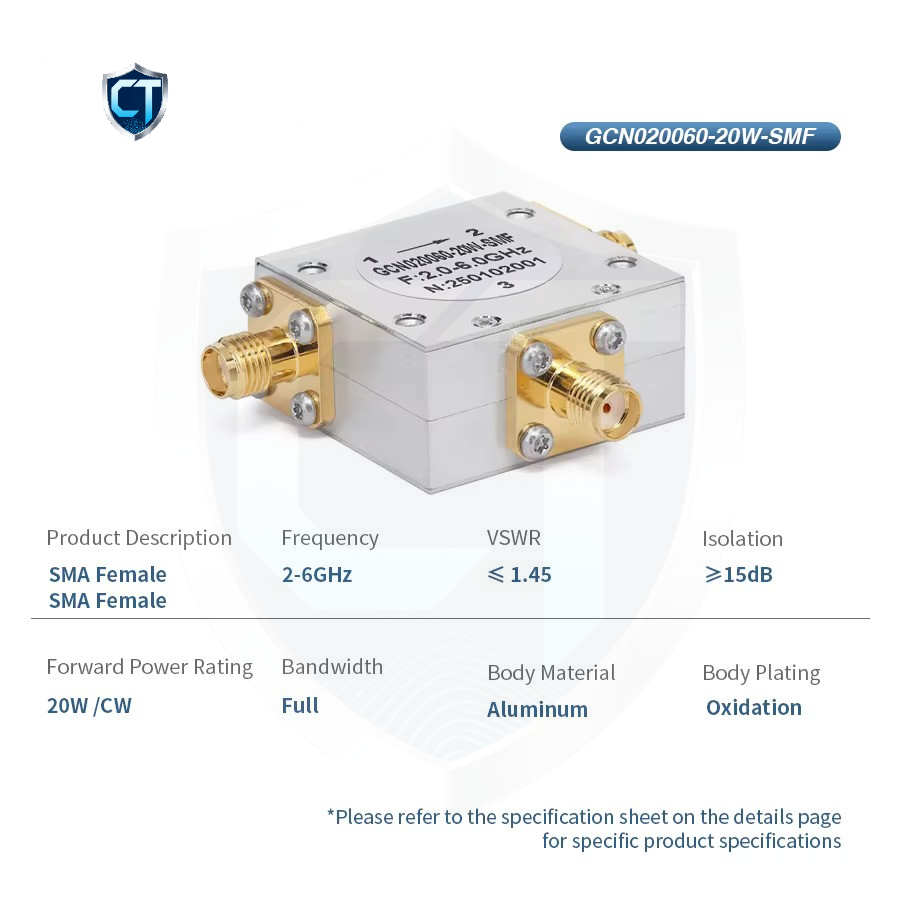

CT RF Circulator with 15dB Isolation 20 Watts Power SMA Female Connector 2GHz to 6GHz Bandwidth
No reviews yet
Attributes
GwaveBrand Name
GCN020060-20W-SMFManufacturer Part Number
Wide bandType
Coaxial Connector TypeMounting Type
Jiangsu, ChinaPlace of Origin
15dB Isolation From 2-6GHz 20Watts and SMA FemaleDescription
Series:Circulator
Features:Low Insertion Loss
Frequency:n/a
Connector Type:sma female
Insertion Loss:≤0.7dB
Isolation:≥15dB
VSWR:≤ 1.45
Power - Average Forward:n/a
Impedance:50 Ohm
Body Material:Brass
Body Plating:Gold
Operating Temperature Range:-0℃ to +60℃
RoHS Compliant:Yes
Key attributes
Brand Name
Gwave
Manufacturer Part Number
GCN020060-20W-SMF
Type
Wide band
Mounting Type
Coaxial Connector Type
Place of Origin
Jiangsu, China
Description
15dB Isolation From 2-6GHz 20Watts and SMA Female
Series
Circulator
Features
Low Insertion Loss
Frequency
n/a
Connector Type
sma female
Insertion Loss
≤0.7dB
Isolation
≥15dB
VSWR
≤ 1.45
Power - Average Forward
n/a
Impedance
50 Ohm
Body Material
Brass
Body Plating
Gold
Operating Temperature Range
-0℃ to +60℃
RoHS Compliant
Yes
Packaging and delivery
Selling Units
Single item
Single package size
27.0X17.0X6.0 cm
Single gross weight
0.650 kg
Lead time
Product descriptions from the supplier
1 - 4 pieces
$199
5 - 19 pieces
$189
20 - 49 pieces
$183
>= 50 pieces
$179
Variations
Select nowSpecification
GCN020060-20W-SMF
