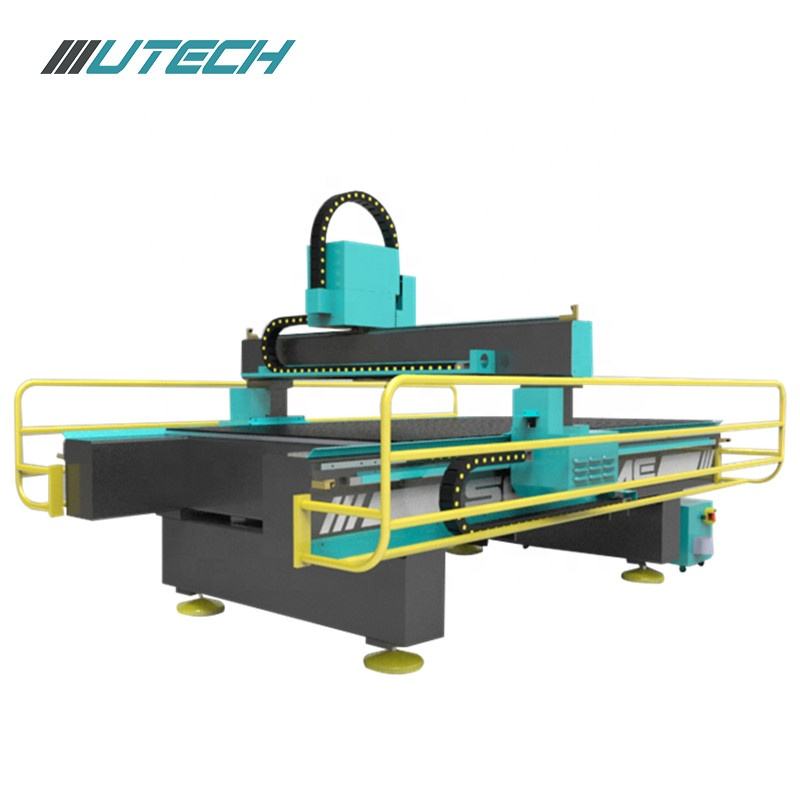

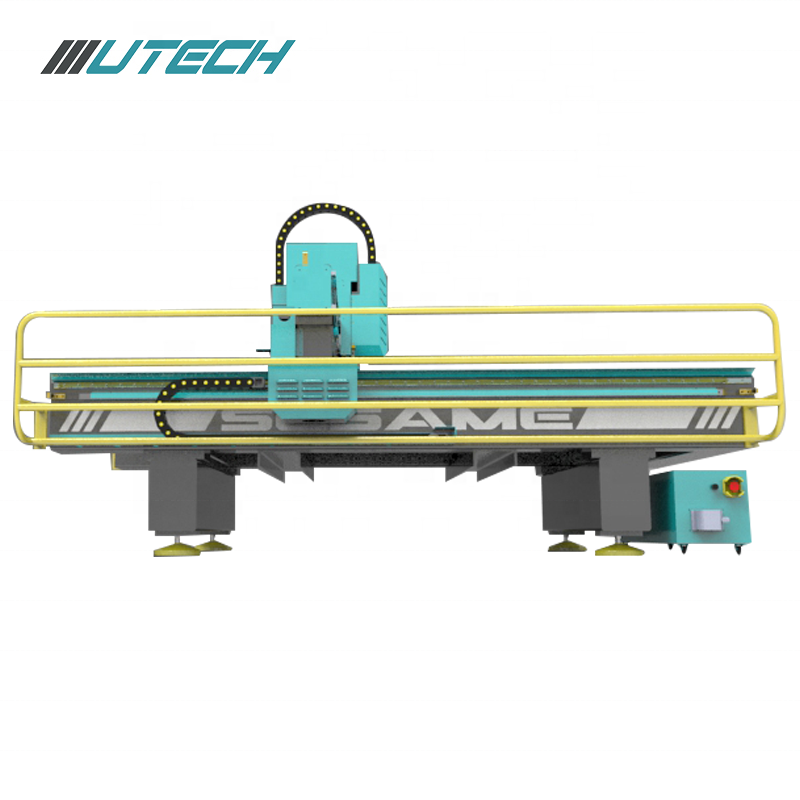

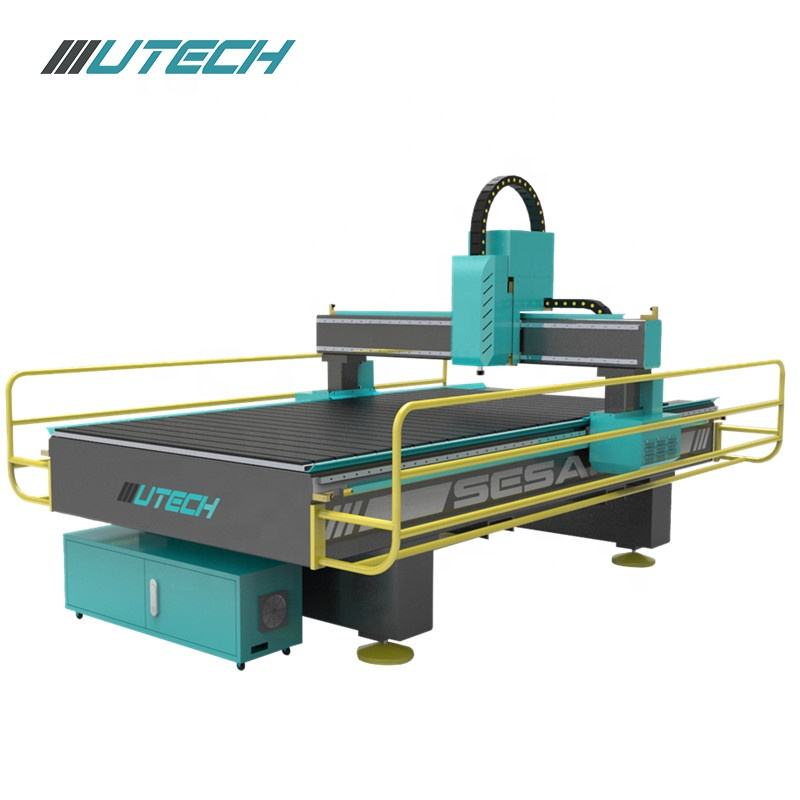

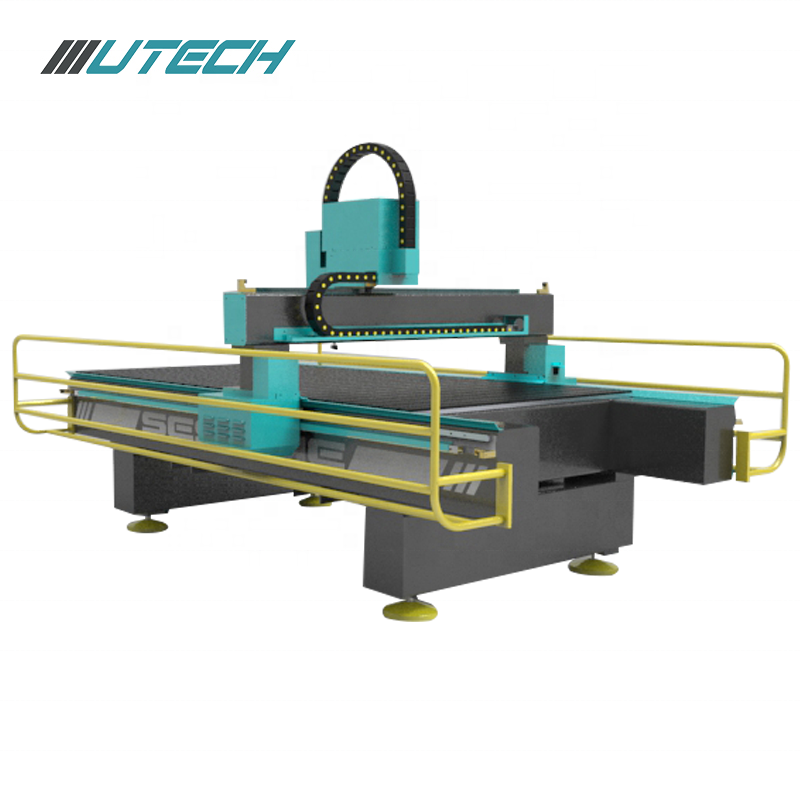

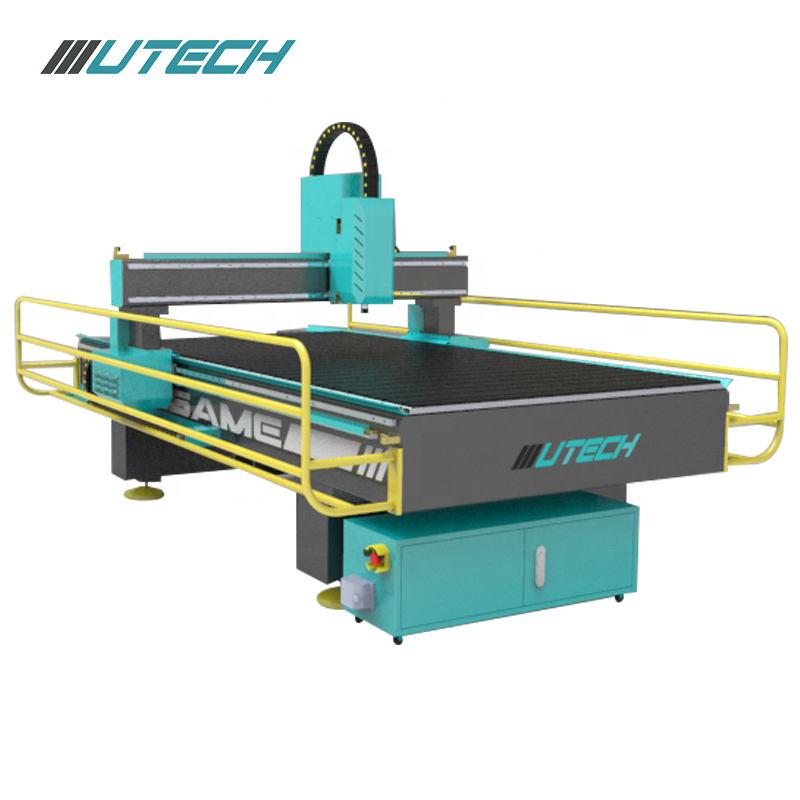

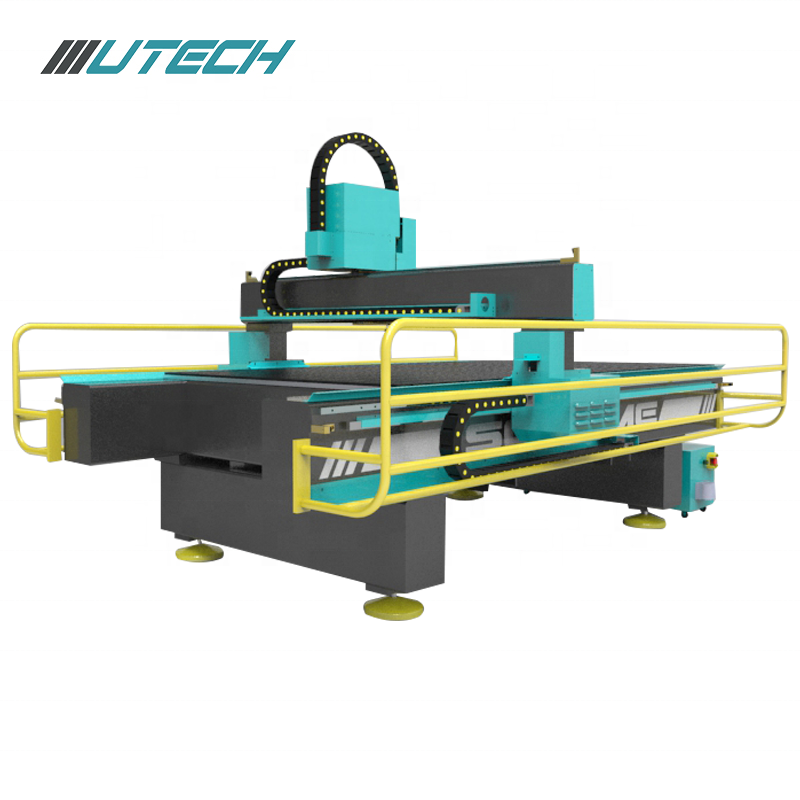

China UTECH Sesame Sercies Wood Cnc Router Machine 1325 1530 for Marble Bit Woodworking Foam Carving
Store rating:5.0
(33 reviews)
Attributes
3number of axes
220V/380Vvoltage
CNC Routermachine type
SingleNo. of Spindles
Easy To Operatekey selling points
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcore components
cnc or not:CNC
place of origin:Shandong, China
weight (kg):1000
warranty:1 Year
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.01
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):3.7KW water cooling spindle
brand name:utech
dimension(l*w*h):1935*3015*1500mm
machinery test report:Provided
video outgoing-inspection:Provided
Product name:cnc router machine
Working area:1300*2500*200mm
Spindle motor:3.0/4.5/6/7KW water cooling spindle/air cooling spindle
Control system:Nc-studio/Mach3/DSP control system
XYZ Transmission:Z-Taiwan TBI Ball Screw; X,Y-Gear transmission
Drive&Motor:Stepper motor and driver
Spindle rotating speed:0-24,000rpm
X,Y,Z Guide Rail:Taiwan HIWIN Guide Rail
Command:HPGL G-code
Working table:T-slot Table
Service
Free replacement parts & online technical support
Key attributes
number of axes
3
voltage
220V/380V
machine type
CNC Router
No. of Spindles
Single
key selling points
Easy To Operate
core components
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
warranty
1 Year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
Spindle Motor Power (kw)
3.7KW water cooling spindle
brand name
utech
dimension(l*w*h)
1935*3015*1500mm(76.18*118.70*59.06in)
place of origin
Shandong, China
positioning accuracy (mm)
0.01
range of spindle speed(r.p.m)
1 - 24000 rpm
repeatability (x/y/z) (mm)
0.01
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
weight (kg)
1000
Product name
cnc router machine
Working area
1300*2500*200mm
Spindle motor
3.0/4.5/6/7KW water cooling spindle/air cooling spindle
Control system
Nc-studio/Mach3/DSP control system
XYZ Transmission
Z-Taiwan TBI Ball Screw; X,Y-Gear transmission
Drive&Motor
Stepper motor and driver
Spindle rotating speed
0-24,000rpm
X,Y,Z Guide Rail
Taiwan HIWIN Guide Rail
Command
HPGL G-code
Working table
T-slot Table
Packaging and delivery
Selling Units
Single item
Package size per batch
100X80X30 cm
Gross weight per batch
60.000 kg
Lead time
Customization options
Working Table Size(mm)(+ from /Min. order: 1 set)
Power (kW)(+ from /Min. order: 1 set)
number of axes(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Customizable
Minimum order quantity: 2 sets
$4,800
Variations
Select nowWorking Table Size(mm): 1300×2500
1300×2500
model number: Sesame-1325
Sesame-1325
Sesame-1212
Sesame-1313
Sesame-1530
Sesame-2030
Sesame-2040
customizable
Power (kW)
5
Customization options
Working Table Size(mm) (Min. order: 1 set)
Power (kW) (Min. order: 1 set)
number of axes (Min. order: 1 set)
