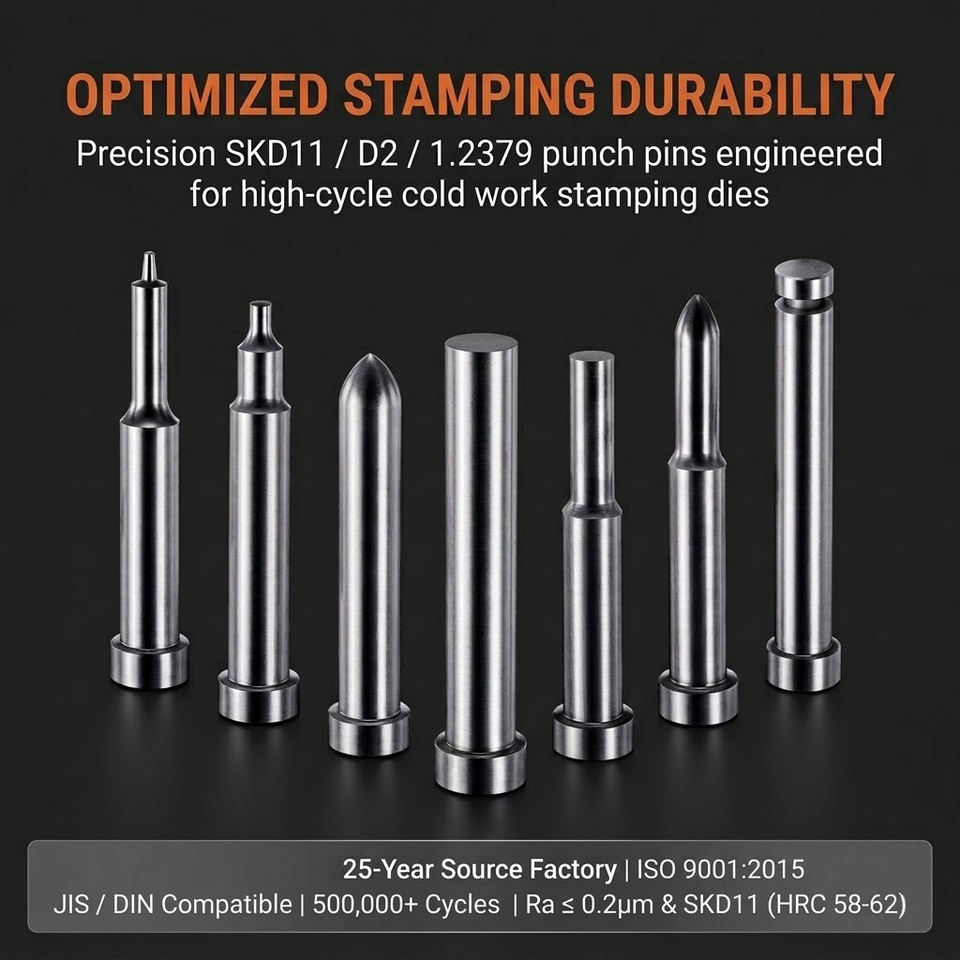

DAYTON Standard SKD11 HSS Inserted Precision Punch Pin for Stamping Die
5.0(2 reviews)35 soldcertified
certified
Attributes
Precision HSS Inserted PunchProduct
Punching Mold / Stamping DieShaping Mode
SKD11 / AISI D2 / DIN 1.2379Product Material
Guangdong, ChinaPlace of Origin
YMDBrand Name
DAYTON Compatible HSS PunchModel Number
Material Grade (Edge):SKH51 / AISI M2 / DIN 1.3343

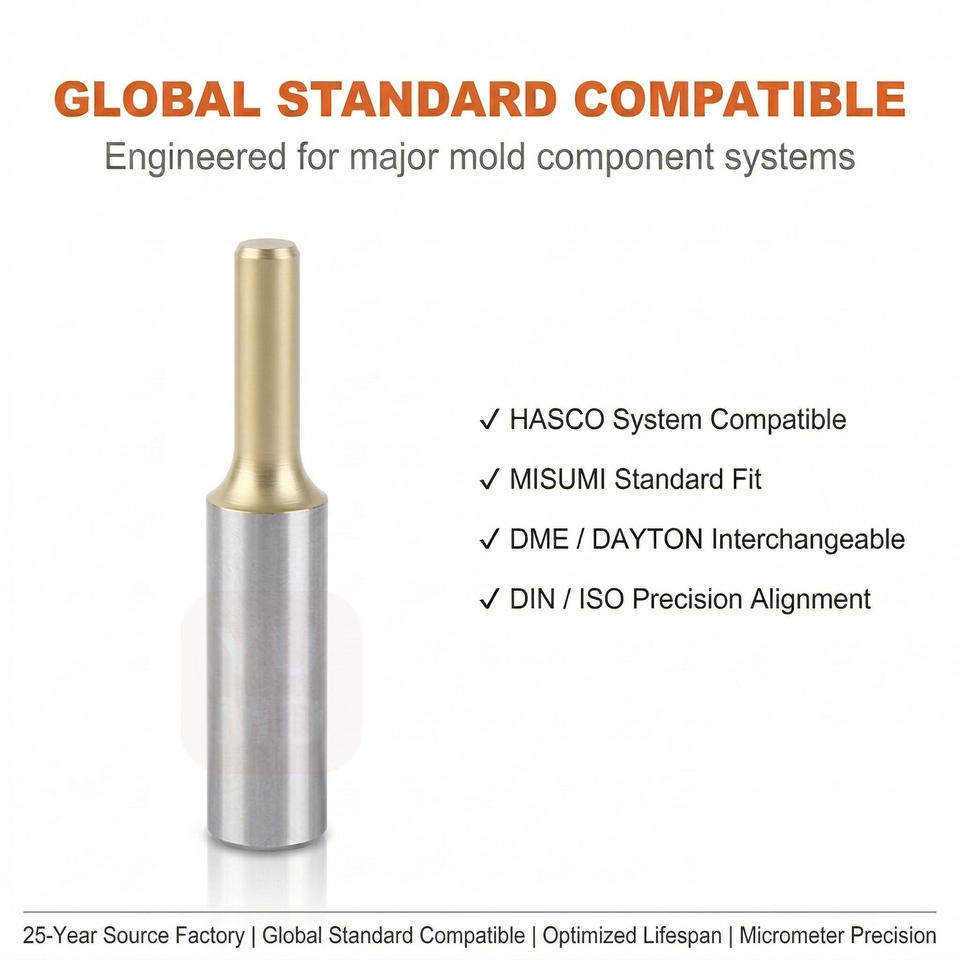

Standard Compliance:ISO 8020 / DIN 9861 / Dayton Compatible
Hardness (Core/Body):58-62 HRC Vacuum Heat Treated
Hardness (Cutting Edge):62-65 HRC (High Wear Resistance)
Precision Tolerance:Shank m5 (+0.004/+0.009mm) / Point ±0.002mm
Surface Finish (Ra):Mirror Polished Ra 0.1-0.2μm Available
Structure Tech:HSS Inserted Compound Structure (Anti-Galling)
Concentricity:≤0.003mm (Ultra-High Coaxiality)
Coating Options:TiCN / AlTiN / DLC (Vickers Hardness 3000HV+)
Stroke Life Expectancy:1,500,000+ Strokes (Standard Stamping)
Product spotlightsPrecision Tolerance: Ensures accurate and consistent performance in stamping operations, reducing the likelihood of defects.
Surface Finish Ra 0.1-0.2μm: Provides a smooth surface that minimizes friction and wear, enhancing tool life and performance.
Hardness 62-65 HRC: Offers high wear resistance, ensuring the punch pin can withstand rigorous use and maintain its edge for longer periods.
Stroke Life 1,500,000+: Guarantees a long operational life, reducing the need for frequent replacements and maintenance.
Key attributes
Product
Precision HSS Inserted Punch
Shaping Mode
Punching Mold / Stamping Die
Product Material
SKD11 / AISI D2 / DIN 1.2379
Place of Origin
Guangdong, China
Brand Name
YMD
Model Number
DAYTON Compatible HSS Punch
Material Grade (Edge)
SKH51 / AISI M2 / DIN 1.3343
Standard Compliance
ISO 8020 / DIN 9861 / Dayton Compatible
Hardness (Core/Body)
58-62 HRC Vacuum Heat Treated
Hardness (Cutting Edge)
62-65 HRC (High Wear Resistance)
Precision Tolerance
Shank m5 (+0.004/+0.009mm) / Point ±0.002mm
Surface Finish (Ra)
Mirror Polished Ra 0.1-0.2μm Available
Structure Tech
HSS Inserted Compound Structure (Anti-Galling)
Concentricity
≤0.003mm (Ultra-High Coaxiality)
Coating Options
TiCN / AlTiN / DLC (Vickers Hardness 3000HV+)
Stroke Life Expectancy
1,500,000+ Strokes (Standard Stamping)
Packaging and delivery
Selling Units
Single item
Single package size
12X6X9 cm
Single gross weight
0.100 kg
Lead time
Customization options
Parameter customization(+ from /Min. order: 10 pieces)
Material customization(+ from /Min. order: 10 pieces)
Appearance and design cu(+ from /Min. order: 10 pieces)
View details
Customizable
Minimum order quantity: 1 piece
