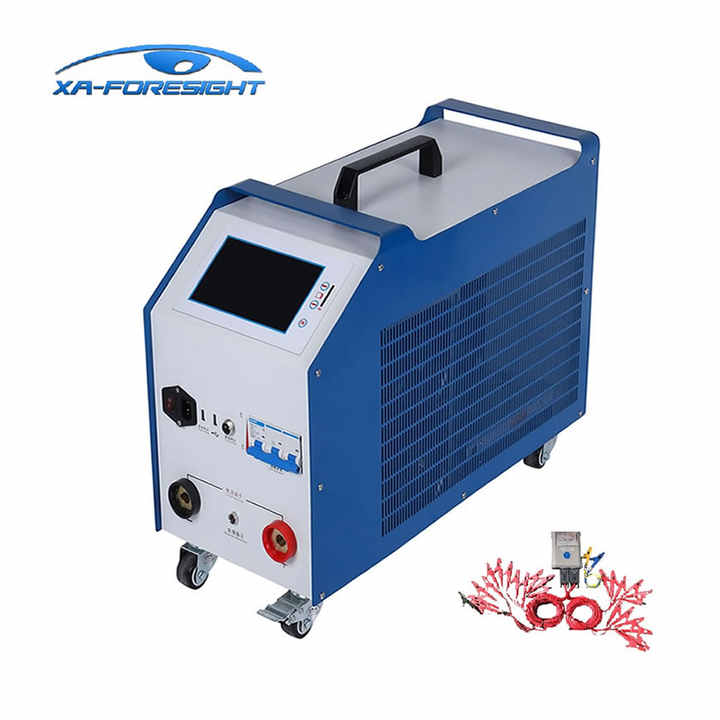

Foresight Electric 12V-48V 300A Multi-voltage Battery Load Tester/battery Discharger

Store rating:4.6

(15 reviews)

Xian Foresight Electronic Technology Co., Ltd .

11 yrs

CN

Attributes

≤ ± 1% , 0.1AAccuracy Class

Battery Pack, Battery Cell, Detect Battery, Test Battery CapacityApplication

Lithium BatterySupport Battery

12V-48VVoltage Range

Shaanxi, ChinaPlace of Origin

FST-1000CTModel Number

Brand Name:XA-FORESISGHT

Charge/Discharge Voltage:12V-48V

Flashlight:LCD

Input Resistance:1 MΩ

Maximum Measuring Voltage:57.6V

Measuring Resistance Range:0 Ω ~ 99 mΩ

Type:Battery Load Tester, Voltage, Current, Battery Capacity Tester

Group Voltage Range:12V/24V/36V/48V

Cell voltage measurement range:1.2V/2V/6V/12V

Discharge Current:2-300Amp

Working Mode:single main machine / main machine + extension load

display mode:7inch color touch screen

Data storage:download to PC vai USB port

Power Supply:Single-phase 3-wire 220Vac (-20%~+30%), frequency: 45~65Hz

Dimensions:355x230x440mm

Weight:<13Kg

Voltage accuracy /resolution:≤±0.5% 0.01V

Multi-Voltage Compatibility: The Foresight Electric battery load tester is designed to work with batteries of various voltages, including 12V, 24V, 36V, and 48V, catering to a wide range of applications and user needs.
High-Current Discharge Capability: This device can handle a maximum discharge current of 300A, making it suitable for testing the performance of high-capacity batteries and energy storage systems.
Accurate Voltage Measurement: With a voltage accuracy of 0.5% and a resolution of 0.01V, this device provides precise measurements of cell voltages, ensuring reliable results and data analysis.
User-Friendly Interface: The 7-inch color touch screen display allows for easy operation and navigation, while the USB port and SD card storage enable convenient data transfer and storage.
Customizable Working Modes: The device can be used in single main machine or main machine + extension load mode, offering flexibility and adaptability to different testing scenarios, as requested by the user.

Key attributes

Accuracy Class

≤ ± 1% , 0.1A

Application

Battery Pack, Battery Cell, Detect Battery, Test Battery Capacity

Support Battery

Lithium Battery

Voltage Range

12V-48V

Place of Origin

Shaanxi, China

Model Number

FST-1000CT

Brand Name

XA-FORESISGHT

Charge/Discharge Voltage

12V-48V

Flashlight

LCD

Input Resistance

1 MΩ

Maximum Measuring Voltage

57.6V

Measuring Resistance Range

0 Ω ~ 99 mΩ

Type

Battery Load Tester, Voltage, Current, Battery Capacity Tester

Group Voltage Range

12V/24V/36V/48V

Cell voltage measurement range

1.2V/2V/6V/12V

Discharge Current

2-300Amp

Working Mode

single main machine / main machine + extension load

display mode

7inch color touch screen

Data storage

download to PC vai USB port

Power Supply

Single-phase 3-wire 220Vac (-20%~+30%), frequency: 45~65Hz

Dimensions

355x230x440mm

Weight

<13Kg

Voltage accuracy /resolution

≤±0.5% 0.01V
