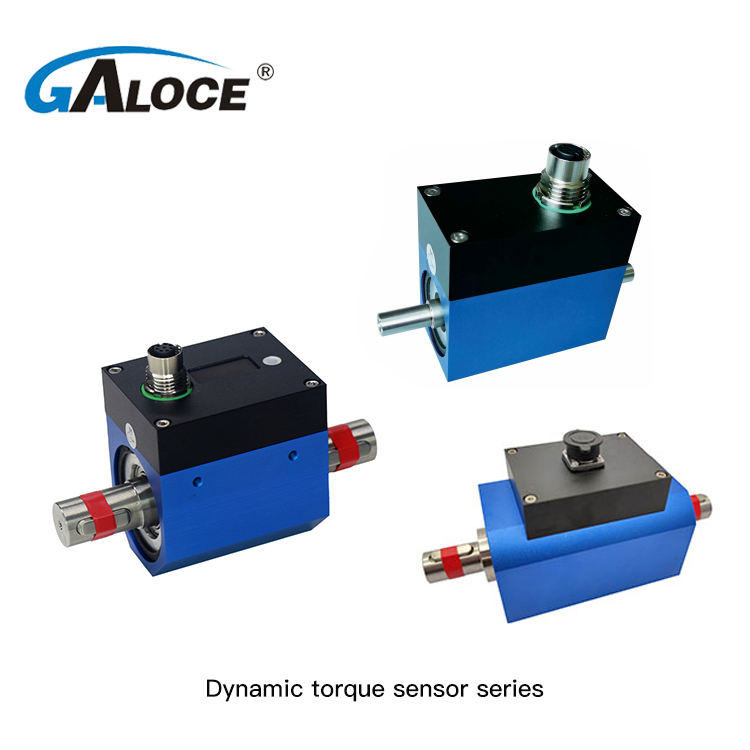

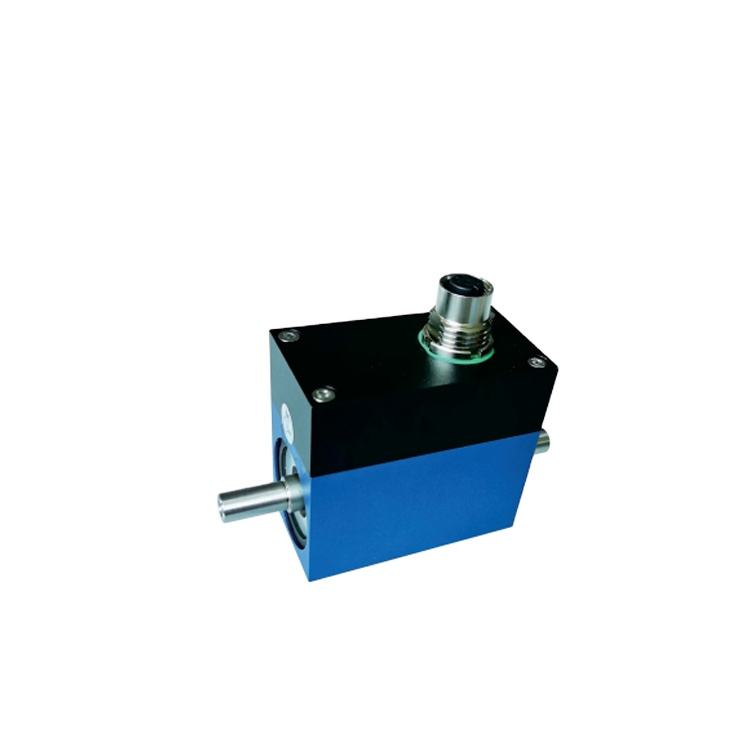

Galoce GTS209 Torque Sensors with Standard Analog Outputs Are Easy to Acquire and Adapt to Industrial Control Systems 5N.m
Store rating:4.9
(380 reviews)certified
certified
Attributes
Load CellType
±0.1%Accuracy
10±5KHZ(standard)Output
torque sensorTheory
measure torque, motor etc.Usage
flanged mountingMounting Type
Manufacturer Part Number:GTS209
Brand Name:GALOCE
Description:Torque Sensor
Place of Origin:Shaanxi, China
Series:GTS
Features:Non-contact Torque Sensors
Description:torque sensor
torque range:0.1,0.2,0.3,0.5,1,2,3,5(Nm)
Output:10±5KHZ, 4~20mA,±5V,±10V,RS485,RS232
Power supply:12~24VDC
Accuracy:±0.2%F.S(standard),±0.1%F.S(Optional)
Temp. Effect on Zero:±0.2%F.S/10℃
Temp. Effect on Output:±0.2%F.S/10℃
Compensated Temp.Range:-10~+60℃
Operating Temp. Range:-20~+75℃
Electrical Connection:8pin aviation plug
Supply current:<100mA
Key attributes
Type
Load Cell
Accuracy
±0.1%
Output
10±5KHZ(standard)
Theory
torque sensor
Usage
measure torque, motor etc.
Mounting Type
flanged mounting
Manufacturer Part Number
GTS209
Brand Name
GALOCE
Description
Torque Sensor
Place of Origin
Shaanxi, China
Series
GTS
Features
Non-contact Torque Sensors
Description
torque sensor
torque range
0.1,0.2,0.3,0.5,1,2,3,5(Nm)
Output
10±5KHZ, 4~20mA,±5V,±10V,RS485,RS232
Power supply
12~24VDC
Accuracy
±0.2%F.S(standard),±0.1%F.S(Optional)
Temp. Effect on Zero
±0.2%F.S/10℃
Temp. Effect on Output
±0.2%F.S/10℃
Compensated Temp.Range
-10~+60℃
Operating Temp. Range
-20~+75℃
Electrical Connection
8pin aviation plug
Supply current
<100mA
Packaging and delivery
Selling Units
Single item
Single package size
23X23X23 cm
Single gross weight
5.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1,000 pieces)
Customized packaging(+ from /Min. order: 1,000 pieces)
Graphic customization(+ from /Min. order: 1,000 pieces)
View details
Product descriptions from the supplier
