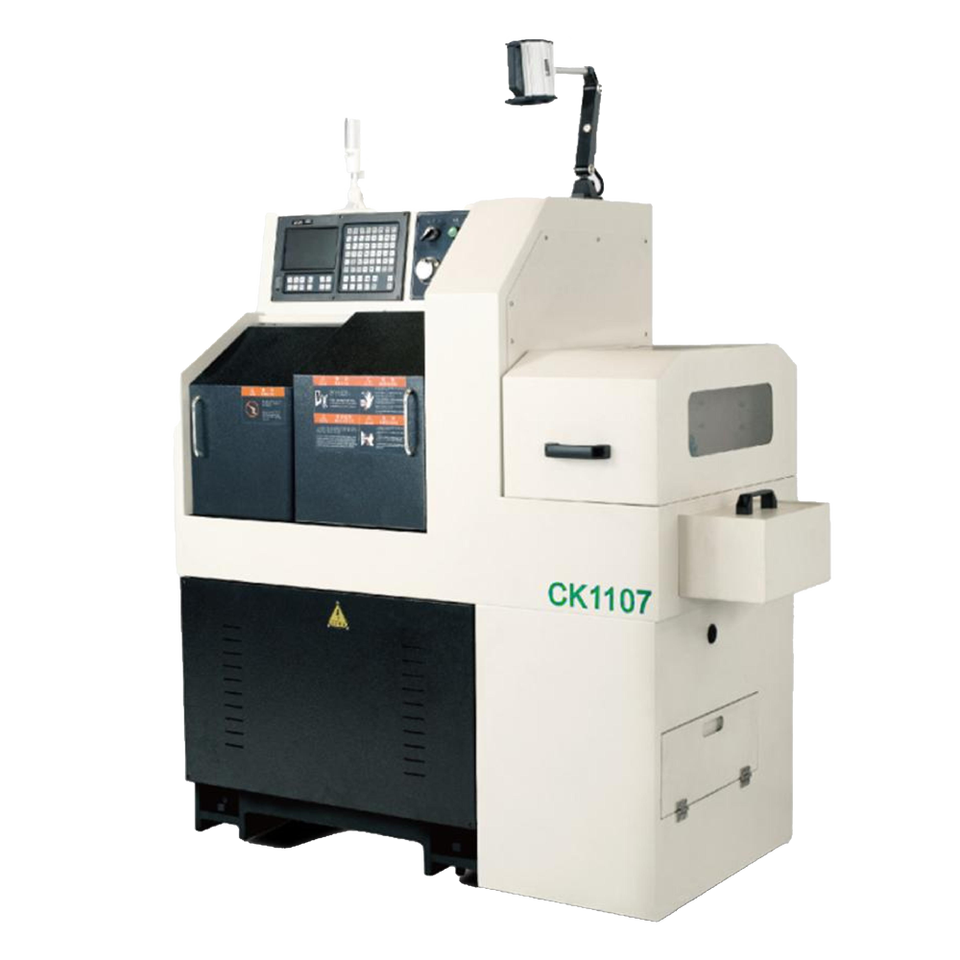

High Quality Swiss Type Cnc Turning Milling Lathe Ck1107 Sliding Head Swiss Machine
Store rating:5.0
(165 reviews)#5Most Popular in Siemens CNC LatheCertificates:CE
Attributes
Horizontaltype
150max. length of workpiece (mm)
0.005positioning accuracy (mm)
0.000repeatability (x/y/z) (mm)
5number of axes
Siemenscnc control system
no. of spindles:Single
tool post stations:6, None
machining capacity:Medium Duty
voltage:380V
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Long Service Life
max. weight of workpiece(kg):0
travel (x axis)(mm):38
travel (z axis)(mm):150
width of bed (mm):350 mm
place of origin:Jiangsu, China
dimension(l*w*h):1570X890X1800mm
brand name:R&C
model number:ck1107
weight:750
5 axis Swiss Machine:High Quality Swiss Type Cnc Turning Milling Lathe
Max processing diameter:26mm Small Teaching Automatic Lathe
Min Setting Value:0.001mm
X Axis Pulse Equivalent:0.0005mm
Max Programming size:±9999.999mm
Cutting Speed:1--4000mm/min
X Axis Fast Feed Rate:18000mm/min
Swiss Type Cnc Lathe:Sliding Head Swiss Machine
Max radial tapping size:M6
Rotating Speed:0-4000r/min
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
type
Horizontal
max. length of workpiece (mm)
150
positioning accuracy (mm)
0.005
repeatability (x/y/z) (mm)
0.000
number of axes
5
cnc control system
Siemens
no. of spindles
Single
tool post stations
6, None
machining capacity
Medium Duty
voltage
380V
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Long Service Life
max. weight of workpiece(kg)
0
travel (x axis)(mm)
38
travel (z axis)(mm)
150
width of bed (mm)
350 mm
place of origin
Jiangsu, China
dimension(l*w*h)
1570X890X1800mm
brand name
R&C
model number
ck1107
weight
750
5 axis Swiss Machine
High Quality Swiss Type Cnc Turning Milling Lathe
Max processing diameter
26mm Small Teaching Automatic Lathe
Min Setting Value
0.001mm
X Axis Pulse Equivalent
0.0005mm
Max Programming size
±9999.999mm
Cutting Speed
1--4000mm/min
X Axis Fast Feed Rate
18000mm/min
Swiss Type Cnc Lathe
Sliding Head Swiss Machine
Max radial tapping size
M6
Rotating Speed
0-4000r/min
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 7 sets
$11,600
>= 8 sets
$11,000
Variations
Select nowmax. swing diameter (mm): 200
200
spindle motor power(kw)
3.7KW(4.96hp)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
