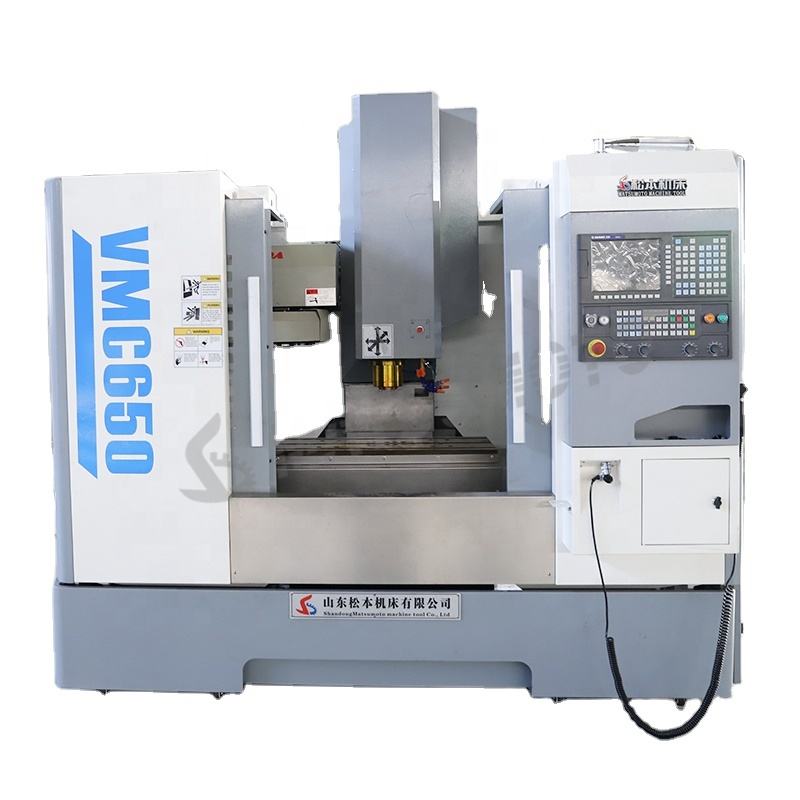

High Speed Volis Spindle 3 Axis FANUC CNC Milling Machine VMC650 Vertical Machining Center BT40 Single High-Accuracy 50-8000rpm

Store rating:5.0

(49 reviews)

Shandong Matsumoto Machine Tool Co., Ltd.

Custom Manufacturer

5 yrs

CN

Attributes

380Vvoltage

700table travel (x) (mm)

400table travel (y) (mm)

500table travel (z) (mm)

±0.01positioning accuracy

±0.008repeatability (x/y/z) (mm)

number of axes:3

machining capacity:Medium Duty

type:VERTICAL

cnc control system:FANUC

spindle taper:BT40

key selling points:High-Accuracy

no. of spindles:Single

warranty:3 Years

video outgoing-inspection:Provided

machinery test report:Provided

place of origin:Shandong, China

max. table load(kg):600

range of spindle speed:50 - 8000

brand name:Matsumoto

model number:VMC650

dimension(l*w*h):2450*2250*2300mm

weight:3800

Table size:800x400mm

Max.worktable load:600kg

T slot(number-width-pitch):3-18x125mm

X axis travel:700(optional 800)mm

Y axis travel:400(optional 500)mm

Z axis travel:500mm

Spindle taper:BT40

Range of revolution:50-8000r/min

Maximum output torque:48N.m

Main motor power:7.5/11kw

High Accuracy and Precision: This VOLIS spindle 3-axis CNC milling machine boasts a positioning accuracy of 0.01mm and a repeatability of 0.008mm, making it ideal for applications requiring high precision and accuracy.
Versatile and Powerful: With a range of spindle speed from 50-8000r/min and a maximum output torque of 48N.m, this machine is suitable for various industries such as building material shops, manufacturing plants, and machinery repair shops.
Heavy-Duty Capacity: The machine has a max. table load of 600kg, ensuring it can handle heavy-duty operations and large workpieces.
Reliable and Durable: The machine is equipped with a 3-year warranty on core components such as bearings, motors, gears, and gearboxes, providing peace of mind for users.
User-Friendly and Customizable: With a range of table sizes (700x400mm, 800x500mm) and spindle taper (BT40), this machine can be customized to meet specific user requirements, making it an ideal choice for various industries.

Service

Free replacement parts & online technical support

Free replacement parts & online technical support

Key attributes

voltage

380V

table travel (x) (mm)

700

table travel (y) (mm)

400

table travel (z) (mm)

500

positioning accuracy

±0.01

repeatability (x/y/z) (mm)

±0.008

number of axes

3

machining capacity

Medium Duty

type

VERTICAL

cnc control system

FANUC

spindle taper

BT40

key selling points

High-Accuracy

no. of spindles

Single

warranty

3 Years

video outgoing-inspection

Provided

machinery test report

Provided

place of origin

Shandong, China

max. table load(kg)

600

range of spindle speed

50 - 8000

brand name

Matsumoto

model number

VMC650

dimension(l*w*h)

2450*2250*2300mm

weight

3800

Table size

800x400mm

Max.worktable load

600kg

T slot(number-width-pitch)

3-18x125mm

X axis travel

700(optional 800)mm

Y axis travel

400(optional 500)mm

Z axis travel

500mm

Spindle taper

BT40

Range of revolution

50-8000r/min

Maximum output torque

48N.m

Main motor power

7.5/11kw

Packaging and delivery

Selling Units

Single item

Single package size

255X235X240 cm

Single gross weight

4000.000 kg

Lead time

Customization options

Customized logo (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

View details

Product descriptions from the supplier

Customizable

1 - 4 sets

$21,000

>= 5 sets

$19,400

Variations

Customization options

Customized logo (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
