High Voltage Switch Comprehensive Medium and High Voltage Switchgear Systems for Enhanced Electrical Distribution and Safety

No reviews yet

$1,000-3,000

Minimum order quantity: 1 piece

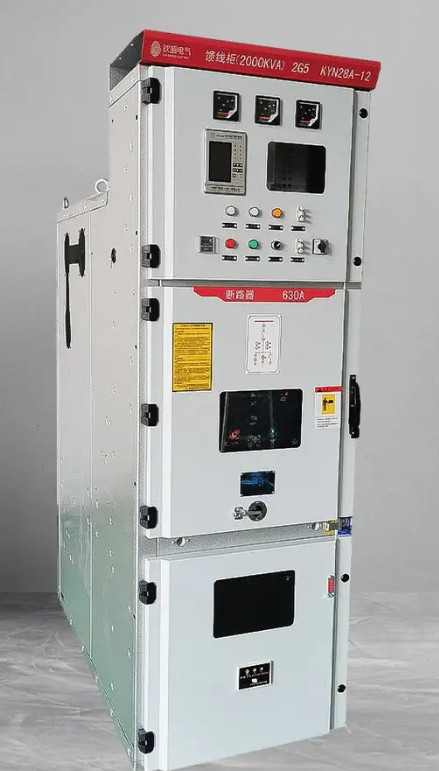

Color

custom

Supplier’s customization ability

Full customization

Key attributes

Rated Current

630A~3150A

IP Level

IP4X,IP2X

Rated Voltage

12 kV

Place of Origin

Shanghai, China

Model Number

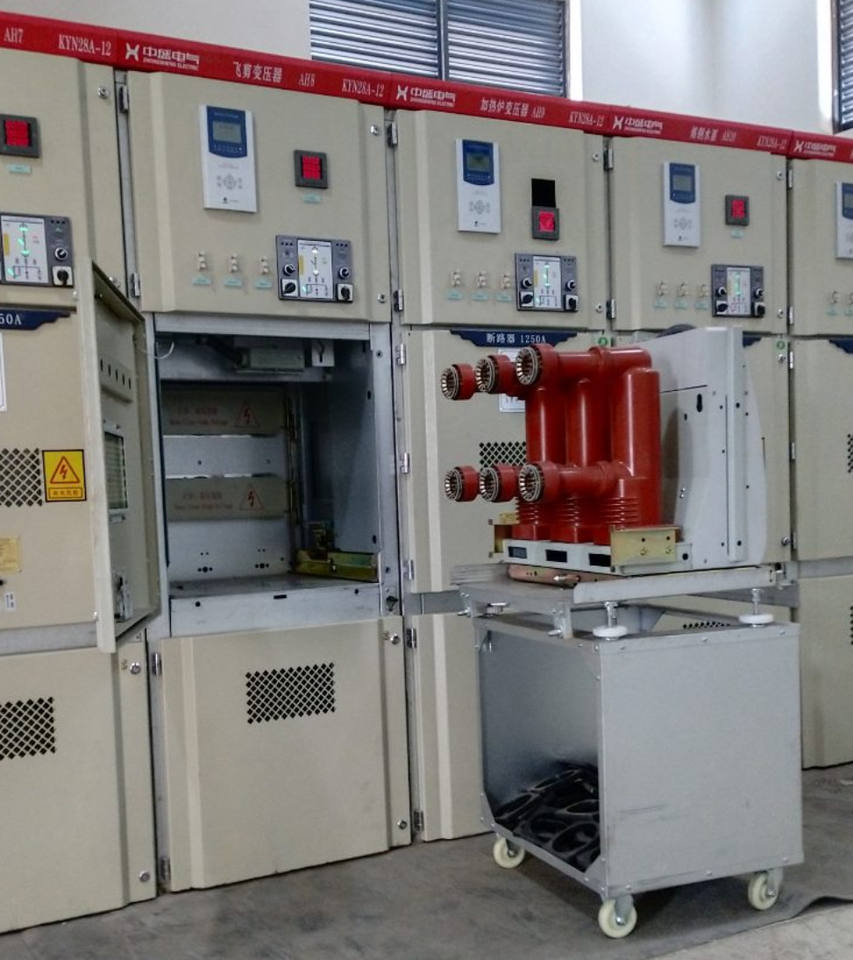

KYN28-12

Application

Power Distribution, Industrial, Indoor, High Voltage, Electric Power Transmission

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Rated Current

630A~3150A

IP Level

IP4X,IP2X

Rated Voltage

12 kV

Place of Origin

Shanghai, China

Model Number

KYN28-12

Application

Power Distribution, Industrial, Indoor, High Voltage, Electric Power Transmission

Frequency

50 Hz

Material

Coating aluminum-zinc plates, copper bars, epoxy r

Size

1000mmX1500mmX2200mm

Rated voltage

3kV,6kV,10kV

Rated short-circuit breaking current

16kA,20kA,25kA,31.5kA,40kA,50kA

BIL

75kV

Rated short-circuit making current

40kA,50kA,63kA,80kA,100kA,125kA

Operation sequence

Test the voltage,Isolate ,Ground,Operate

Gas System insulated gas

Air insulation/dry air/nitrogen

Rated inflation pressure(rel 20 ℃)

Air insulation / Dry air (0.05 MPa) / Nitrogen (0.06 MPa)

Degree of Protection

outer shell is IP4X, when the circuit room door is open is IP2X

Auxiliary circuit rated voltage

DC:24V,36V,48V,60V,110V,220V;AC:110V,220V

Annual air leakage rate %/Y

≤0.5%~1% per year
