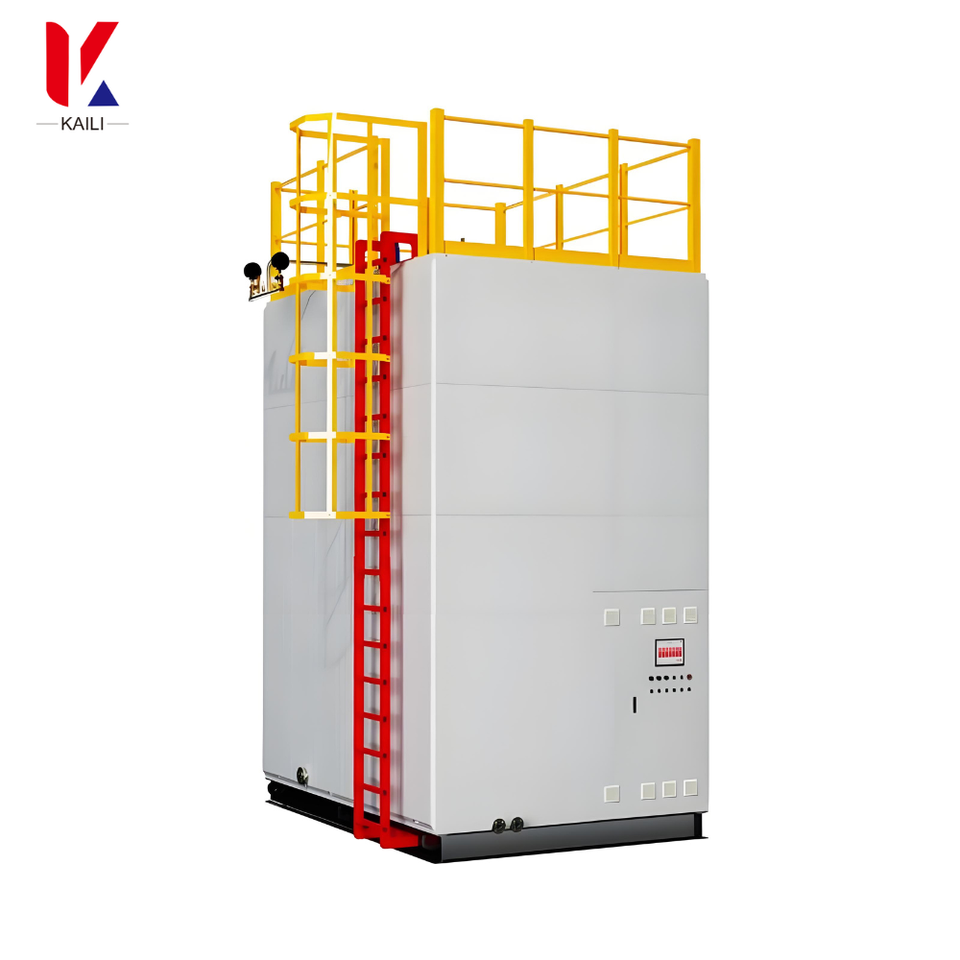

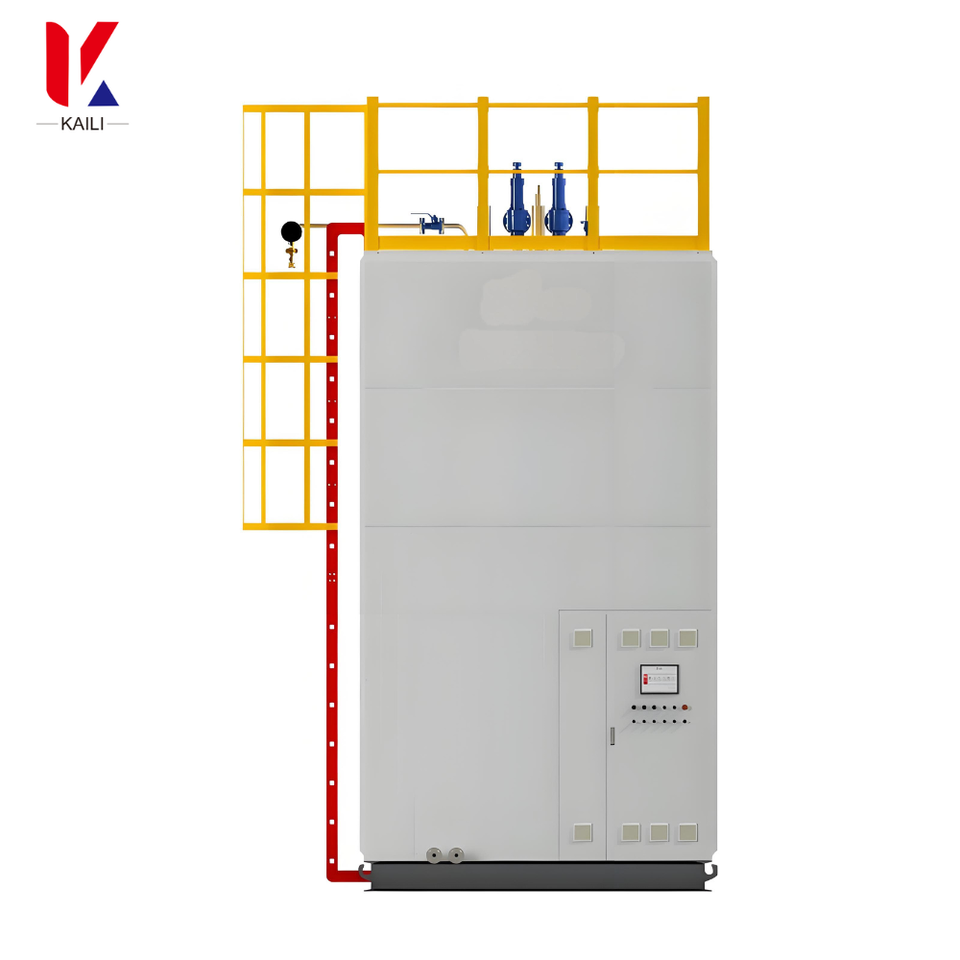

Industrial 10KV High Efficiency Electrode Steam Boiler for Heating Systems
No reviews yet
Attributes
Steam and Hot wateroutput
Industrialusage
ElectricFuel
High Pressurepressure
fire and water tubestructure
Natural Circulationtype
Material:Carbon Steel, Stainless Steel
core components:PLC, Pressure Vessel
key selling points:High-Accuracy, Easy To Operate, High Safety Level, Long Service Life, Patented Product, Automatic, Low Maintenance Cost, Energy Saving
Style:VERTICAL
Warranty:1 Year
video outgoing-inspection:Provided
machinery test report:Provided
Weight (KG):4300
place of origin:Zhejiang, China
brand name:KAILI
dimension(l*w*h):3160x 2060x5240

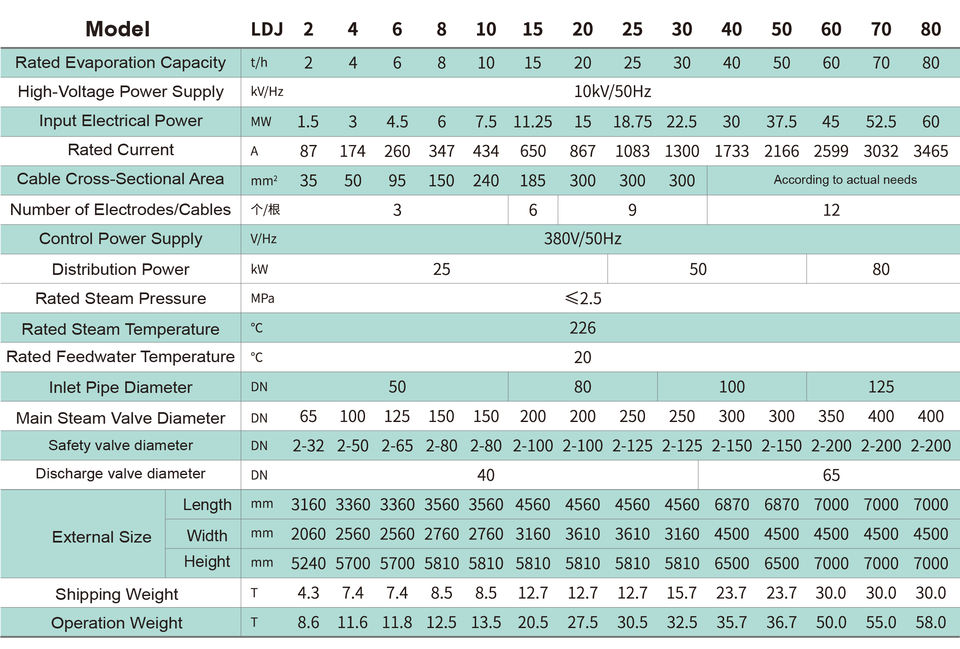

Product name:10KV Electrode steam boiler
Rated evaporation:2-80t/h
Rated steam pressure:≤2.5MPa
NOx emissions:<0 mg/m³
Rated current:87-3465A
Control power supply:380V/50Hz
Rated steam temperature:226℃
Transport weight:4.3-30T
Operating weight:8.6-58T
Applicable Industries:Food & Beverage Factory
Service
1-year warranty
Key attributes
output
Steam and Hot water
usage
Industrial
Fuel
Electric
pressure
High Pressure
structure
fire and water tube
type
Natural Circulation
Material
Carbon Steel, Stainless Steel
core components
PLC, Pressure Vessel
key selling points
High-Accuracy, Easy To Operate, High Safety Level, Long Service Life, Patented Product, Automatic, Low Maintenance Cost, Energy Saving
Style
VERTICAL
Warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
Weight (KG)
4300
place of origin
Zhejiang, China
brand name
KAILI
dimension(l*w*h)
3160x 2060x5240
Product name
10KV Electrode steam boiler
Rated evaporation
2-80t/h
Rated steam pressure
≤2.5MPa
NOx emissions
<0 mg/m³
Rated current
87-3465A
Control power supply
380V/50Hz
Rated steam temperature
226℃
Transport weight
4.3-30T
Operating weight
8.6-58T
Applicable Industries
Food & Beverage Factory
Packaging and delivery
Selling Units
Single item
Single package size
3160X2060X5240 cm
Single gross weight
4300.000 kg
Lead time
Customization options
core components(+ from +$0.10/set/Min. order: 1 set)
output(+ from +$0.10/set/Min. order: 1 set)
pressure(+ from +$0.10/set/Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
$96,429-878,570
Variations
Select nowsteam production: Max. 4t/h
Max. 4t/h
Max. 20t/h
Max. 8t/h
Max. 2t/h
Max. 6t/h
Max. 15t/h
Max. 10t/h
model number
LDJ-2
Customization options
core components+$0.10/set (Min. order: 1 set)
output+$0.10/set (Min. order: 1 set)
pressure+$0.10/set (Min. order: 1 set)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
