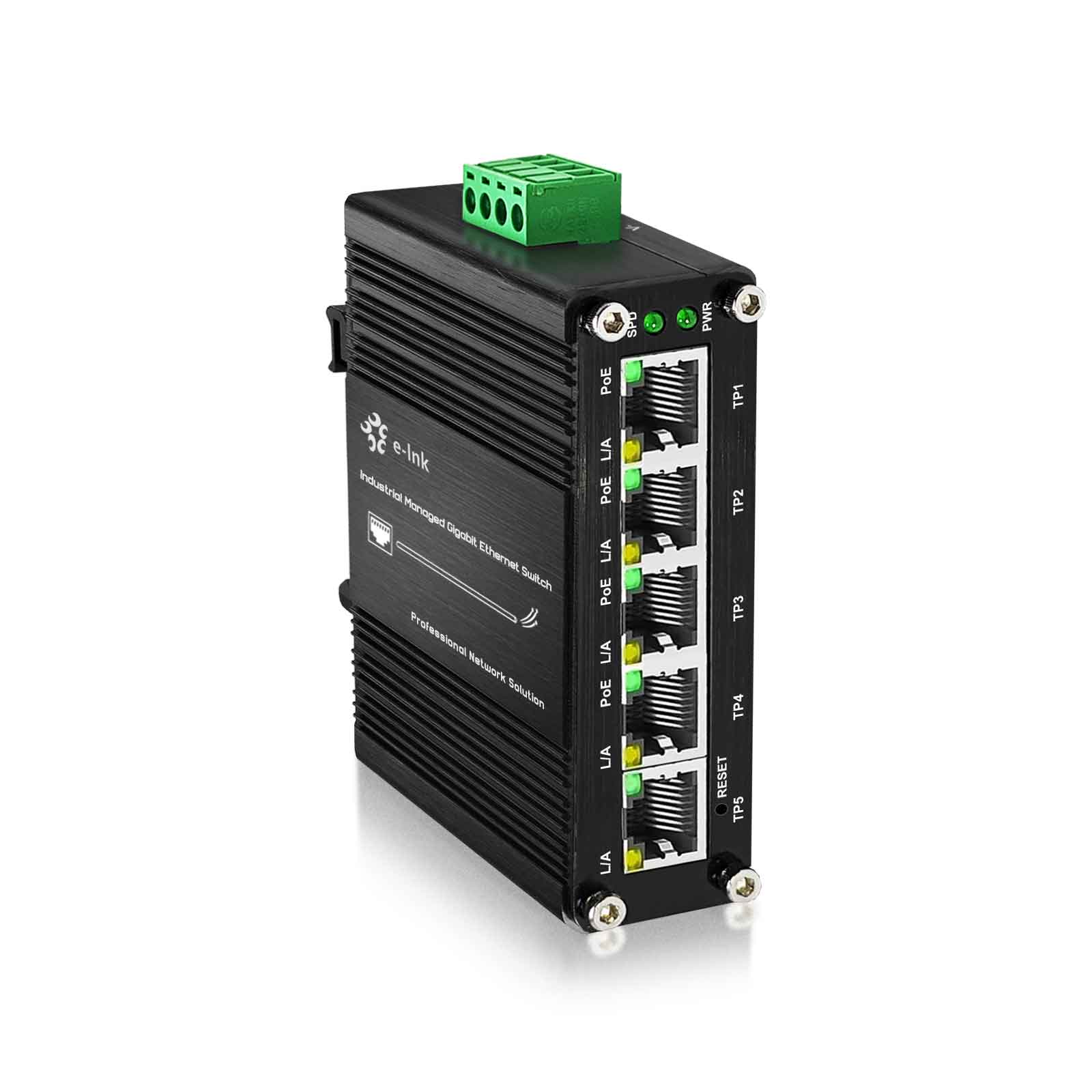

Industrial 4-Port PoE+ Gigabit Switch with 1 Uplink 120W 12-48VDC Web Management for Harsh Environment Network Applications
Store rating:4.8
(90 reviews)certified
certified
Attributes
Otherports
10/100/1000Mbpstransmission rate
VLAN Supportfunction
Full-Duplexcommunication mode
Noprivate mold
Stockproducts status
switch capacity:20 Gbps
place of origin:Guangdong, China
model number:LNK-IMC005GPM
brand name:E-link
Standards:IEEE 802.3at Power over Ethernet Plus PSE
Connector:5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Connector Type:4 ports with 802.3at PoE+ (Ports 1 to 4)

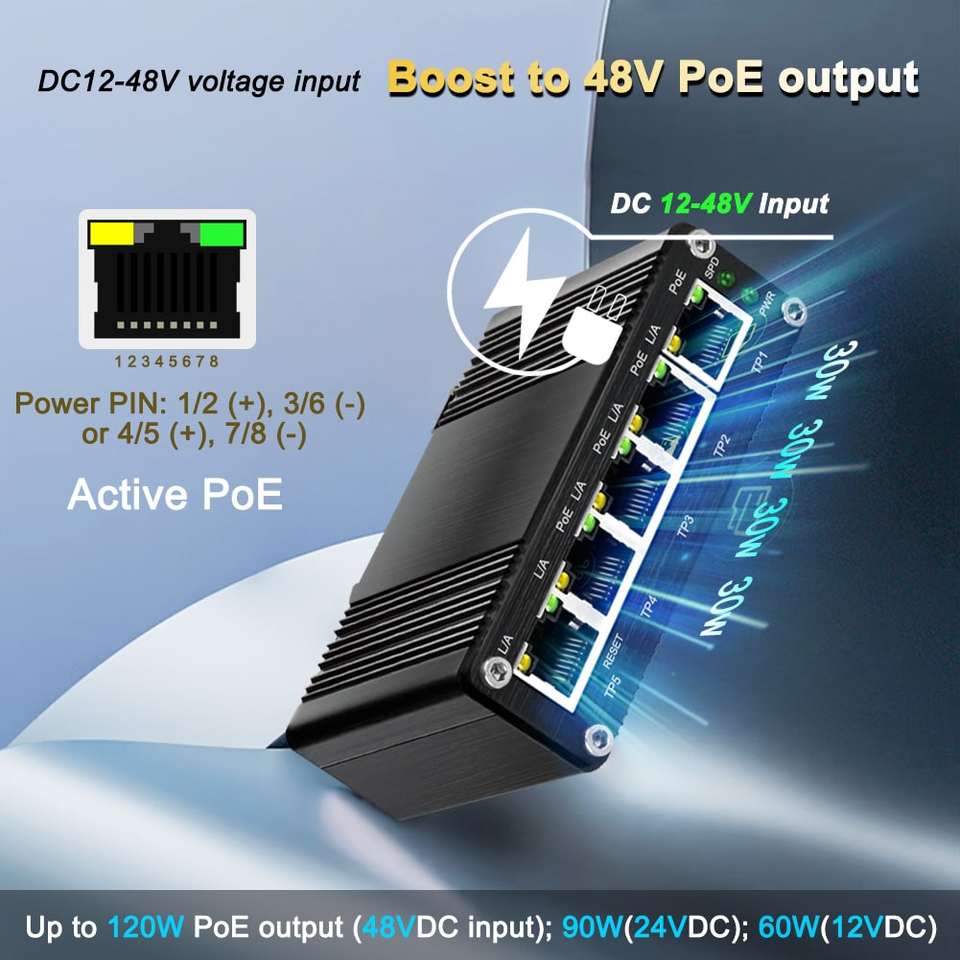

Power Pin Assignment:1/2(+), 3/6(-) or 4/5(+), 7/8(-)
PoE Budget:Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC)
Input Power:12~48VDC (Terminal Block)
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH):95 x 70 x 29 mm
Weight:250g
Casing:Aluminum Case
Key attributes
ports
Other
transmission rate
10/100/1000Mbps
function
VLAN Support
communication mode
Full-Duplex
private mold
No
products status
Stock
switch capacity
20 Gbps
place of origin
Guangdong, China
model number
LNK-IMC005GPM
brand name
E-link
Standards
IEEE 802.3at Power over Ethernet Plus PSE
Connector
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Connector Type
4 ports with 802.3at PoE+ (Ports 1 to 4)
Power Pin Assignment
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
PoE Budget
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC)
Input Power
12~48VDC (Terminal Block)
Operating Temperature
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH)
95 x 70 x 29 mm
Weight
250g
Casing
Aluminum Case
