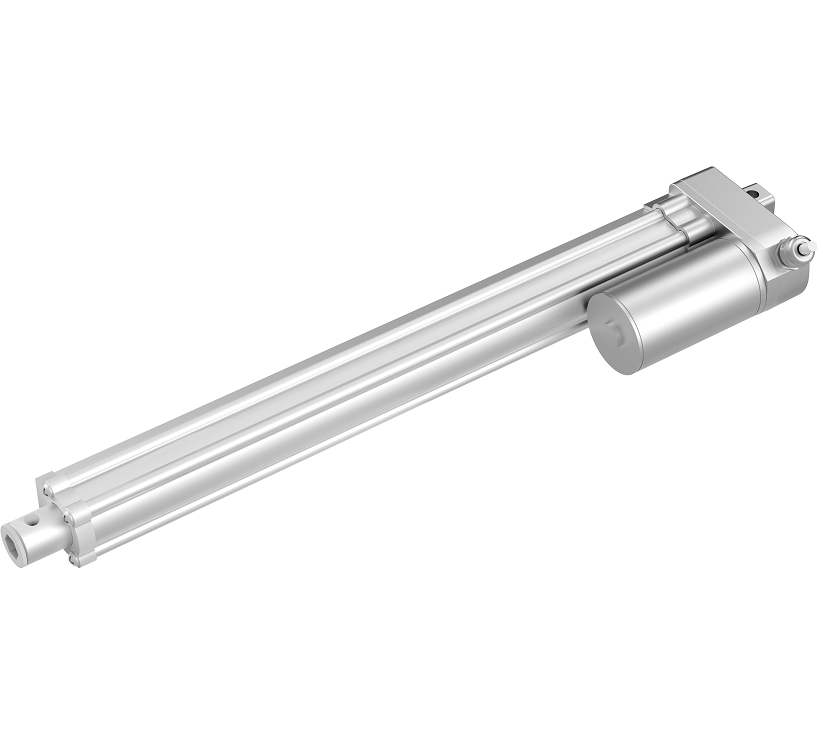

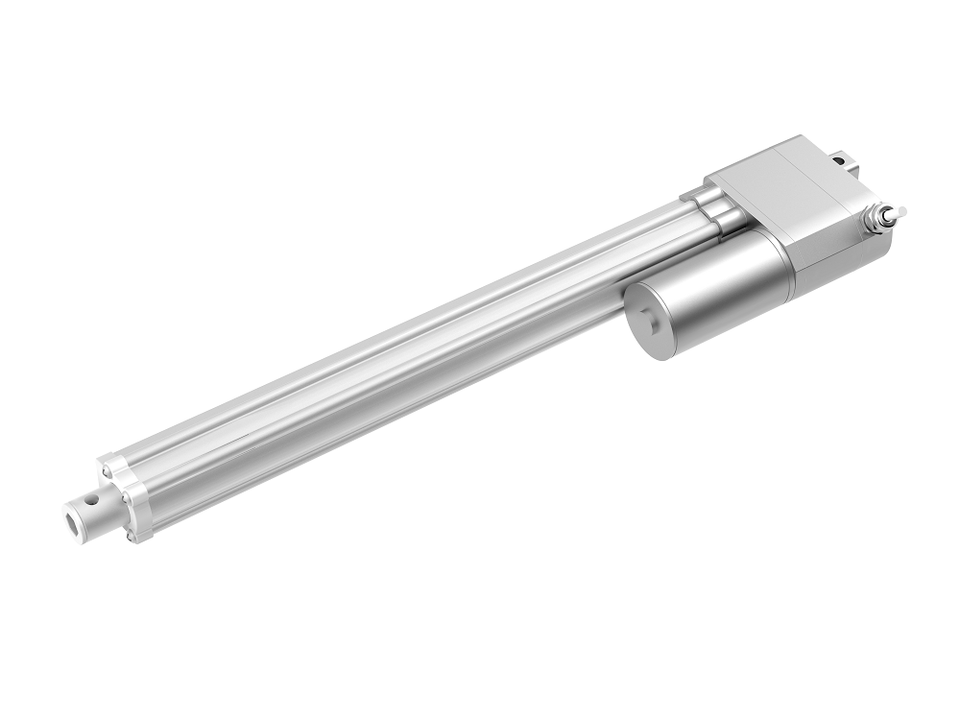

JIECANG 12v 24v High Force Industrial Lift Platform Linear Actuator Electric Cylinder

5.0(1 review)
1378 sold#1 hot selling in UL Certified DC Motors+2 more

Attributes

1Continuous Current(A)
IE 1Efficiency
1Speed(RPM)
Zhejiang, ChinaPlace of Origin
standardFrame
standardMotor Mounting Type
Rated Power:50 W
Rated voltage:DC 12V/24V
Model Number:JC35W8
Brand Name:JIECANG
Commutation:Brushless
Construction:Permanent Magnet
Protect Feature:Waterproof
Speed Rpm:standard
Type:Brushless Motor
Usage:Home Appliance, Smart Home
Warranty:5Years
Product Name:JC35W8
Load in push:1000N,750N,500N,250N,125N,70N
Load in pull:1000N,750N,500N,250N,125N,70N
Motor:12VDC,24VDC
Stroke:25-1020mm
Noise level:≤55dB (environmental noise≤40dB)
Weight:1.5kg
Limit switch:Built-in (electrical)
Max IP grade:IPX6

Service

Custom design in 3 days
Custom design in 3 days
Custom sample in 7 days
Custom sample in 7 days

Key attributes

Continuous Current(A)
1
Efficiency
IE 1
Speed(RPM)
1
Place of Origin
Zhejiang, China
Frame
standard
Motor Mounting Type
standard
Rated Power
50 W
Rated voltage
DC 12V/24V
Model Number
JC35W8
Brand Name
JIECANG
Commutation
Brushless
Construction
Permanent Magnet
Protect Feature
Waterproof
Speed Rpm
standard
Type
Brushless Motor
Usage
Home Appliance, Smart Home
Warranty
5Years
Product Name
JC35W8
Load in push
1000N,750N,500N,250N,125N,70N
Load in pull
1000N,750N,500N,250N,125N,70N
Motor
12VDC,24VDC
Stroke
25-1020mm
Noise level
≤55dB (environmental noise≤40dB)
Weight
1.5kg
Limit switch
Built-in (electrical)
Max IP grade
IPX6

Packaging and delivery

Selling Units
Single item

Lead time

Customization options

IP Rating (Min. order: 1,000 pieces)
View details

Product descriptions from the supplier

Customizable
5 - 99 pieces
$30
100 - 499 pieces
$2286
>= 500 pieces
$20

Variations

Select now
Customization options
IP Rating (Min. order: 1000 pieces)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
