Attributes

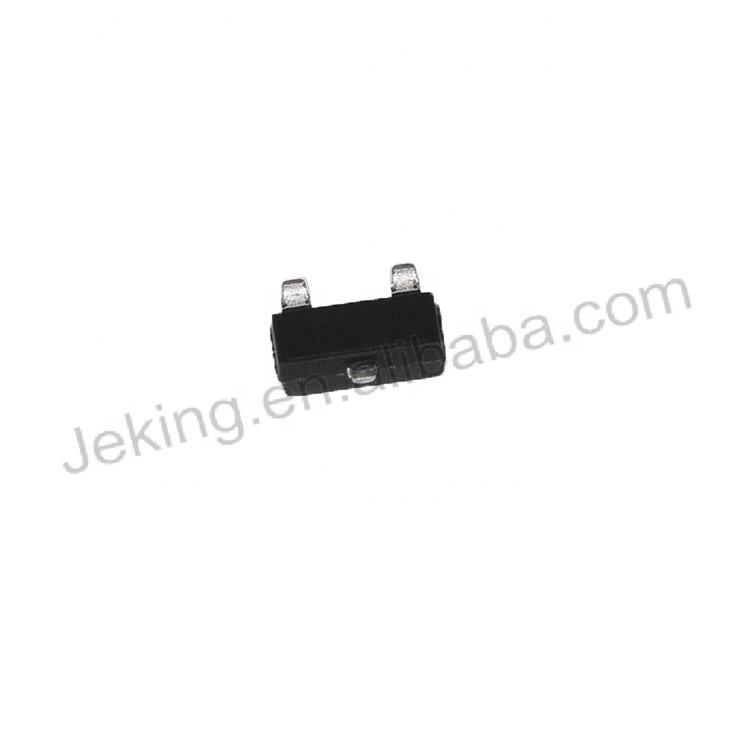

MMUN2233LT1GModel Number
Bipolar Transistors - BJTType
JekingBrand Name
SMD/SMTPackage Type
Digital Transistors 100mA 50V BRT NPNDescription
Guangdong, ChinaPlace of Origin
Package / Case:SOT-23-3
Operating Temperature:- 55 C, + 150 C
Series:MMUN2233L
D/C:Newest
Application:Standard
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (max):50V
Vce Saturation (Max) @ Ib, Ic:250mV
Current - Collector Cutoff (Max):500nA
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 5mA, 10V
Power - Max:246mW
Mounting Type:SMD/SMT
Resistor - Base (R1):4.7 kOhms
Resistor - Emitter Base (R2):47 kOhms
FET Feature:Standard
Drain to Source Voltage (Vdss):Standard
Vgs(th) (Max) @ Id:Standard
Frequency:Standard
Current Rating (Amps):Standard
Noise Figure:Standard
Power - Output:Standard
Voltage - Rated:Standard
Drive Voltage (Max Rds On, Min Rds On):Standard
Vgs (Max):Standard
Configuration:Single
Input:Standard
NTC Thermistor:Standard
Voltage - Breakdown (V(BR)GSS):Standard
Current Drain (Id) - Max:Standard
Voltage - Cutoff (VGS off) @ Id:Standard
Resistance - RDS(On):Standard
Voltage - Output:Standard
Voltage - Offset (Vt):Standard
Current - Gate to Anode Leakage (Igao):Standard
Current - Valley (Iv):Standard
Current - Peak:100 mA
Mounting Type:SMD/SMT
Product Category:Digital Transistors
DC Collector/Base Gain hfe Min:80, 200
Mounting Style:SMD/SMT
Package / Case:SOT-23-3
Minimum Operating Temperature:- 55 C
Series:MMUN2233L
Packaging:Reel, Cut Tape
Product Type:Digital Transistors
Pd - Power Dissipation:246 mW
Subcategory:Transistors
Selling Units:Single item
