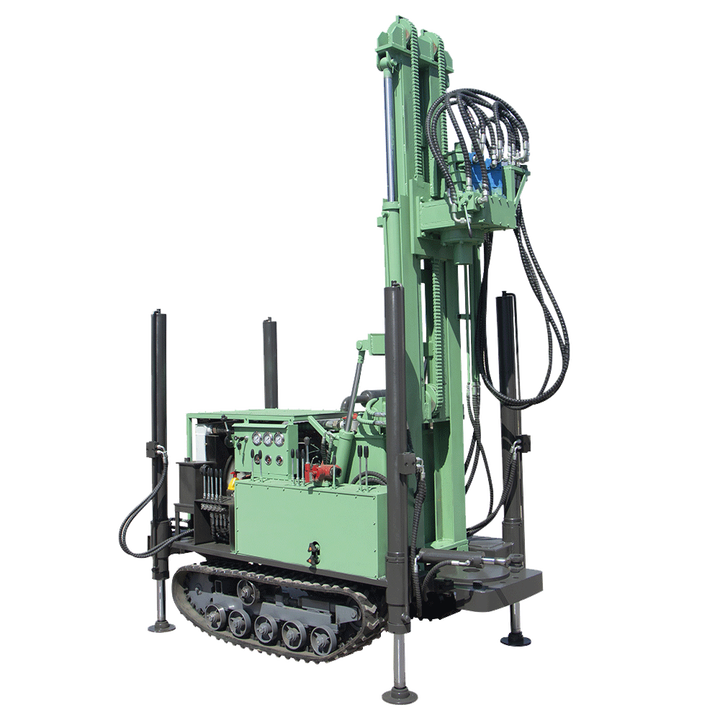

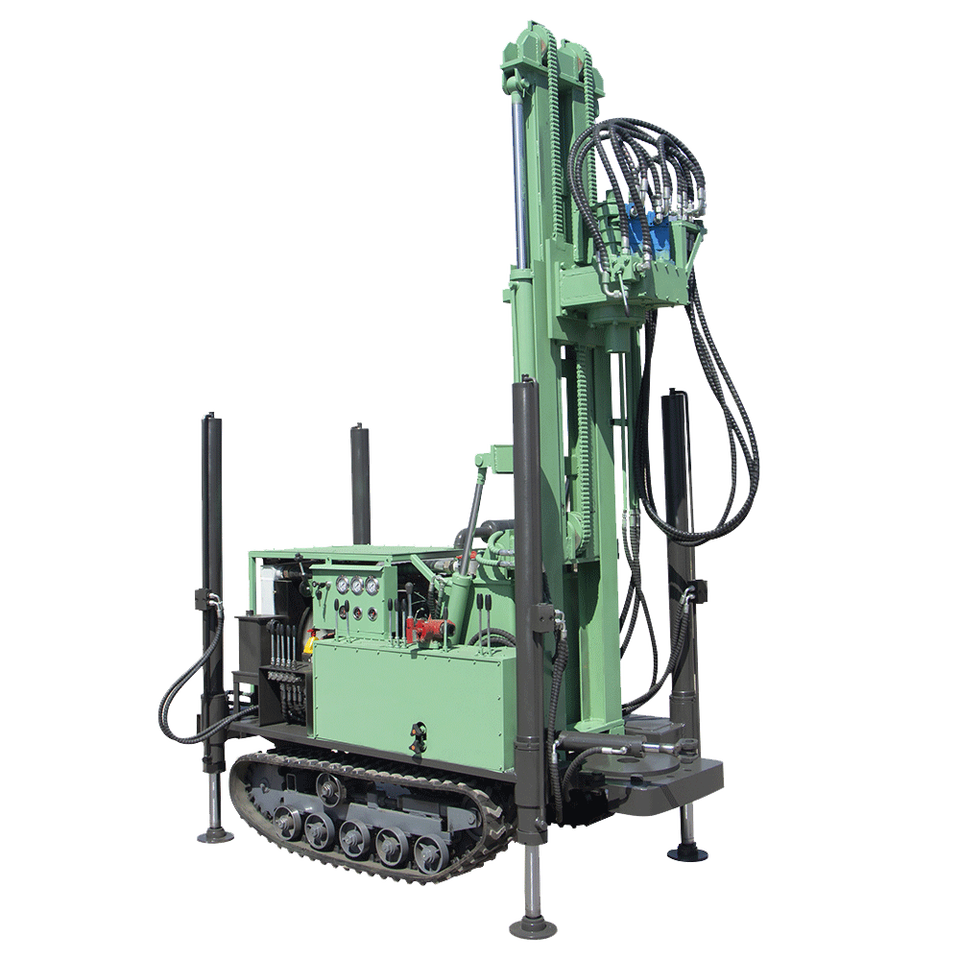

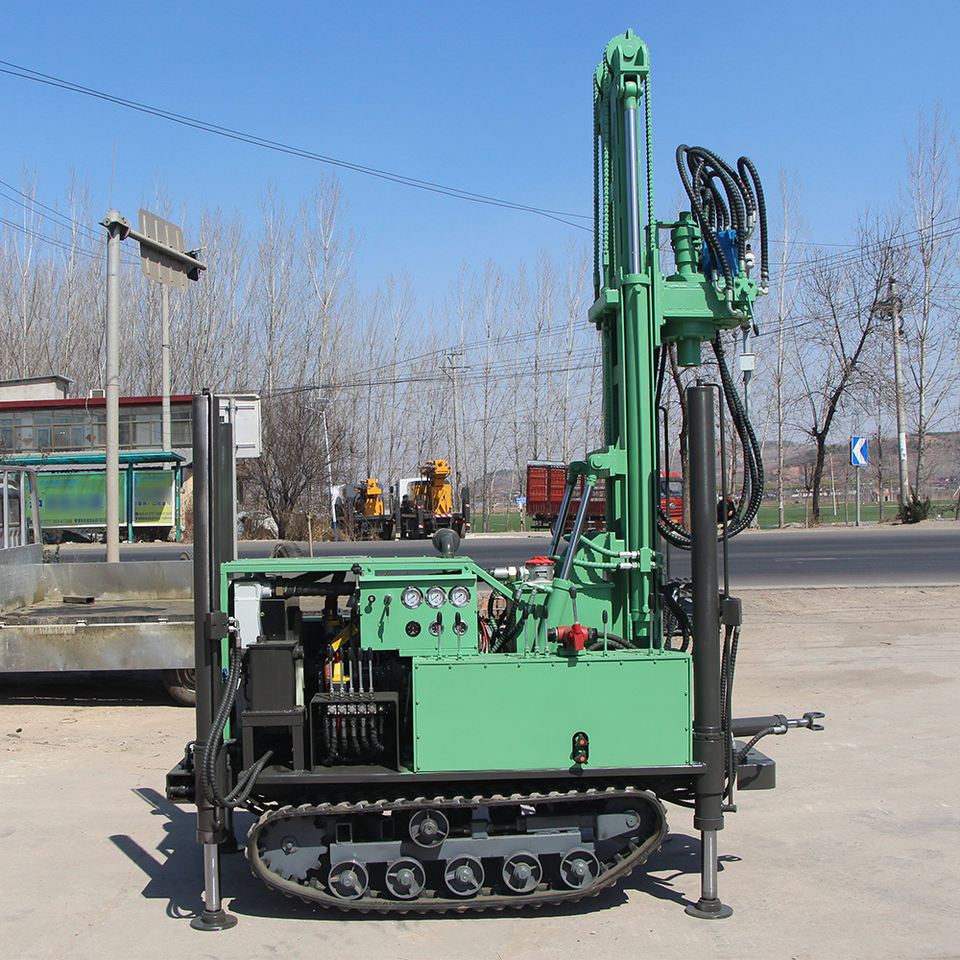

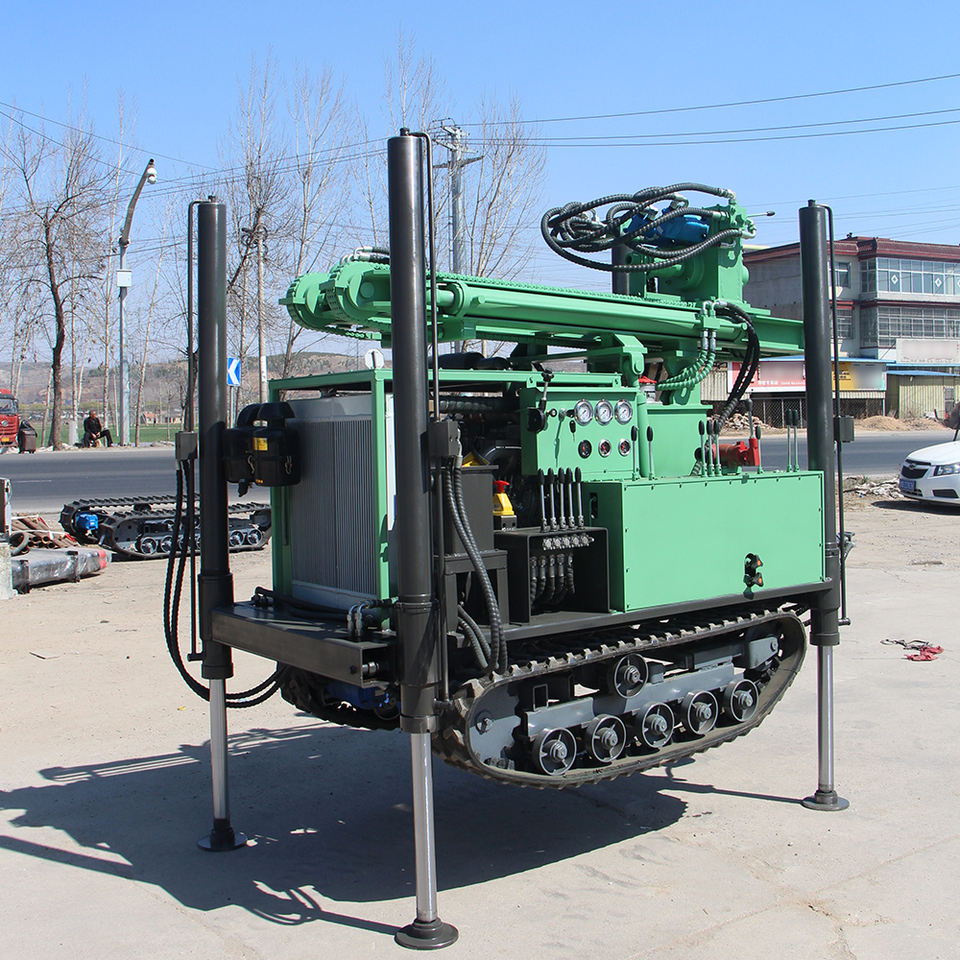

Jutop Crawler Portable Diesel-Powered Pneumatic Rotary Water Well Drilling Rig Pump Motor 200m Depth for Efficient Borehole
No reviews yet#15Most Popular in Pneumatic Rock Drill Mine Drilling Rig
Attributes
Water WellUsage
pneumatic rock drillType
Max.200mDrilling Depth
100 mm, 500mmDrilling Diameter
DieselPower Type
24 VVoltage
Place of Origin:Shandong, China
Weight:4500 KG
Warranty:1 Year

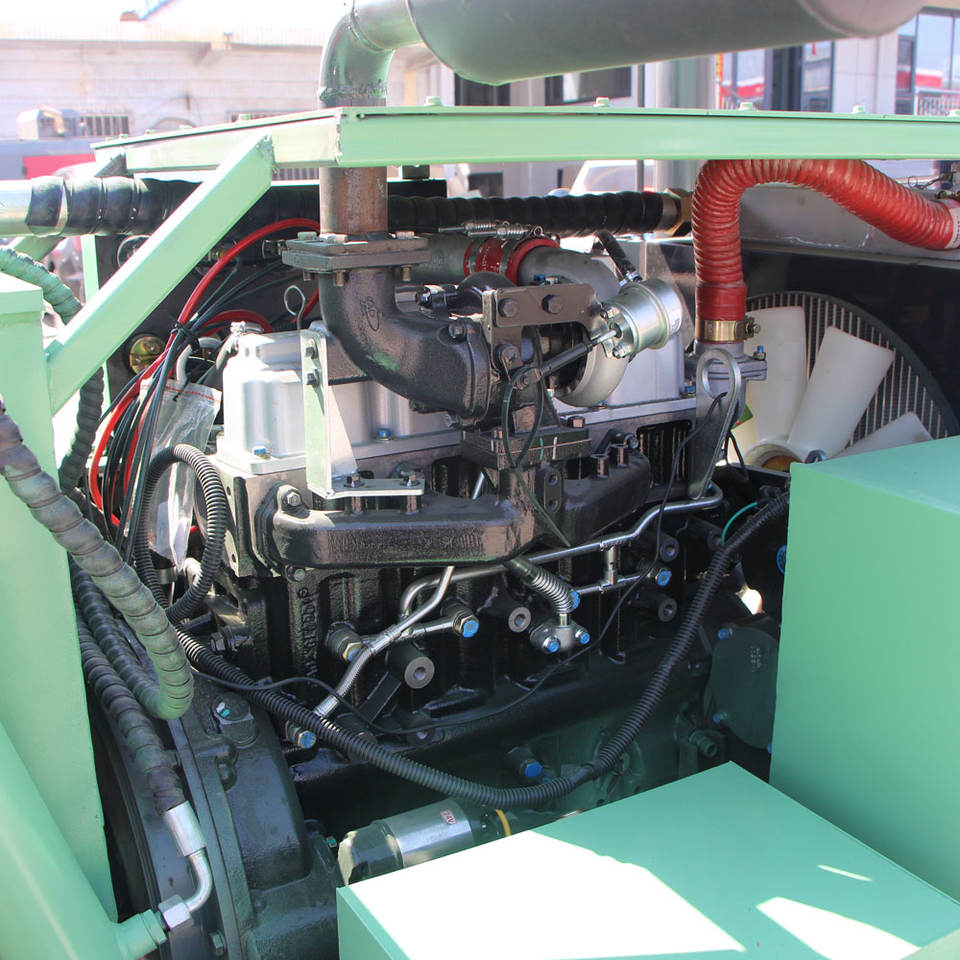

Core Components:Engine, Pump, Motor
Key Selling Points:Competitive Price
Brand Name:Jutop
Dimension(L*W*H):3900*1630*2250
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Mobility:Crawler
One-time advance length(m):3.3
Walking speed(km/h):2.5
Gradeability(Max.):30
Working air pressure(MPA):1.7~2.5MPa
Air consumption(m³/min):17-31
Swing speed(rpm):45-70
Drillpipe diameter(mm):76 /89
Drill pipe length(m):1.5m 2.0m 3.0m
Swing torque(N.m):3200-4600
Water Well Drilling Rig:Precision Engineering
Service
Free replacement parts & online technical support
Key attributes
Usage
Water Well
Type
pneumatic rock drill
Drilling Depth
Max.200m
Drilling Diameter
100 mm, 500mm
Power Type
Diesel
Voltage
24 V
Core Components
Engine, Pump, Motor
Warranty
1 Year
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Key Selling Points
Competitive Price
Place of Origin
Shandong, China
Weight
4500 KG
Brand Name
Jutop
Dimension(L*W*H)
3900*1630*2250
Mobility
Crawler
One-time advance length(m)
3.3
Walking speed(km/h)
2.5
Gradeability(Max.)
30
Working air pressure(MPA)
1.7~2.5MPa
Air consumption(m³/min)
17-31
Swing speed(rpm)
45-70
Drillpipe diameter(mm)
76 /89
Drill pipe length(m)
1.5m 2.0m 3.0m
Swing torque(N.m)
3200-4600
Water Well Drilling Rig
Precision Engineering
Packaging and delivery
Selling Units
Single item
Single package size
390X163X225 cm
Single gross weight
4500.000 kg
Lead time
Customization options
Drilling Diameter(+ from /Min. order: 1 set)
Drilling Depth(+ from /Min. order: 1 set)
Name plate(+ from /Min. order: 1 set)
View details
Customizable
Minimum order quantity: 1 set
$1,568
