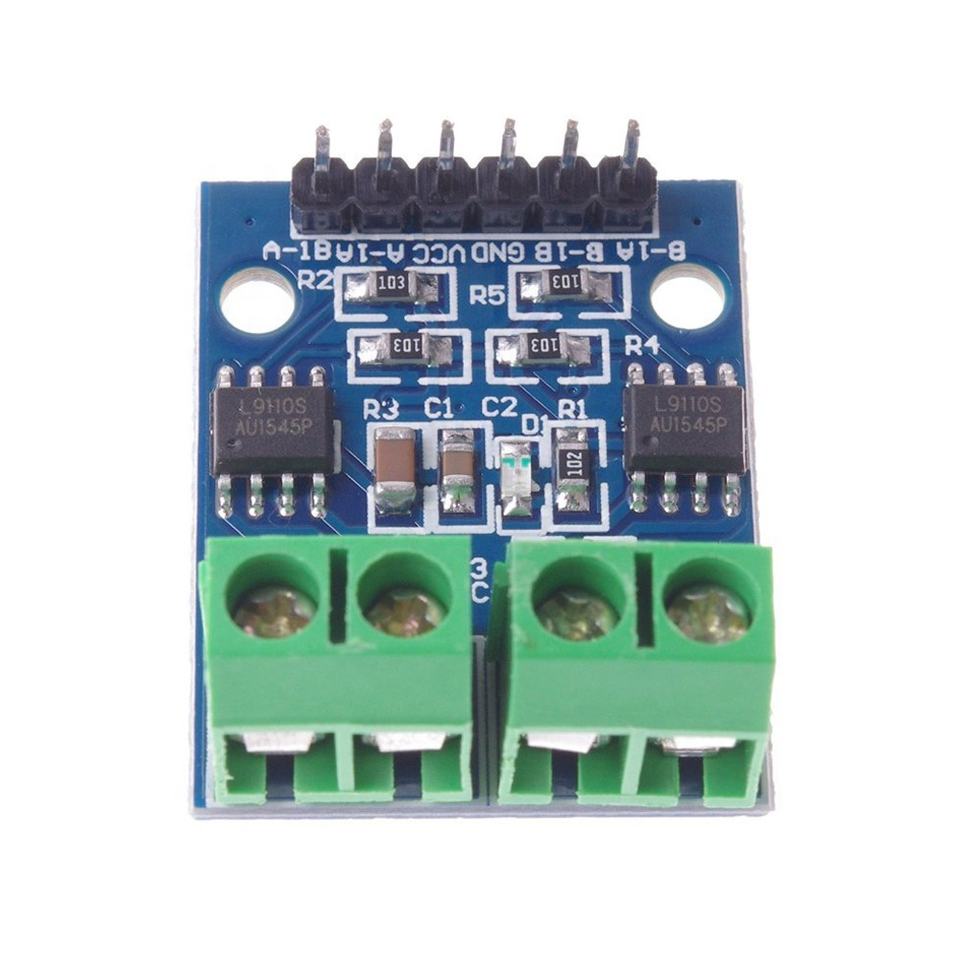

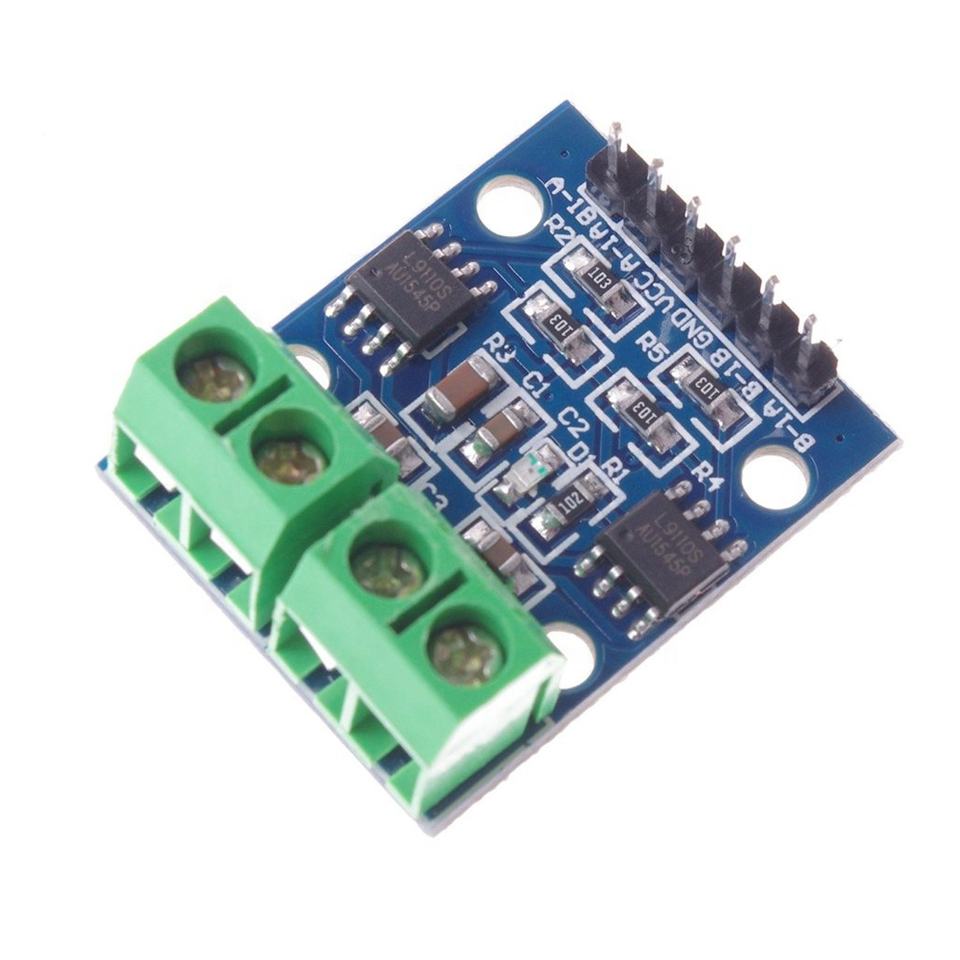

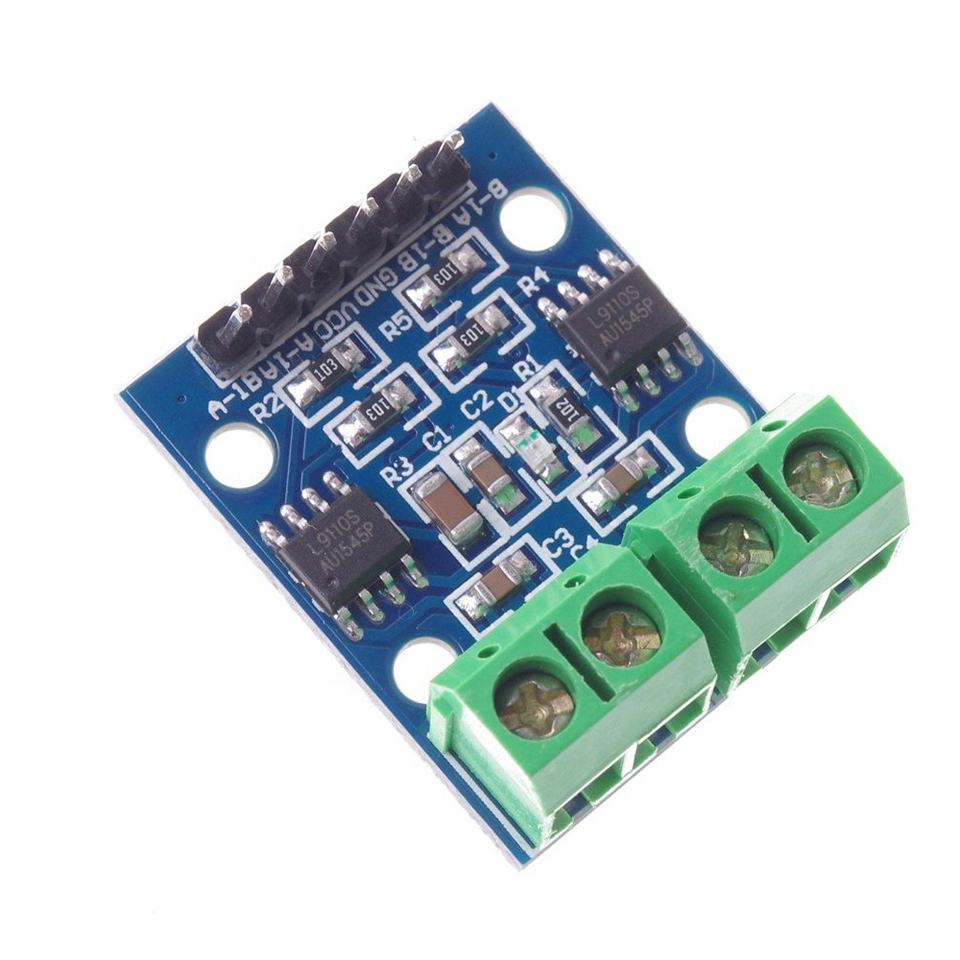

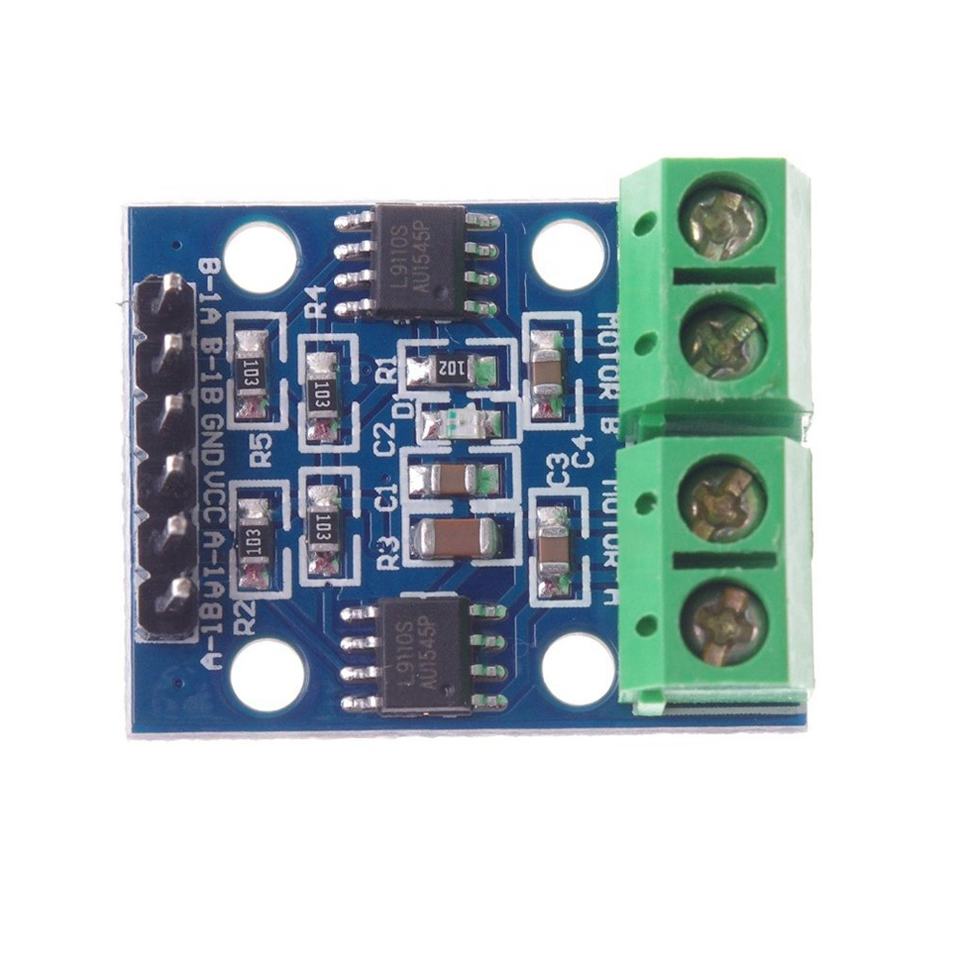

L9110S H-bridge Stepper Motor Dual DC Stepper Motor Driver Controller Board Module L9110S L9110

No reviews yet

Shenzhen Eshinede Technology Co., Ltd.

7 yrs

CN

High-Current Stepper Motor Control: The L9110S dual DC stepper motor driver controller board module is designed to handle high current output, with each channel capable of delivering up to 800mA of continuous current, making it suitable for various stepper motor applications.
Wide Operating Voltage Range: This module can operate within a wide voltage range of 2.5-12V, allowing for flexibility in powering stepper motors from various power sources.

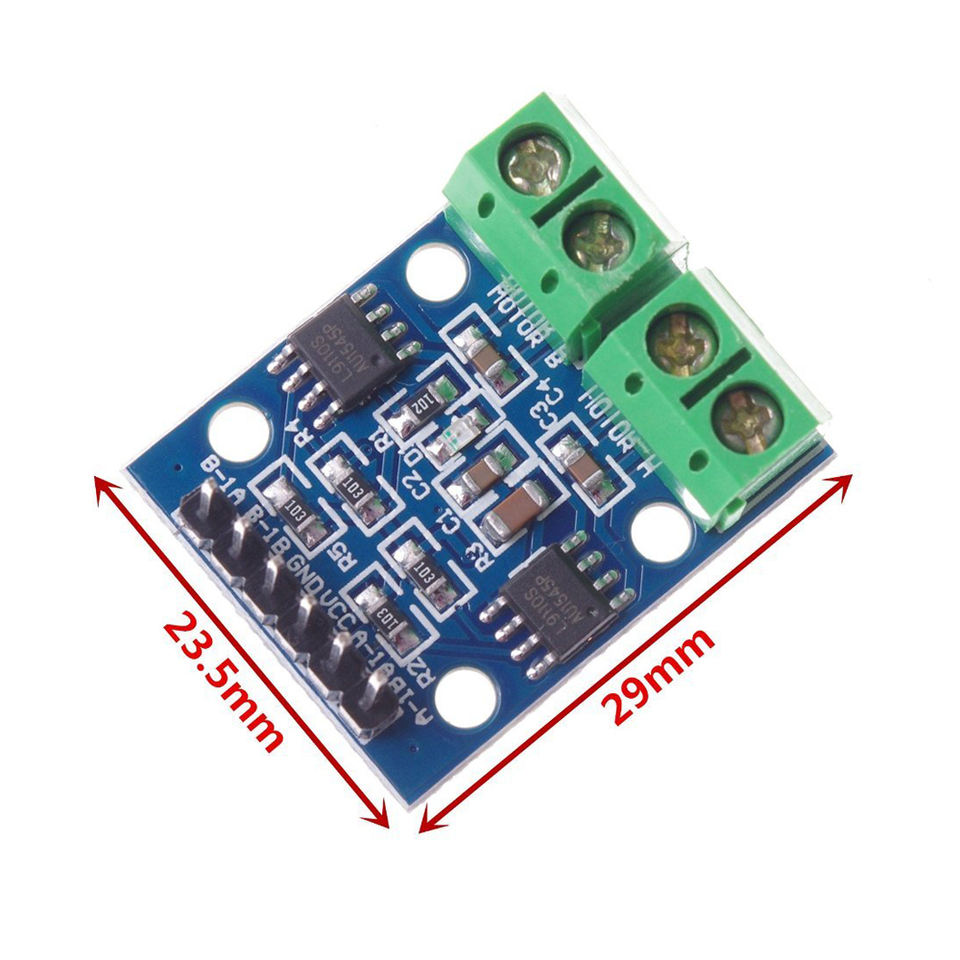

Compact Design: Measuring 29.2mm x 23mm in size, this module is compact and ideal for use in space-constrained applications.
Easy Integration: With TTL/CMOS output level compatibility, the L9110S can be directly connected to CPU, making integration with existing systems straightforward for users.
High-Temperature Tolerance: The module operates within a temperature range of 0°C to +80°C, ensuring reliable performance in various environments, including those with high ambient temperatures.

Key attributes

Mounting Type

Wiring

Model Number

ET1323

Type

Driver

Brand Name

EZONEDE

Package / Case

Bag

Description

DC Stepper Motor Driver Controller Board

Place of Origin

Guangdong, China

Application

stepper motor

Series

Stepper Motor Driver

Features

H-bridge

Size / Dimension

29.2(mm)x23(mm)

Configuration

6Pins

Current

Each channel has 800mA

Voltage

2.5-12V

Cross Reference

DC Stepper Motor Driver Controller

Product name

L9110S Dual DC Stepper Motor Driver Controller Board Module

Condition

New 100%

Module color

Blue

On board

two L9110S motor control chip

Power supply voltage

DC2.5-12V

Each channel

800mA continuous current output

TTL/CMOS output level compatible

can be connected directly to the CPU

Working temperature

0 ℃~+80 ℃

Size

29.2(mm)x23(mm)
