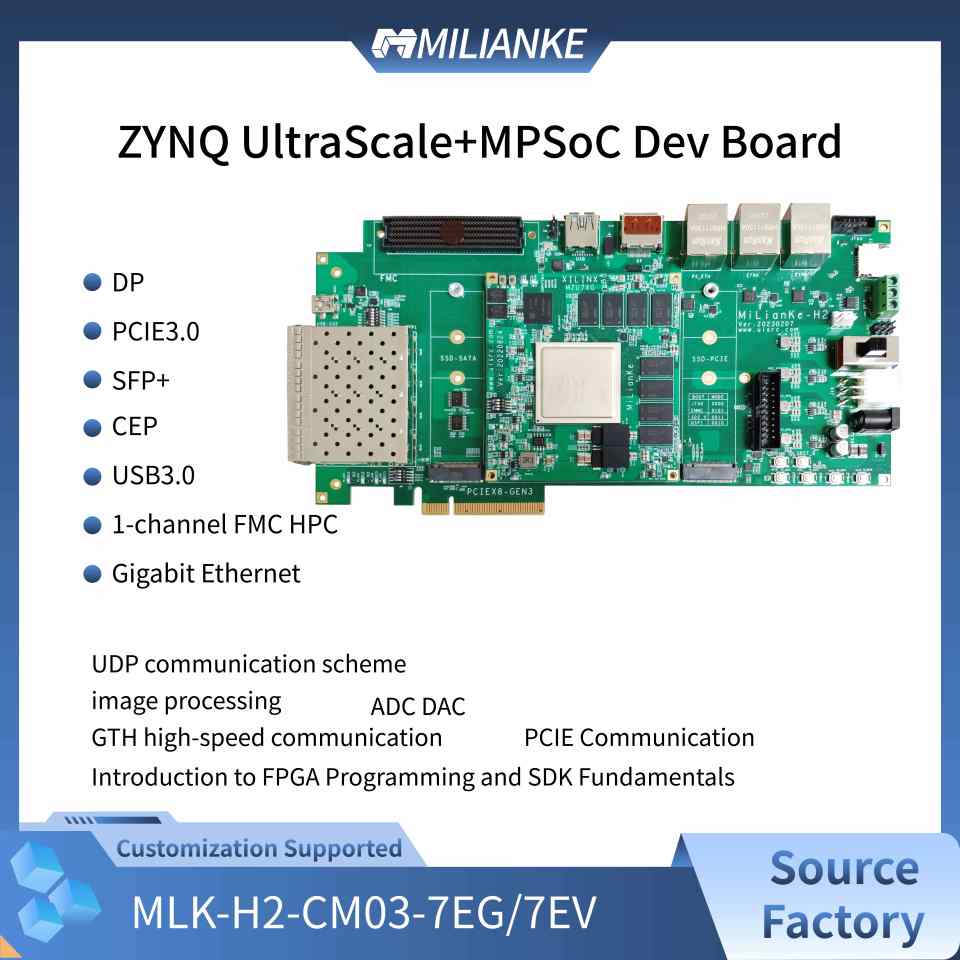

MILIANKE FPGA Development Board ZYNO UltraScale+MPSoC XCZU7EV/7EG-MLK-H2 PCIe SFP FMC DDR4 4GB EMMC 8GB Cortex-A53 USB3.0

Name: MILIANKE FPGA Development Board ZYNO UltraScale+MPSoC XCZU7EV/7EG-MLK-H2 PCIe SFP FMC DDR4 4GB EMMC 8GB Cortex-A53 USB3.0
Brand: Nanjing Weiyun Electronic Technology Co., Ltd.
SKU: 1601665385677
Price: 1277 USD
Availability: InStock

No reviews yet#9Most Popular in Development Boards Evaluation Platforms

Nanjing Weiyun Electronic Technology Co., Ltd.

1 yr

Attributes

Not ApplicableMain Purpose

YesEmbedded

Not ApplicableOutputs and Type

LinuxOperating System

Evaluation PlatformBoard Type

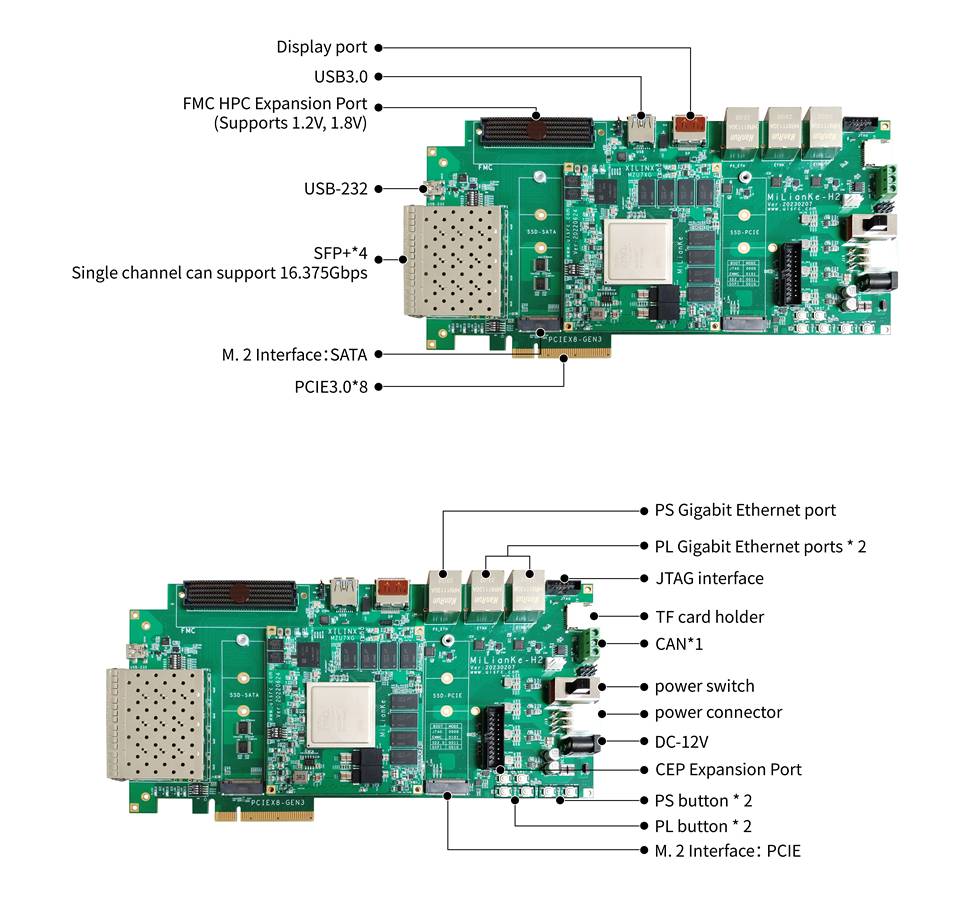

USB-UART/PCIE,USB3.0/CAN,SFP+/SDIO/ETHCommunication Interface

Type:Development Board

Core Processor:Cortex-A53/Cortex-R5

Interface:/

Description:ZYNO UltraScale+MPSoC Dev Board

Model Number:MLK-H2-CM03-7EG/7EV

Place of Origin:Jiangsu, China

Brand Name:MILIANKE

Series:ZYNO UltraScale+MPSoC

Mfg. Date Code:/

Package:FFVC1156

Function:Video capture, video output, consumer electronics

Utilized IC / Part:/

Number of A/D Converters:/

Number of Bits:/

Sampling Rate (Per Second):/

Data Interface:/

Input Range:/

Amplifier Type:/

Output Type:/

Max Output Power x Channels @ Load:/

Voltage - Supply:12V/3A

Power - Output:/

Voltage - Output:/

Current - Output:/

Voltage - Input:/

Frequency - Switching:/

Platform:/

Mounting Type:/

Current - Output / Channel:/

Features:/

Channels per IC:/

Regulator Type:/

-3db Bandwidth:/

Current - Supply (Main IC):/

Voltage - Supply, Single/Dual (±):/

Sensor Type:/

Sensitivity:/

Module/Board Type:/

Maximum Number Of IC's:/

Maximum Time:/

Sensing Range:/

Mounting Type:PCB

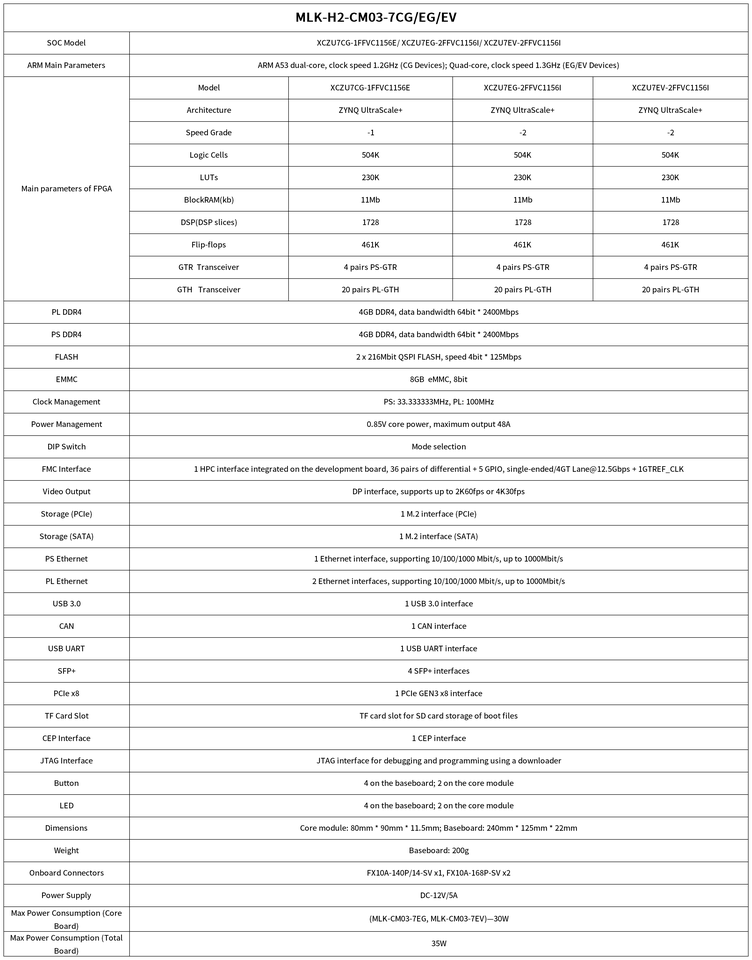

SOC model:XCZU7EG-2FFVC1156I/XCZU7EV-2FFVC1156I

Logic Cells:504K

Block RAM:11Mb

DSP(DSP slices):1728

CLB Flip-Flops:461K

CLB LUTS:230K

PS DDR4:4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit

PL DDR4:4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit

FLASH:(256Mbit QSPI FLASH)*2 , Speed 4bit*125Mbps

EMMC:8GB/16GB

Product spotlights

ZYNQ UltraScale+ SOC: The ZYNQ UltraScale+ MPSoC architecture provides advanced processing and real-time control capabilities, suitable for complex and high-performance applications.

4GB DDR4 Memory: With 4GB of DDR4 memory, the board ensures fast data access and sufficient capacity for demanding development and testing tasks.

8GB EMMC Storage: The 8GB eMMC storage offers reliable and fast read/write speeds, enhancing the overall performance and responsiveness of the system.

PCIe GEN3 x8 Interface: The PCIe GEN3 x8 interface allows for high-speed data transfer and expansion, supporting a wide range of peripherals and add-on cards.

Key attributes

Main Purpose

Not Applicable

Embedded

Yes

Outputs and Type

Not Applicable

Operating System

Linux

Board Type

Evaluation Platform

Communication Interface

USB-UART/PCIE,USB3.0/CAN,SFP+/SDIO/ETH

Mounting Type

PCB

Type

Development Board

Core Processor

Cortex-A53/Cortex-R5

Interface

Description

ZYNO UltraScale+MPSoC Dev Board

Model Number

MLK-H2-CM03-7EG/7EV

Place of Origin

Jiangsu, China

Brand Name

MILIANKE

Series

ZYNO UltraScale+MPSoC

Mfg. Date Code

Package

FFVC1156

Function

Video capture, video output, consumer electronics

Utilized IC / Part

Number of A/D Converters

Number of Bits

Sampling Rate (Per Second)

Data Interface

Input Range

Amplifier Type

Output Type

Max Output Power x Channels @ Load

Voltage - Supply

12V/3A

Power - Output

Voltage - Output

Current - Output

Voltage - Input

Frequency - Switching

Platform

Mounting Type

Current - Output / Channel

Features

Channels per IC

Regulator Type

-3db Bandwidth

Current - Supply (Main IC)

Voltage - Supply, Single/Dual (±)

Sensor Type

Sensitivity

Module/Board Type

Maximum Number Of IC's

Maximum Time

Sensing Range

SOC model

XCZU7EG-2FFVC1156I/XCZU7EV-2FFVC1156I

Logic Cells

504K

Block RAM

11Mb

DSP(DSP slices)

1728

CLB Flip-Flops

461K

CLB LUTS

230K

PS DDR4

4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit

PL DDR4

4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit

FLASH

(256Mbit QSPI FLASH)*2 , Speed 4bit*125Mbps

EMMC

8GB/16GB

Packaging and delivery

Selling Units

Single item

Lead time

Product descriptions from the supplier

Report abuse

Minimum order quantity: 1 piece

$1,277-1,492

Variations

Select now

Specification

MLK-H2-CM03-7EG

MLK-H2-CM03-7EV

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

4 interest-free payments with

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Quantity (pieces)	1 - 1	> 1
Lead time (days)	15	To be negotiated
