MOSRAC S series hollow absolute ID10mm OD36mm height 7mm high repeatability multiturn 17bits 0.05 accuracy magnetic Encoder

Name: MOSRAC S series hollow absolute ID10mm OD36mm height 7mm high repeatability multiturn 17bits 0.05 accuracy magnetic Encoder
Brand: Shenzhen Mosrac Motor Co., Ltd.
SKU: 1601211595694
Price: 28 USD
Availability: InStock

No reviews yet#3 most popular in Magnetic Encoder

Shenzhen Mosrac Motor Co., Ltd.

3 yrs

High Precision Encoding: The MOSRAC S series hollow absolute encoder offers 17 bits of resolution, resulting in a high accuracy of 0.05, making it ideal for applications where precision is crucial.
Multi-Turn Capability: This encoder provides a multi-turn absolute system, allowing for accurate position measurement even after multiple rotations, a feature that is particularly useful in applications such as robot joints or integrated servos.

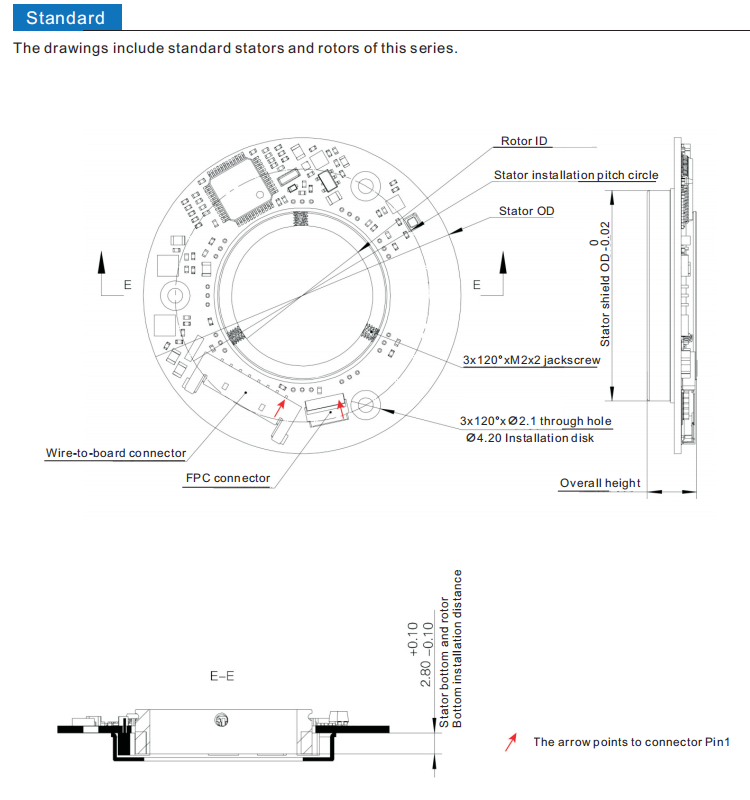

Wide Range of Customization Options: The encoder is available in various rotor IDs (6-55) and stator ODs (23-80), enabling users to choose the perfect configuration for their specific needs, as requested by a customer.
Compact and Lightweight Design: The thin and light design of the MOSRAC S series encoder makes it an ideal choice for applications where space is limited, such as in robotic systems.
Versatile Output Interface Options: The encoder offers a range of output interfaces, including BISS-C standard, SSI, RS485, RS422, T485, bus, and period, allowing users to easily integrate it with their existing systems.
