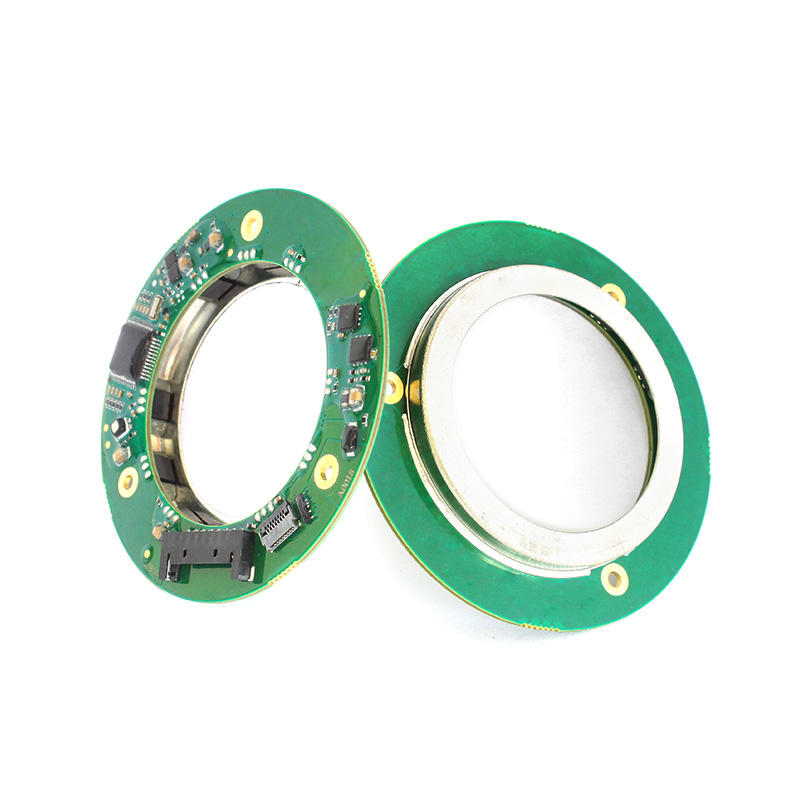

MOSRAC hollow absolute multiturn ID30mm OD55mm thickness 7mm 17-24bit resolution 0.01-0.05 accuracy Magnetic Encoder

Name: MOSRAC hollow absolute multiturn ID30mm OD55mm thickness 7mm 17-24bit resolution 0.01-0.05 accuracy Magnetic Encoder
Brand: Shenzhen Mosrac Motor Co., Ltd.
SKU: 1601223551668
Price: 25 USD
Availability: InStock

5.0(1 review)

Shenzhen Mosrac Motor Co., Ltd.

3 yrs

Attributes

DependsMounting Type

S-30-55Model Number

MOSRACBrand Name

Robot joint or integrated servo and so onUsage

S magnetic encoderDescription

Magnetic EncoderType

Place of Origin:Guangdong, China

Series:S series

Features:absolute system, High precision, thin and light

Theory:Multi-turn absolute

Output:Depends

Description:ABSOLUTE ENCODER

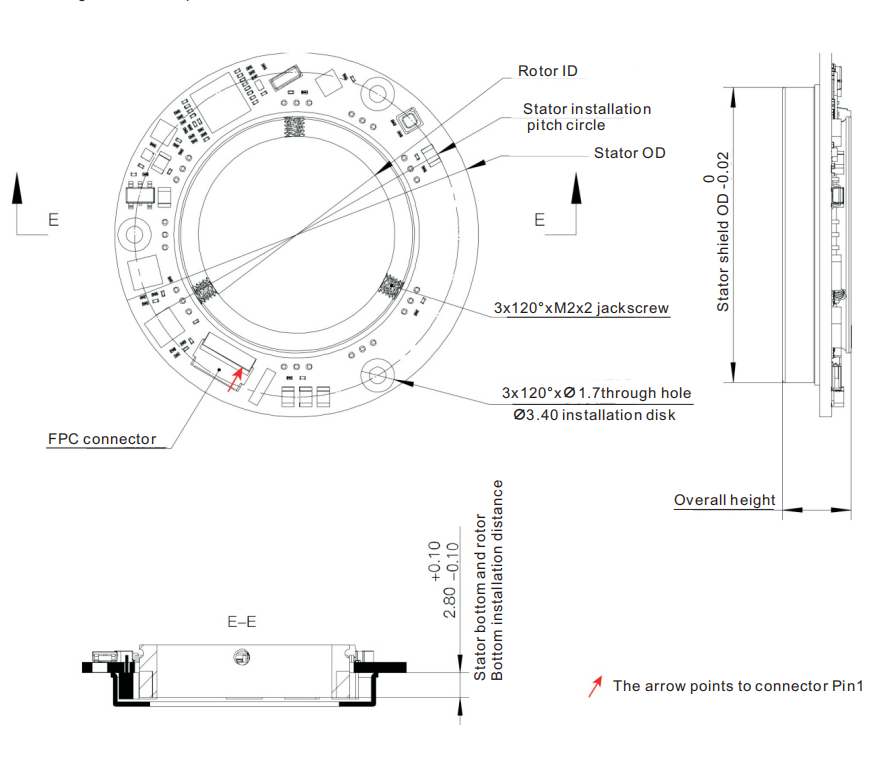

Rotor ID:6/8/10/12/13/15/18/20/23/25/28/30/33/35/38/40/43/45/48/50/53/55

Stator OD:23/25/28/30/33/36/38/40/42/45/47/50/52/55/57/60/62/65/67/70/72/75/80

Output type:absolute value

Output parameters:single-turn and multi-turn

Output Interface:BISS-C Standard/SSI/RS485/RS422/T485/BUS/PERIOD

Input voltage:5V

Working temperature:40 ~ 85°C

Selling Units:Single item

Single package size:20X15X20 cm

Single gross weight:1.000 kg

High Precision and Accuracy: This magnetic encoder offers a high precision of 0.01-0.05 accuracy and 17-24bit resolution, making it ideal for applications that require precise measurement and control.
Multi-Turn Absolute System: The encoder features a multi-turn absolute system, allowing for precise tracking of the rotor's position and rotation, even after power loss or restart.
Thin and Light Design: With a thickness of 7mm, this encoder is designed to be compact and lightweight, making it suitable for applications where space is limited.
Flexible Interface Options: The encoder offers various output interface options, including BISS-C standard, SSI, RS485, RS422, T485, BUS, and Period, allowing for flexibility in system integration.
Wide Operating Temperature Range: This encoder can operate within a wide temperature range of 40 ~ 85°C, making it suitable for use in various environments and applications.
