(MSM623) Multi Channels Modulador Catv De 24 Canales Digital Tv Video Encoder Modulator Dvb-s2 iptv Hls Rtmp to Qam Modulator
Store rating:5.0
(17 reviews)
Attributes
HD, RF, IP, ASICommunication Interface
MetalMaterial
Noprivate mold
Zhejiang, Chinaplace of origin
Dibvisionbrand name

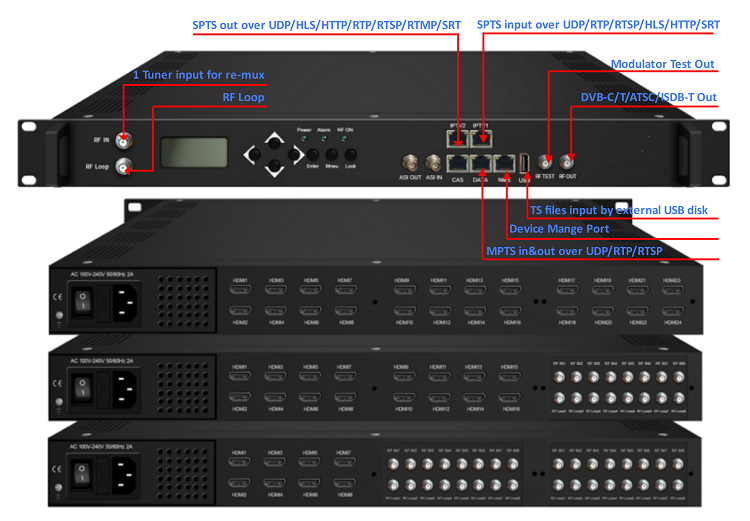

Max 24 of HD-MI/RF Tuner interfaces, 1*ASI, 1*USBInput
IP input:UDP/RTP/RTSP/HLS/HTTP/SRT; 128 MPTS IP input over UDP and RTP
HD Encoder Module:H.265&H.264 Video; MPEG-1 Layer 2&AAC, AC3 Pass Audio, max 1080P60
Support:Logo, Caption, QR Code insertion
DVB-S/S2/S2X Tuner Module:950-2150MHz, max QPSK/8PSK/16APSK/8APSK/32APSK
DVB-C/T/T2/ISDB-T Tuner Module:60~890MHz, switchable
Multiplexing:PID remapping; PSI/SI table; PCR adjusting
RF output:16/32*DVB-C, 8/16*DVB-T, 8/16*ATSC, 8/16*ISDB-T
Stream output:N*MPTS and ASI

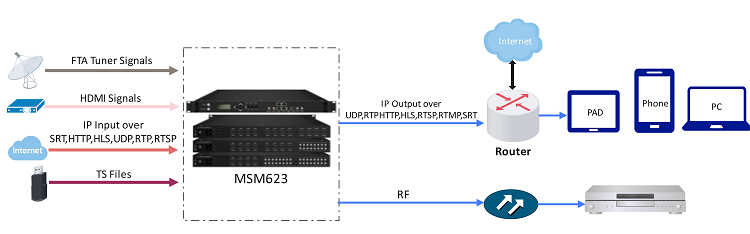

Application:CATV and IPTV System
Key attributes
Communication Interface
HD, RF, IP, ASI
Material
Metal
private mold
No
place of origin
Zhejiang, China
brand name
Dibvision
Input
Max 24 of HD-MI/RF Tuner interfaces, 1*ASI, 1*USB
IP input
UDP/RTP/RTSP/HLS/HTTP/SRT; 128 MPTS IP input over UDP and RTP
HD Encoder Module
H.265&H.264 Video; MPEG-1 Layer 2&AAC, AC3 Pass Audio, max 1080P60
Support
Logo, Caption, QR Code insertion
DVB-S/S2/S2X Tuner Module
950-2150MHz, max QPSK/8PSK/16APSK/8APSK/32APSK
DVB-C/T/T2/ISDB-T Tuner Module
60~890MHz, switchable
Multiplexing
PID remapping; PSI/SI table; PCR adjusting
RF output
16/32*DVB-C, 8/16*DVB-T, 8/16*ATSC, 8/16*ISDB-T
Stream output
N*MPTS and ASI
Application
CATV and IPTV System
Packaging and delivery
Selling Units
Single item
Lead time
Minimum order quantity: 1 unit
$1,999
Variations
Select nowColor: Black
model number
MSM623
