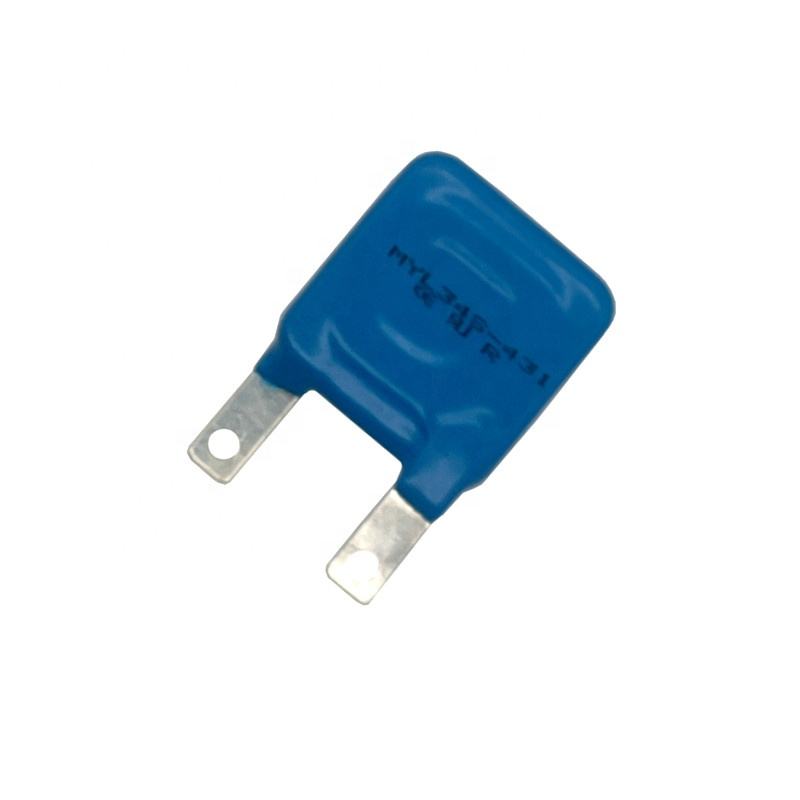

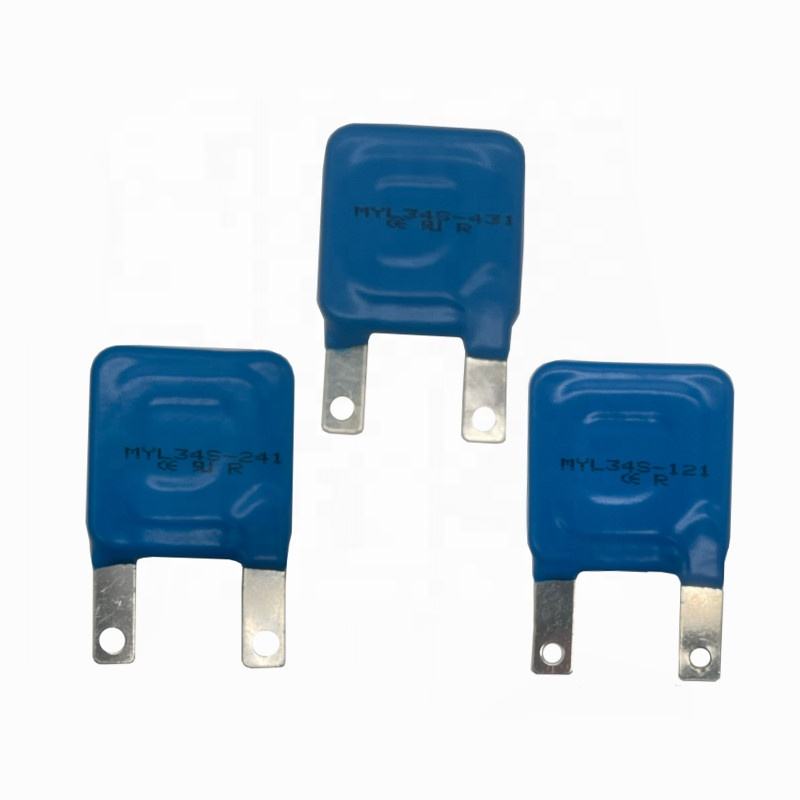

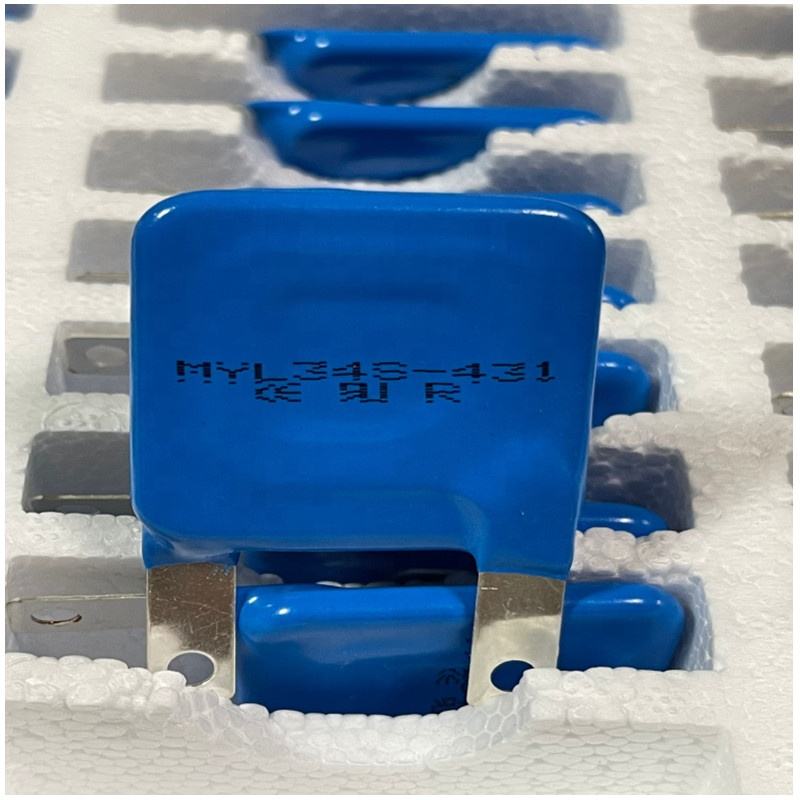

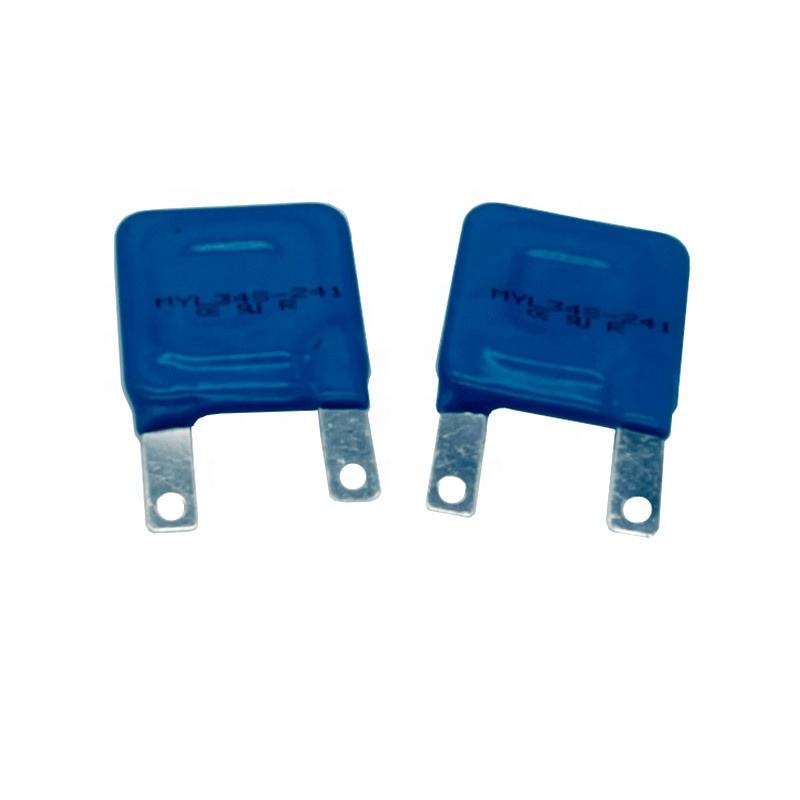

MYL 34S-121B 34S241B 34S431B Square 34x34mm Epoxy Encapsulated Metal Oxide Varistor 40KA for Surge Protection Devices (SPD)
Store rating:4.9
(5 reviews)
Attributes
Metal Oxide Varistor (MOV)Model Number
34mmSize / Dimension
LIN KUNBrand Name
Customer RequestPackaging Type
Original manufacturerManufacturing Date Code
Guangdong, ChinaPlace of Origin
Description:Withstanding Surge Current: 40KA
Resistance:Varistor Voltage U1mA=430V(387-473V)
Resistance Tolerance:±10%
Specification:MYL 34S112B 34S-431B 34S-241B
Application:MOV used in SPD
Package / Case:Epoxy resin
Series:SPD Varistor
Features:Protection of the post-stage circuit
RATED WATTAGE:1.4(W)
Capacitance @1KHZ:3800pF
Maximum Continuous Operating Voltage Uc:AC:275V DC:350V
Surge current:40000 A
Single-Pulse Maximum Energy(2ms):550J
Key attributes
Model Number
Metal Oxide Varistor (MOV)
Size / Dimension
34mm(1.34in)
Application
MOV used in SPD
Brand Name
LIN KUN
Description
Withstanding Surge Current: 40KA
Features
Protection of the post-stage circuit
Manufacturing Date Code
Original manufacturer
Package / Case
Epoxy resin
Packaging Type
Customer Request
Place of Origin
Guangdong, China
Resistance
Varistor Voltage U1mA=430V(387-473V)
Resistance Tolerance
±10%
Series
SPD Varistor
Specification
MYL 34S112B 34S-431B 34S-241B
RATED WATTAGE
1.4(W)
Capacitance @1KHZ
3800pF
Maximum Continuous Operating Voltage Uc
AC:275V DC:350V
Surge current
40000 A
Single-Pulse Maximum Energy(2ms)
550J
Packaging and delivery
Selling Units
Single item
Gross weight per batch
0.010 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
2,000 - 9,999 units
$140
10,000 - 99,999 units
$130
>= 100,000 units
$120
Variations
Select nowType: Plugins
Plugins
Mounting Type
Plugins
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
