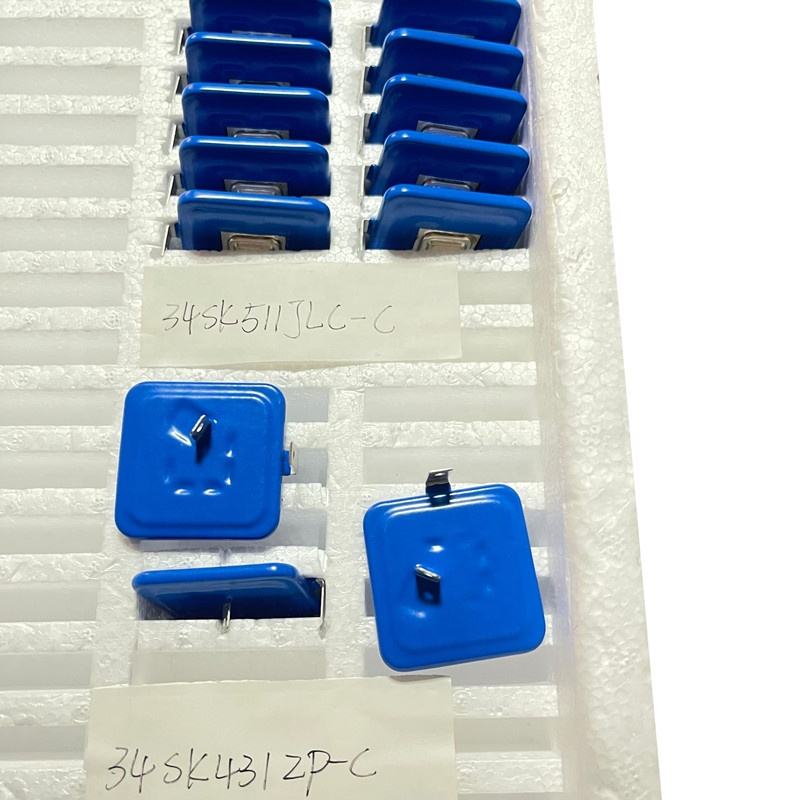

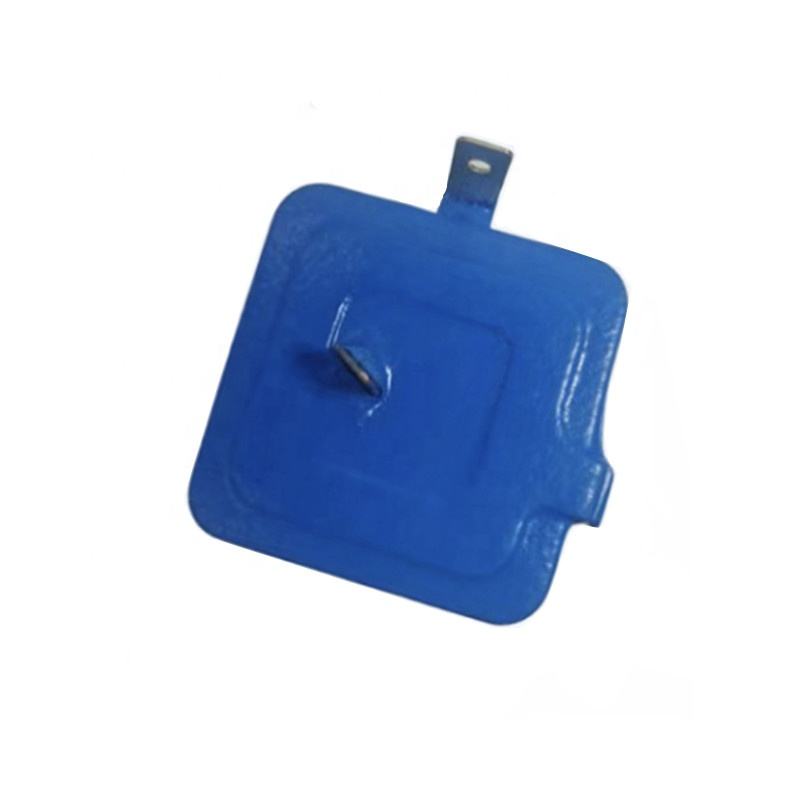

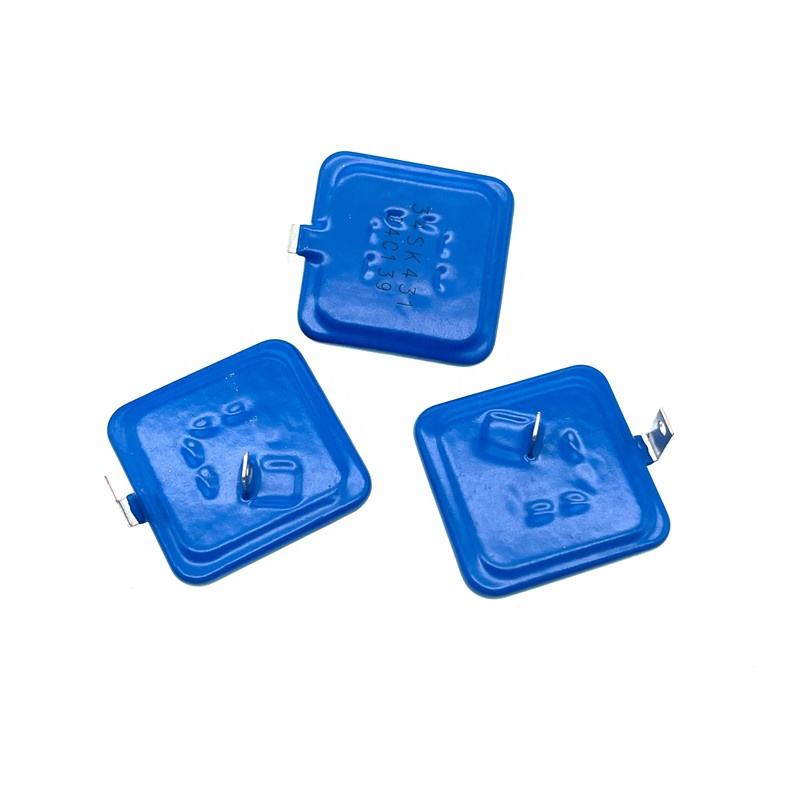

MYL 34S621L 34S102KA Square 34x34mm Epoxy Encapsulated Metal Oxide Varistor 40KA 34S for Surge ProtectionD Solar Systems
Store rating:4.9
(5 reviews)
Attributes
Metal Oxide Varistor (MOV)Model Number
34mmSize / Dimension
LIN KUNBrand Name
Customer RequestPackaging Type
Original manufacturerManufacturing Date Code
Guangdong, ChinaPlace of Origin
Description:Withstanding Surge Current: 40KA
Resistance:Varistor Voltage U1mA=621V(558V~682V)
Resistance Tolerance:±10%
Specification:34S-621L 34S-102KA
Application:MOV used in SPD
Package / Case:Epoxy resin
Series:SPD Varistor
Features:Protection of the post-stage circuit
Leakage Current:≤10μA (75% of U1mA(DC),25℃)
Capacitance @1KHZ:2600pF
Maximum Continuous Operating Voltage Uc:AC:385V/DC:505V
Nominal Discharge Current In (15 pulses):40KA
Terminal Type:Tinned copper plate
Single-Pulse Maximum Energy(2ms):800J
Key attributes
Model Number
Metal Oxide Varistor (MOV)
Size / Dimension
34mm
Brand Name
LIN KUN
Packaging Type
Customer Request
Manufacturing Date Code
Original manufacturer
Place of Origin
Guangdong, China
Description
Withstanding Surge Current: 40KA
Resistance
Varistor Voltage U1mA=621V(558V~682V)
Resistance Tolerance
±10%
Specification
34S-621L 34S-102KA
Application
MOV used in SPD
Package / Case
Epoxy resin
Series
SPD Varistor
Features
Protection of the post-stage circuit
Leakage Current
≤10μA (75% of U1mA(DC),25℃)
Capacitance @1KHZ
2600pF
Maximum Continuous Operating Voltage Uc
AC:385V/DC:505V
Nominal Discharge Current In (15 pulses)
40KA
Terminal Type
Tinned copper plate
Single-Pulse Maximum Energy(2ms)
800J
Packaging and delivery
Selling Units
Single item
Single gross weight
0.010 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
2,000 - 9,999 units
$140
10,000 - 99,999 units
$130
>= 100,000 units
$120
Variations
Select nowType: Plugins
Plugins
Mounting Type
Plugins
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
