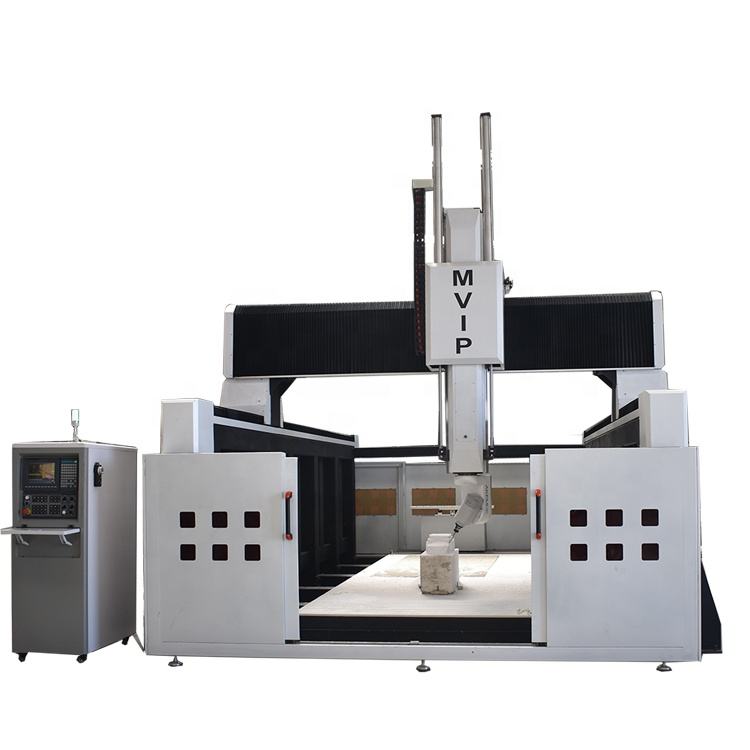

Metal Foam Wood Styrofoam 3D Carving Graving Drilling Milling 5 Axis CNC Router Machine Price

See reviewsComplies with EU standards

Jinan Mingpu Cnc Equipment Co., Ltd.

Custom Manufacturer

10 yrs

CN

Attributes

CNC Routermachine type

2000×4000Working Table Size(mm)

5number of axes

ATCNo. of Spindles

220V/380Vvoltage

1 Yearwarranty

cnc or not:CNC

place of origin:Shandong, China

Power (kW):25

weight (kg):9000

range of spindle speed(r.p.m):9000 - 24000 rpm

positioning accuracy (mm):0.03 mm

travel (x axis)(mm):2000 mm

travel (y axis)(mm):4000 mm

repeatability (x/y/z) (mm):0.02 mm

Spindle Motor Power (kw):15kw

brand name:Mingpu

dimension(l*w*h):6000*3050*2960mm

key selling points:Long Service Life

machinery test report:Provided

video outgoing-inspection:Provided

core components:Motor, Engine

Name:5 Axis CNC Router

Working area:2000mm*4000mm*1200mm

Application:EFS, foam,wood, MDF, Acrylic, PVC etc.

Spindle power:15 KW Italian

Control system:Syntec Control System

Driving system:YASKAWA servo motors

Inverter:Taiwan-made Delta inverter

Tool magazine:8 positions Carousel Tool Storage

Vacuum pump:Germany Becker pump

Transmission:Helical Rack Pinion

High-Performance 5-Axis CNC Routing Capability: This 5-axis CNC router machine is designed to provide precise and efficient routing, carving, and drilling operations on various materials such as wood, foam, MDF, acrylic, and PVC, allowing users to achieve complex designs and patterns with ease.
Advanced Syntec Control System: Equipped with a Syntec control system, this machine offers precise control and monitoring of the cutting process, ensuring accurate and reliable results. The system also provides real-time monitoring and adjustment capabilities, allowing users to optimize their cutting processes.
Large Working Area and High-Speed Spindle: With a working area of 2000mmx4000mmx1200mm and a spindle speed range of 9000-24000 rpm, this machine is ideal for large-scale and high-volume production applications. The 15 kW Italian spindle motor provides powerful and efficient cutting performance.
Durable Construction and Long Service Life: Built with high-quality components and a robust design, this machine is designed to provide a long service life and minimize maintenance requirements. The machine's core components, including the motor and engine, come with a 1-year warranty, ensuring peace of mind for users.
User-Friendly and Efficient Operation: This machine is designed for easy operation and maintenance, with features such as a 8-position carousel tool storage and a Germany Becker vacuum pump, allowing users to quickly and efficiently switch between tools and maintain a clean and organized workspace.

Key attributes

machine type

CNC Router

Working Table Size(mm)

2000×4000

number of axes

5

No. of Spindles

ATC

voltage

220V/380V

warranty

1 Year

key selling points

Long Service Life

core components

Motor, Engine

machinery test report

Provided

video outgoing-inspection

Provided

cnc or not

CNC

place of origin

Shandong, China

Power (kW)

25

weight (kg)

9000

range of spindle speed(r.p.m)

9000 - 24000 rpm

positioning accuracy (mm)

0.03 mm

travel (x axis)(mm)

2000 mm

travel (y axis)(mm)

4000 mm

repeatability (x/y/z) (mm)

0.02 mm

Spindle Motor Power (kw)

15kw

brand name

Mingpu

dimension(l*w*h)

6000*3050*2960mm

Name

5 Axis CNC Router

Working area

2000mm*4000mm*1200mm

Application

EFS, foam,wood, MDF, Acrylic, PVC etc.

Spindle power

15 KW Italian

Control system

Syntec Control System

Driving system

YASKAWA servo motors

Inverter

Taiwan-made Delta inverter

Tool magazine

8 positions Carousel Tool Storage

Vacuum pump

Germany Becker pump

Transmission

Helical Rack Pinion

Packaging and delivery

Packaging Details

1. Inner package: by film 2.. Outside package: by plywood case. 3. Delivery term: delivered within 7-10 working days after receiving deposit.

Port of dispatch

Qingdao(other port optional )

Selling Units

Single item

Single package size

30X10X5 cm

Single gross weight

5.000 kg

Supply capacity

Supply Ability

10 sets per Month 5 axis automatic circular magazine 3d wood carving machine price

Lead time

Customization options

Customized logo (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

View details

Product descriptions from the supplier

Warning/Disclaimer

California Proposition 65 Consumer WarningView more

Customizable

Minimum order quantity: 1 set

$39,999

Sample price: $9

Variations

Customization options

Customized logo (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
