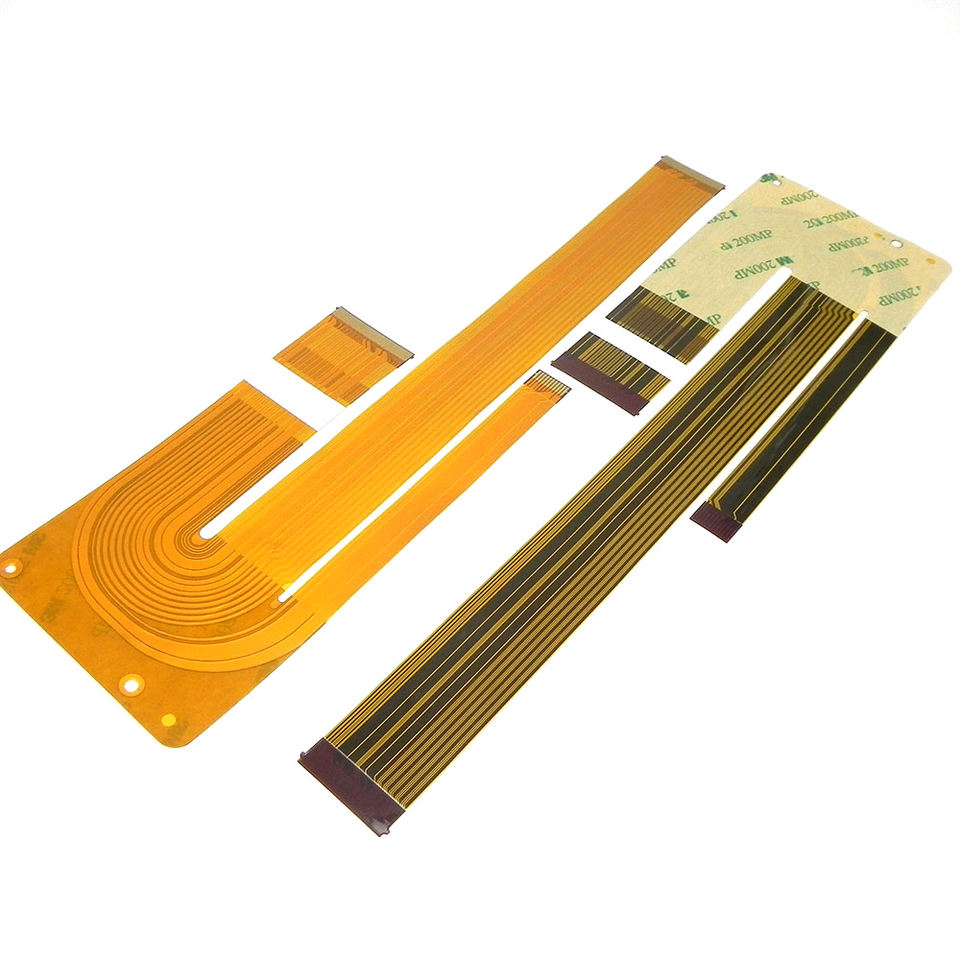

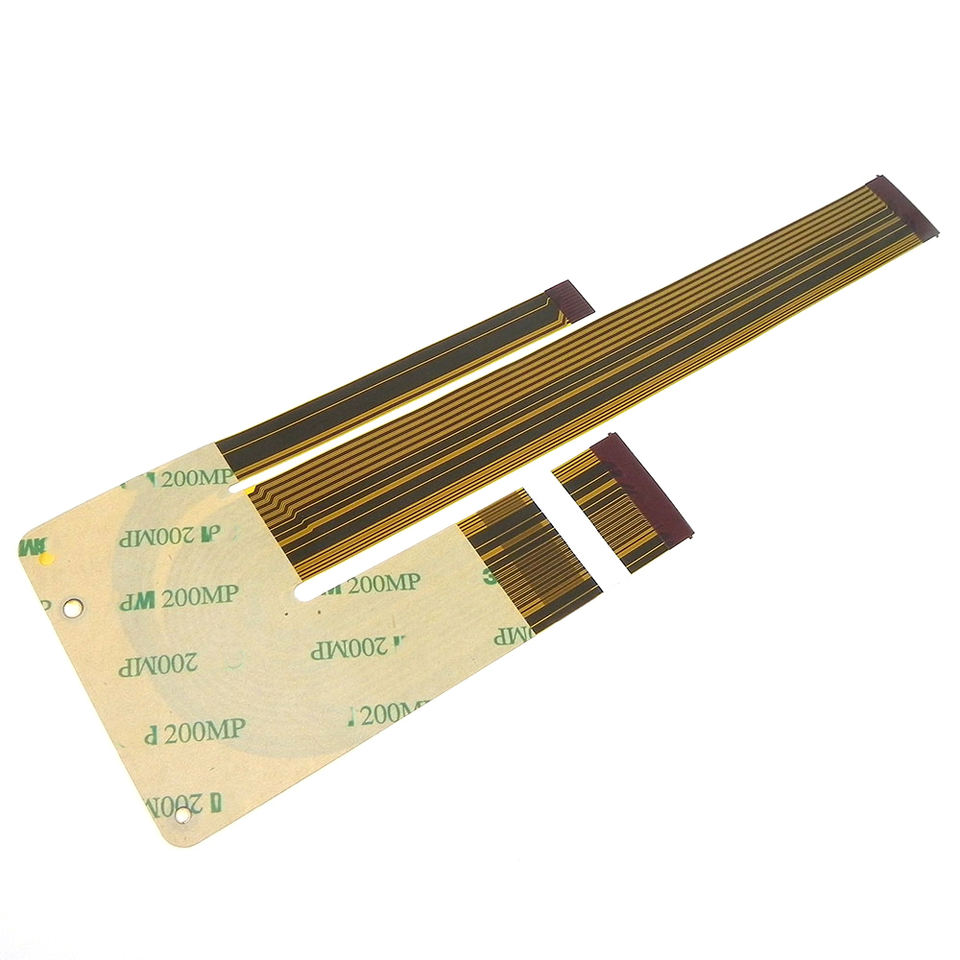

Original 50pin to 36 Pin P/n 123020000037 AV 7780 FPC Flex Cable for Car Radio Prology MDD-714

Store rating:4.9

(55 reviews)

Shenzhen E-Connecting Technology Co., Ltd.

14 yrs

CN

Attributes

FPCType

Polyimide/polyesterBase Material

0.025mm---0.125mmBoard Thickness

standardBoard Size

XDOK-FPC-01Model Number

Guangdong, ChinaPlace of Origin

Brand Name:Xindaok

Copper Thickness:0.009MM0.018mm 0.035mm 0.070mm 0.010mm

Min. Hole Size:0.30mm±0.02mm

Min. Line Width:0.075mm/0.075mm(3mil/3mil)

Min. Line Spacing:0.075---0.09MM

Surface Finishing:Gold-plated, tin-plated, free oxygen

Name:50pin to 36 pin p/n 123020000037 FPC cable for Prology MDD-714

Normal Pitch:0.2mm,0.3mm,0.4mm

Solder Mask Types:Yellow

Pin contact:5pin-51pin etc

Sides:same side contact & opposite side contact

FPC thickness:1oz 1/2oz and 1/3 oz

Stiffener Film thickness:3mil to 9mil

Surface finish:Gold-plated, tin-plated, free oxygen

Characteristics:Wiring high density, low weight, small thickness

Service:OEM/ODM products are acceptable

Flexible and Durable FPC Cable: Our product, the 50pin to 36 pin p/n 123020000037 AV 7780 FPC Flex Cable, is made from high-quality polyimide/polyester material, ensuring flexibility and durability for various applications.
Customizable Options: As a user, you can choose from different copper thicknesses (0.009mm-0.035mm) and surface finishes (gold-plated, tin-plated, or free oxygen) to suit your specific needs.
High-Density Wiring: With a minimum line spacing of 0.075-0.09mm and line width of 0.075mm, this FPC cable offers high-density wiring for efficient signal transmission.
Compact Design: The cable's small thickness (0.025mm-0.125mm) and low weight make it ideal for applications where space is limited.
OEM/ODM Services Available: We offer OEM/ODM services, allowing us to customize the product according to your requirements and brand name, ensuring a seamless integration with your existing products.

Key attributes

Type

FPC

Base Material

Polyimide/polyester

Board Size

standard

Board Thickness

0.025mm---0.125mm

Brand Name

Xindaok

Copper Thickness

0.009MM0.018mm 0.035mm 0.070mm 0.010mm

Min. Hole Size

0.30mm±0.02mm

Min. Line Spacing

0.075---0.09MM

Min. Line Width

0.075mm/0.075mm(3mil/3mil)

Model Number

XDOK-FPC-01

Place of Origin

Guangdong, China

Surface Finishing

Gold-plated, tin-plated, free oxygen

Name

50pin to 36 pin p/n 123020000037 FPC cable for Prology MDD-714

Normal Pitch

0.2mm,0.3mm,0.4mm

Solder Mask Types

Yellow

Pin contact

5pin-51pin etc

Sides

same side contact & opposite side contact

FPC thickness

1oz 1/2oz and 1/3 oz

Stiffener Film thickness

3mil to 9mil

Surface finish

Gold-plated, tin-plated, free oxygen

Characteristics

Wiring high density, low weight, small thickness

Service

OEM/ODM products are acceptable

Packaging and delivery

Selling Units

Single item

Package size per batch

6X6X6 cm

Gross weight per batch

0.050 kg

Lead time

Customization options

custom fpc cable(+ from /Min. order: 1 piece)
