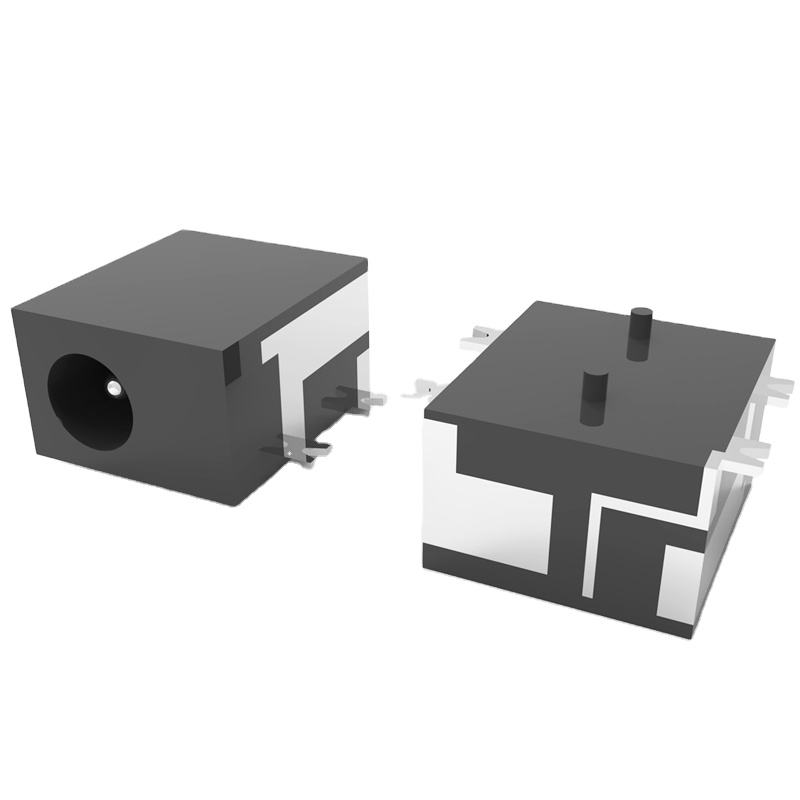

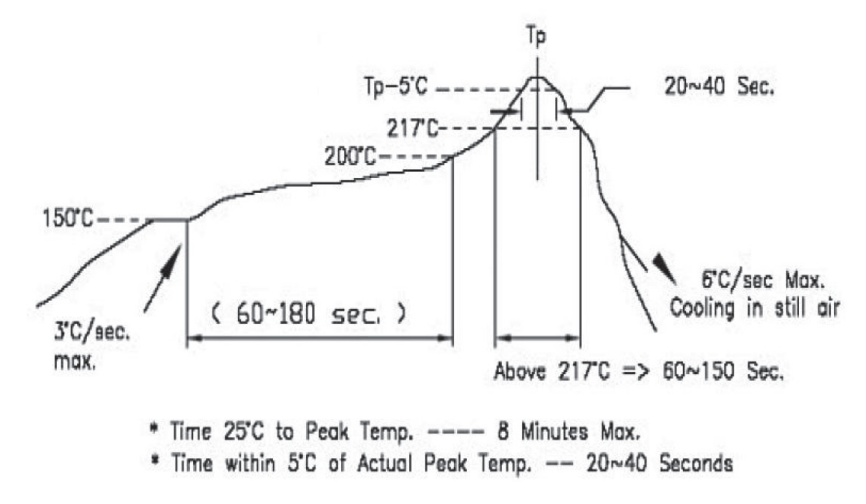

PJ-014CH-SMT-TR Low Profile SMT DC Power Jack 3.5A 24V 30mΩ Connector 5000 Cycles Reflow Solderable ROHS for Drones/Wearables

See store reviews

Attributes

24 VRated Voltage
3.5ARated Current
Commercial, Travel, Industrial, Hospital, Residential / General-PurposeApplication
Standard GroundingGrounding
DCAC Outlets Quantity
NoWIFI
Model Number:PJ-014CH-SMT-TR
Brand Name:WNRE
Place of Origin:Zheng Jiang
Network:No
contact resistance:30mΩ
insulation resistance:100MΩ/min at 500 Vdc between adjacent contacts
voltage withstand for 1 minute:500V AC
insertion/withdrawal force:0.3-2kg
operating temperature:-25-85℃
life:5000 cycles
flammability rating:UL94V-0
RoHS:Yes

Key attributes

Rated Voltage
24 V
Rated Current
3.5A
Application
Commercial, Travel, Industrial, Hospital, Residential / General-Purpose
Grounding
Standard Grounding
AC Outlets Quantity
DC
WIFI
No
Network
No
Model Number
PJ-014CH-SMT-TR
Brand Name
WNRE
Place of Origin
Zheng Jiang
contact resistance
30mΩ
insulation resistance
100MΩ/min at 500 Vdc between adjacent contacts
voltage withstand for 1 minute
500V AC
insertion/withdrawal force
0.3-2kg
operating temperature
-25-85℃
life
5000 cycles
flammability rating
UL94V-0
RoHS
Yes

Packaging and delivery

Selling Units
Single item

Lead time

Customization options

Customized logo(+ from /Min. order: 10,000 pieces)
Customized packaging(+ from /Min. order: 10,000 pieces)
Graphic customization(+ from /Min. order: 10,000 pieces)
View details

Product descriptions from the supplier

Warning/Disclaimer
California Proposition 65 Consumer Warning
Customizable
1 - 9 pieces
$0.50
10 - 99 pieces
$0.40
>= 100 pieces
$0.30
