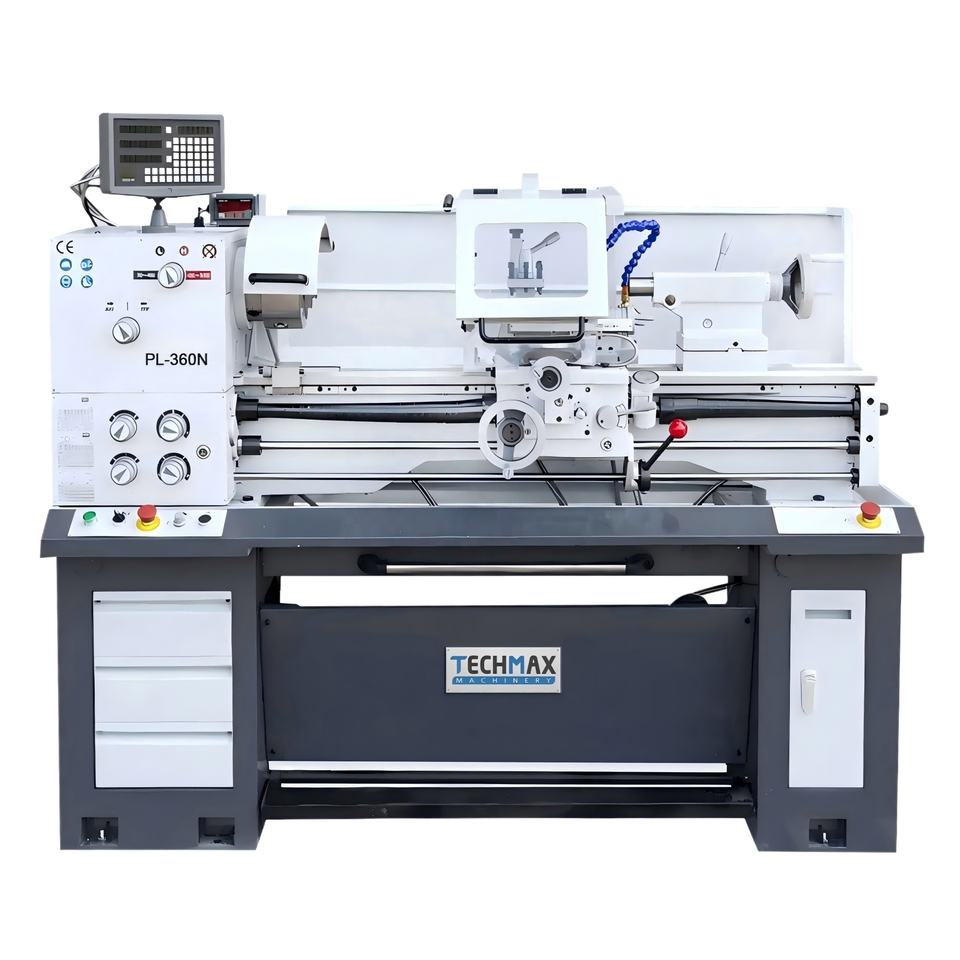

PL-360N Parallel Lathe Torno Paralelo Mechanical Lathe for Precision Turning Mechanical Workshop and Industrial Use

5.0(2 reviews)
3 sold
$3,990
1-2 sets
$3,450
≥3 sets
max. swing diameter (mm)
spindle motor power(kw)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

type

Horizontal

voltage

As per the client's request

max. length of workpiece (mm)

1000

machining capacity

Light Duty

tool post stations

4

spindle taper

MT6

At a glance

  • Inductive Hardened Bed: The inductive hardened, polished grey cast-iron machine bed ensures long-term durability and stability, reducing the need for frequent maintenance.

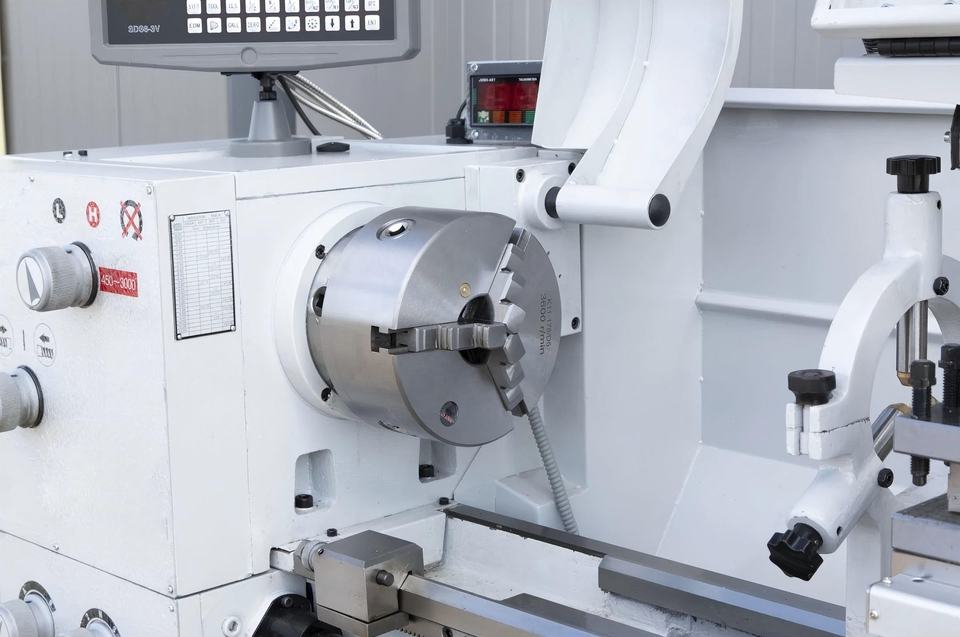

  • High-Precision Spindle: The state-of-the-art main spindle with high-quality angular ball bearings provides high accuracy and reliability, ensuring consistent and precise turning results.

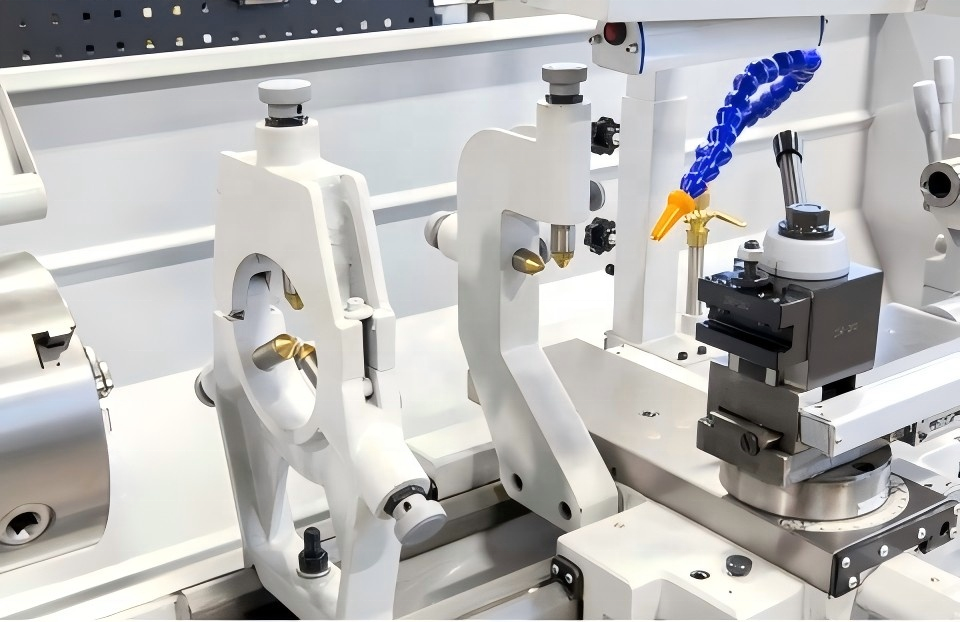

  • Adjustable Tailstock: The adjustable tailstock with a handwheel and 0.02 mm scale allows for precise taper turning, enhancing the versatility and precision of the lathe.

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Payment & financing

Buy now, pay later

Service

Free replacement parts & online technical support
Free replacement parts & online technical support
1-year warranty
1-year warranty

Key attributes

type
Horizontal
voltage
As per the client's request
max. length of workpiece (mm)
1000
machining capacity
Light Duty
tool post stations
4
spindle taper
MT6
key selling points
Competitive Price, High-Accuracy, High Rigidity
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
range of spindle speed(r.p.m)
70 - 2000
place of origin
Zhejiang, China
weight (kg)
645
max. weight of workpiece(kg)
>500
width of bed (mm)
186
brand name
TECHMAX
model number
PL-360N
dimension(l*w*h)
93*76*153 cm
cutting torque
400
Swing over bed
360 mm
Swing over cross slide
223 mm
Center height
180 mm
Spindle bore
52 mm
Top slide travel
95 mm
Cross slide travel
160 mm
Tailstock sleeve diameter
32 mm
Tailstock sleeve travel
100 mm
Tailstock sleeve taper
MT3
Color
As per the client's request

Packaging and delivery

Selling Units
Single item

Lead time

Product descriptions from the supplier
