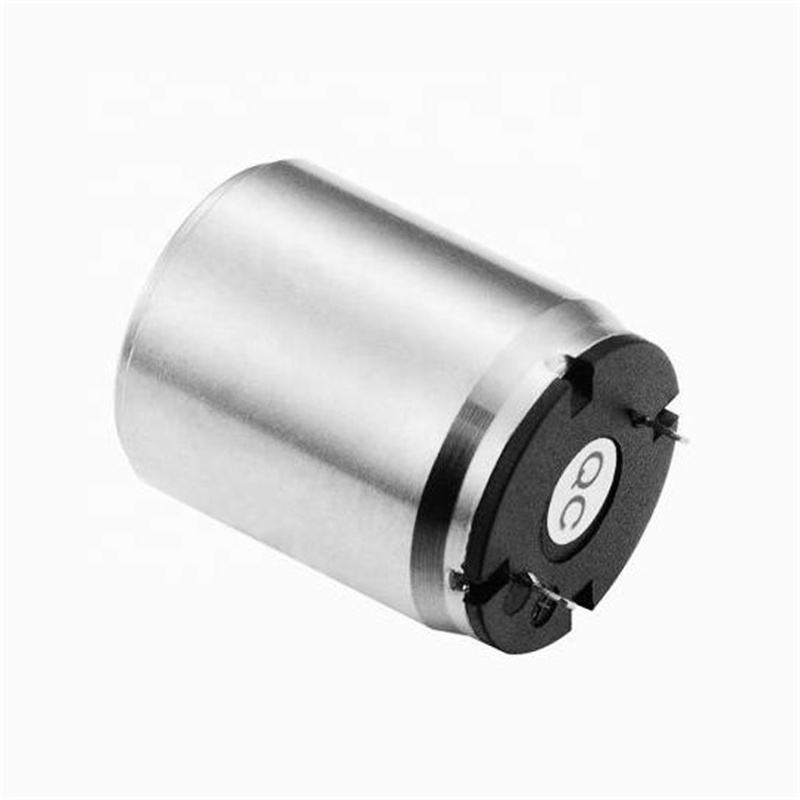

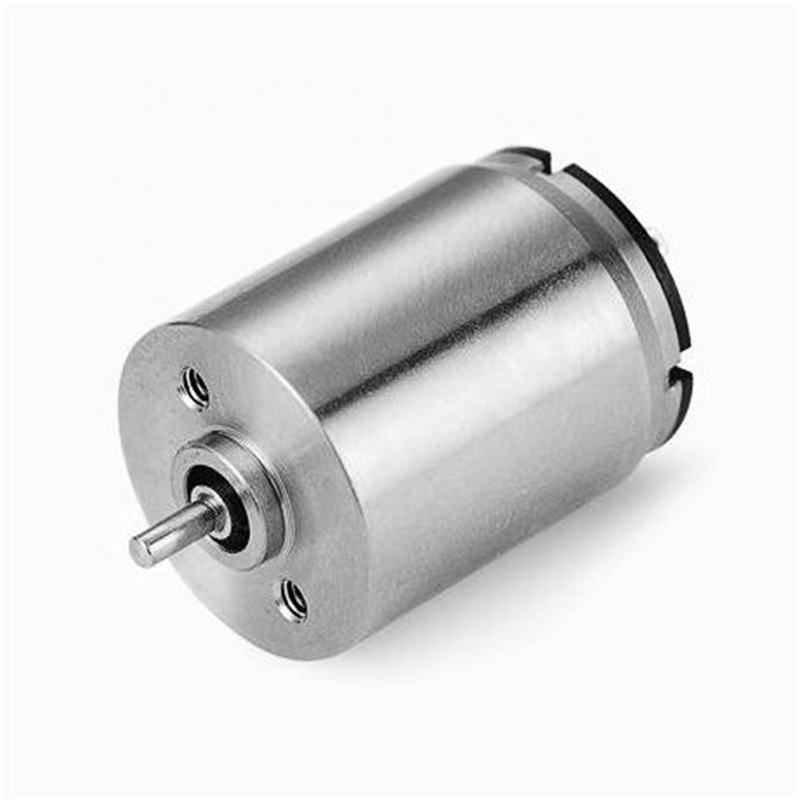

Replace Maxon Faulhaber 3v 12v Coreless Brush Magnetic Dc Motor for Tatoo Machine Pump and Robots and Medical Equipment
See reviews
Attributes
BrushCommutation
4231-8820 rpm (rated)Speed(RPM)
IE 2Efficiency
Micro MotorType
Permanent MagnetConstruction
WaterproofProtect Feature
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Other
Warranty:3 months ~ 1 year
Continuous Current(A):0.043-0.228 A
Model Number:1620R
Torque:2 mNm (rated)
Place of Origin:Guangdong, China
Brand Name:langyi
Product Name:coreless magnetic motor generator
Other name:hollow cup motor
Feature:no vibration
Diameter:16mm
advantages:Long Life, Low Cost, low noise
Applications:tattoo machine,medical equipment
Keywords:Brush Dc Electric Motor
Rated Voltage:3v,12v,24vdc
Power:0.3w
Size:16*20 Mm
Key attributes
Commutation
Brush
Speed(RPM)
4231-8820 rpm (rated)
Efficiency
IE 2
Type
Micro Motor
Construction
Permanent Magnet
Protect Feature
Waterproof
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other
Warranty
3 months ~ 1 year
Continuous Current(A)
0.043-0.228 A
Model Number
1620R
Torque
2 mNm (rated)
Place of Origin
Guangdong, China
Brand Name
langyi
Product Name
coreless magnetic motor generator
Other name
hollow cup motor
Feature
no vibration
Diameter
16mm
advantages
Long Life, Low Cost, low noise
Applications
tattoo machine,medical equipment
Keywords
Brush Dc Electric Motor
Rated Voltage
3v,12v,24vdc
Power
0.3w
Size
16*20 Mm
Packaging and delivery
Packaging Details
First, Single item in foam box
Second, packed in carton box
Third, externally reinforced packaging to protect the safety and quality of the motor
Selling Units
Single item

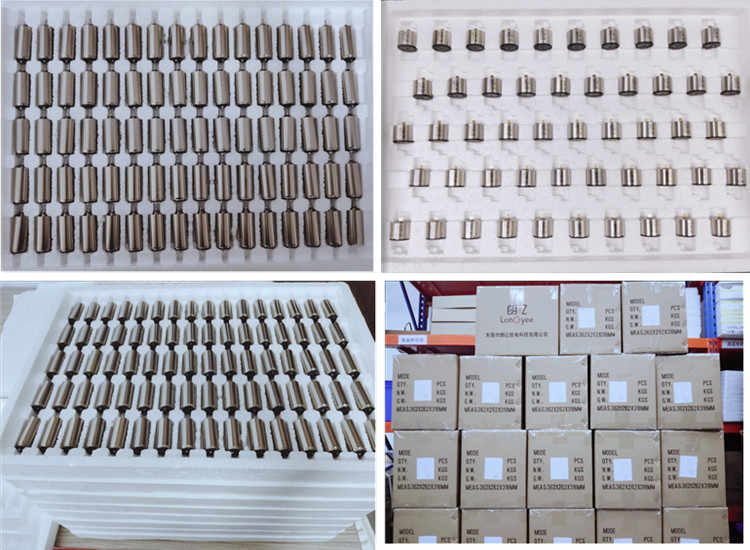

Packaging examples
Supply capacity
Supply Ability
100000 pieces per Month
Lead time
Customization options
Customized packaging(+ from /Min. order: 5,000 pieces)
Product customization(+ from /Min. order: 10 pieces)
Customized logo(+ from /Min. order: 5,000 pieces)
View details
Product descriptions from the supplier
Customizable
2 - 99 pieces
$13
>= 100 pieces
$806
Variations
Select nowVoltage(V): 3v
3v
12v
Output Power: 1.80w (rated)
1.80w (rated)
Speed of Revolution
4650 rpm
7120 rpm
12000 rpm
Customization options
Customized packaging (Min. order: 5,000 pieces)
Product customization (Min. order: 10 pieces)
Customized logo (Min. order: 5,000 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
