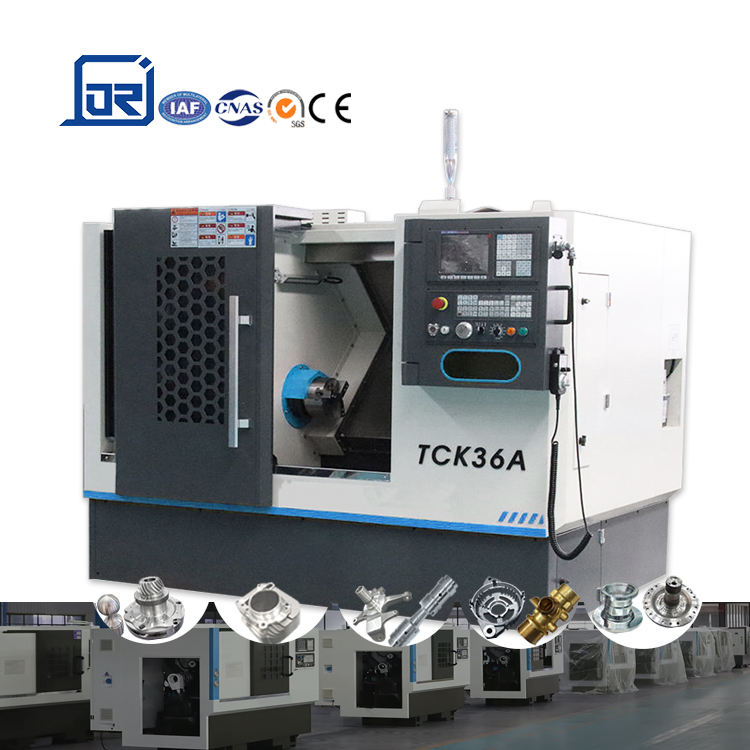

Small Cnc Lathe High Speed Horizontal CNC Metal Lathe TCK36A Casting Y Axis CNC Turret Turning Centre
Store rating:5.0
(105 reviews)Certificates:CE
Attributes
Horizontaltype
300max. length of workpiece (mm)
±0.003positioning accuracy (mm)
±0.001repeatability (x/y/z) (mm)
2/4number of axes
FANUC/Siemens/GSKcnc control system
no. of spindles:Single
tool post stations:12
machining capacity:Heavy Duty
voltage:220v/380v
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Easy To Operate
max. weight of workpiece(kg):500
travel (x axis)(mm):185
travel (z axis)(mm):350
width of bed (mm):linear guide rail
place of origin:Liaoning, China
dimension(l*w*h):2200x1610x1850
model number:TCK36A
weight:2400
range of spindle speed:50 - 3000
China Factory Supply Cnc Lathe:Cnc Slant Lathe Machine
Max. turning diameter:320mm Precision Machining Lathe slant Bed Cnc Lathe
Max. turning length:300mm Turning Cnc Machining Parts turning Machine
Precision Turn-milling Cnc Lathe:Turn-milling china Factory Cnc Lathe Machine
Max. bar capacity:56mm Slant Bed Turning Center
Metal milling Tools high Speed Cnc Lathe:Turning Milling Tapping Drilling Functions
Spindle speed: 3000rpm:Metal Turning Milling Drilling
Processing type:Turning CNC Lathe Mahcine
Function:Turning Milling Drilling Threading
Max.swing over bed:640mm Turn-milling Composite Cnc Lathe Machine Tool
Service
Free replacement parts & online technical support
Key attributes
type
Horizontal
max. length of workpiece (mm)
300
positioning accuracy (mm)
±0.003
repeatability (x/y/z) (mm)
±0.001
number of axes
2/4
cnc control system
FANUC/Siemens/GSK
no. of spindles
Single
tool post stations
12
machining capacity
Heavy Duty
voltage
220v/380v
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Easy To Operate
max. weight of workpiece(kg)
500
travel (x axis)(mm)
185
travel (z axis)(mm)
350
width of bed (mm)
linear guide rail
place of origin
Liaoning, China
dimension(l*w*h)
2200x1610x1850
model number
TCK36A
weight
2400
range of spindle speed
50 - 3000
China Factory Supply Cnc Lathe
Cnc Slant Lathe Machine
Max. turning diameter
320mm Precision Machining Lathe slant Bed Cnc Lathe
Max. turning length
300mm Turning Cnc Machining Parts turning Machine
Precision Turn-milling Cnc Lathe
Turn-milling china Factory Cnc Lathe Machine
Max. bar capacity
56mm Slant Bed Turning Center
Metal milling Tools high Speed Cnc Lathe
Turning Milling Tapping Drilling Functions
Spindle speed: 3000rpm
Metal Turning Milling Drilling
Processing type
Turning CNC Lathe Mahcine
Function
Turning Milling Drilling Threading
Max.swing over bed
640mm Turn-milling Composite Cnc Lathe Machine Tool
Packaging and delivery
Selling Units
Single item
Single package size
360X200X220 cm
Single gross weight
6500.000 kg
Lead time
Customization options
Name plate(+ from +$50/unit/Min. order: 1 unit)
cnc control system(+ from +$7,000/unit/Min. order: 1 unit)
View details
Customizable
1 - 4 units
$17,820
>= 5 units
$15,420
Variations
Select nowmax. swing diameter (mm): 360
360
spindle motor power(kw)
11
Customization options
Name plate+$50/unit (Min. order: 1 unit)
cnc control system+$7,000/unit (Min. order: 1 unit)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
