Trimpot 3296W Potentiometer Multiturn Trimmer B504 Potentiometer

No reviews yet billboard

billboard

#6 leading manufacturer in Passive Components

10% off

$0.09-0.25$0.10-0.28

Minimum order quantity: 50 pieces

Sample price: $0.10-0.28

*Taxes and import charges will be calculated at checkout

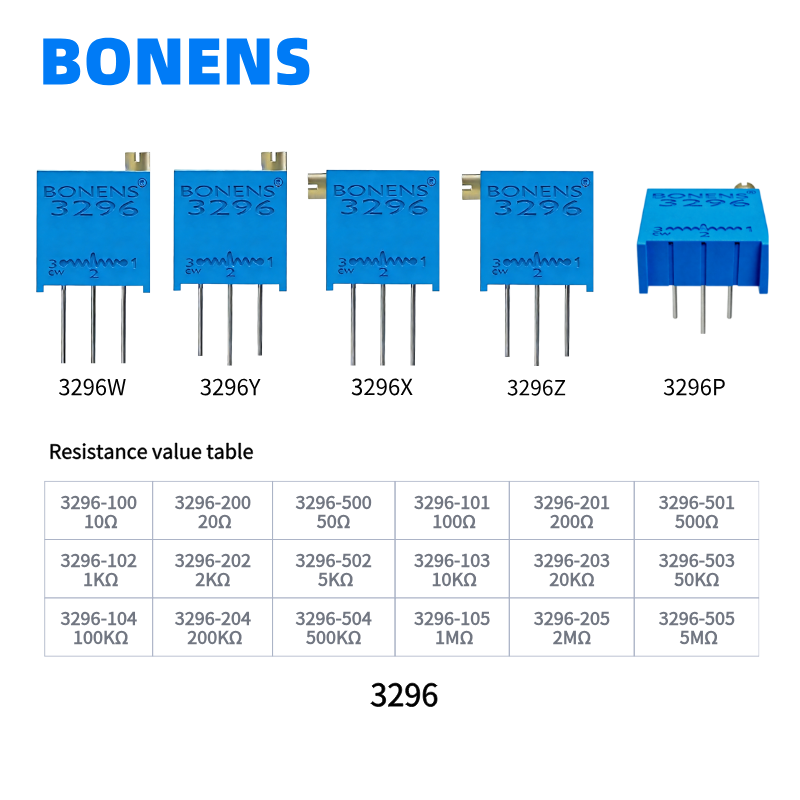

Type

3296W-100 (10Ω)

3296W-200 (20Ω)

3296W-500 (50Ω)

3296W-101 (100Ω)

3296W-201 (200Ω)

3296W-501 (500Ω)

3296W-102 (1kΩ)

3296W-202 (2kΩ)

3296W-502 (5kΩ)

+9

Mounting Type

Through Hole

Key attributes

Brand Name

BONENS

Model Number

3296W

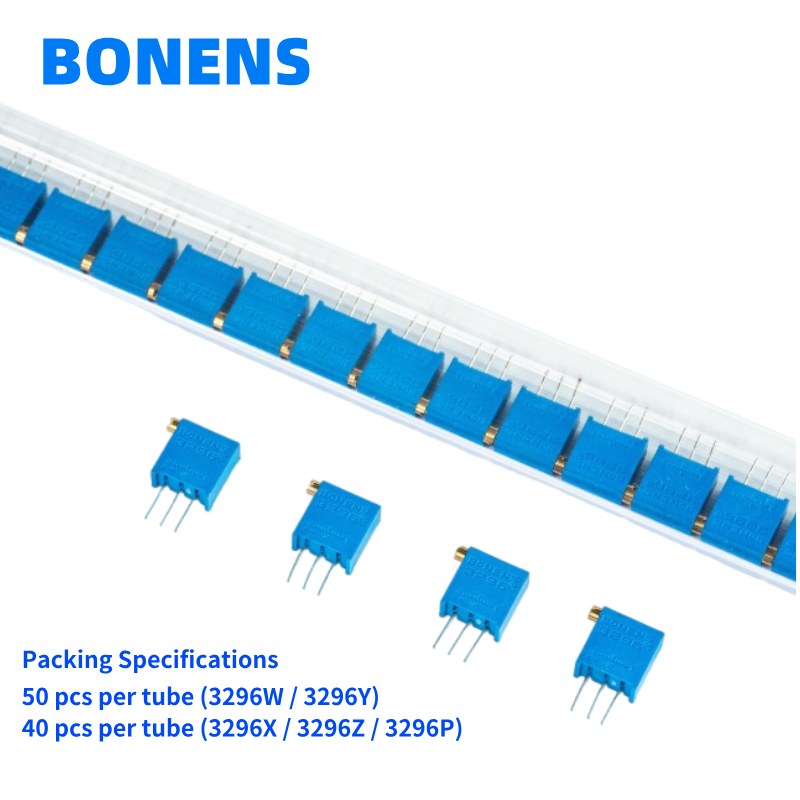

Packaging Type

Plastic Tube Packaging

Manufacturing Date Code

Product batch number

Adjustment Type

Top Adjustment

Resistive Material

Cermet

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Guaranteed delivery via

Expect your order to be delivered before scheduled dates or receive a 5% delay compensation

Money-back guarantee

Get your money back for missing deliveries and defective or damaged products, plus free local returns for defects

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Brand Name

BONENS

Model Number

3296W

Packaging Type

Plastic Tube Packaging

Manufacturing Date Code

Product batch number

Adjustment Type

Top Adjustment

Resistive Material

Cermet

Place of Origin

Sichuan, China

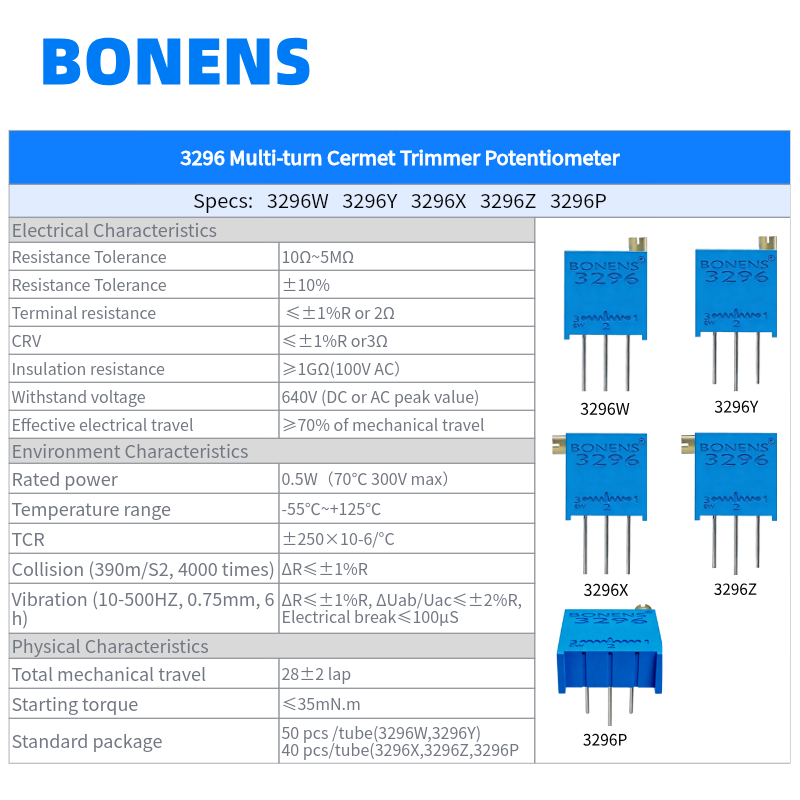

Description

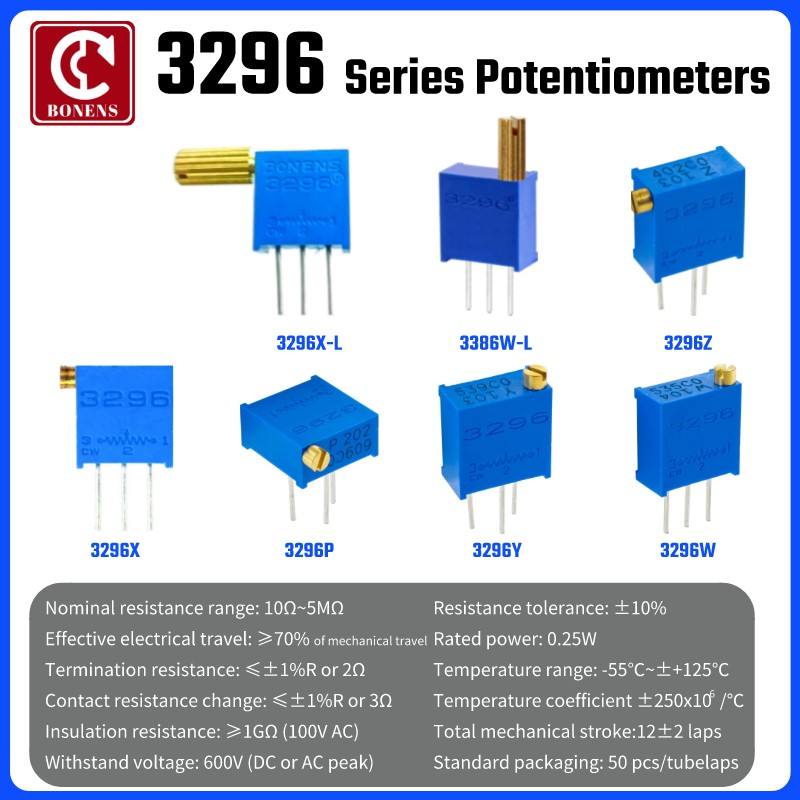

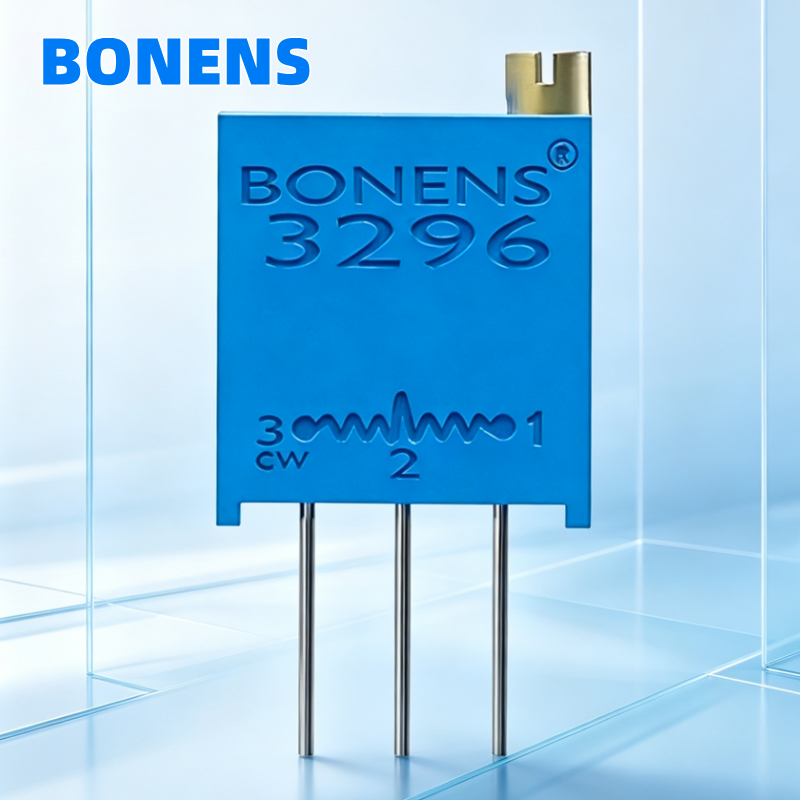

3296 Multi-turn Cermet Trimmer Potentiometer

Resistance

10Ω-5MΩ

Resistance Tolerance

±10%

Specification

3296W

Application

Pcb calibration, power voltage regulation

Package / Case

3296 square through hole, cermet plastic shell

Series

3296 Series

Features

Multi-turn Potentiometer With Cermet Substrate

Size / Dimension

Body size 10mm\*9.5mm, pin length 6mm

Temperature Coefficient

±250ppm/°c

Tolerance

±10%

Power (Watts)

0.5

Number of Turns

28±2

Terminals

PC Pin

Type

Trimming Potentiometer

Technology

Cermet

Resistance

10Ω~5MΩ

Operating Temperature

-55°C~+125°C

Max. Operating Voltage

500V

Resistance Tolerance

±10%

Rated Power

0.5W

Packaging and delivery

Selling Units

Single item

Single package size

3X3X3 cm

Single gross weight

0.01 kg

Customization options

Customized logo(+ from +$0/piece/Min. order: 1,000 pieces)
