Tuya Single Phase Clamp Energy Meter WiFi 80-300A Power Meter Smart Power Analyzer Home Energy Management System Smart Life

Store rating:3.7

(39 reviews)1 sold

Xiamen Pawmate Smarttek Co., Ltd.

11 yrs

CN

Attributes

Single PhasePhase

90~250 Vac 50/60 HzOutput Voltage

1Accuracy Class

1000 AMax. Current

80ARated Current

80-120Measuring Energy Range

Place of Origin:Fujian, China

Model Number:PC311-TY-Z

Brand Name:OWON

Dimensions:86(L) x 86(W) x 37(H) mm

Display Type:Analog Only

Operating Temperature:-20 ℃ ~+55 ℃

ZigBee:2.4GHz IEEE 802.15.4

ZigBee Profile:ZigBee 3.0

Calibrated Metering Accuracy:≤ 100W Within ±2W ; >100W Within ±2%

Reporting Cycle:Every one minute

Din Rail:35mm

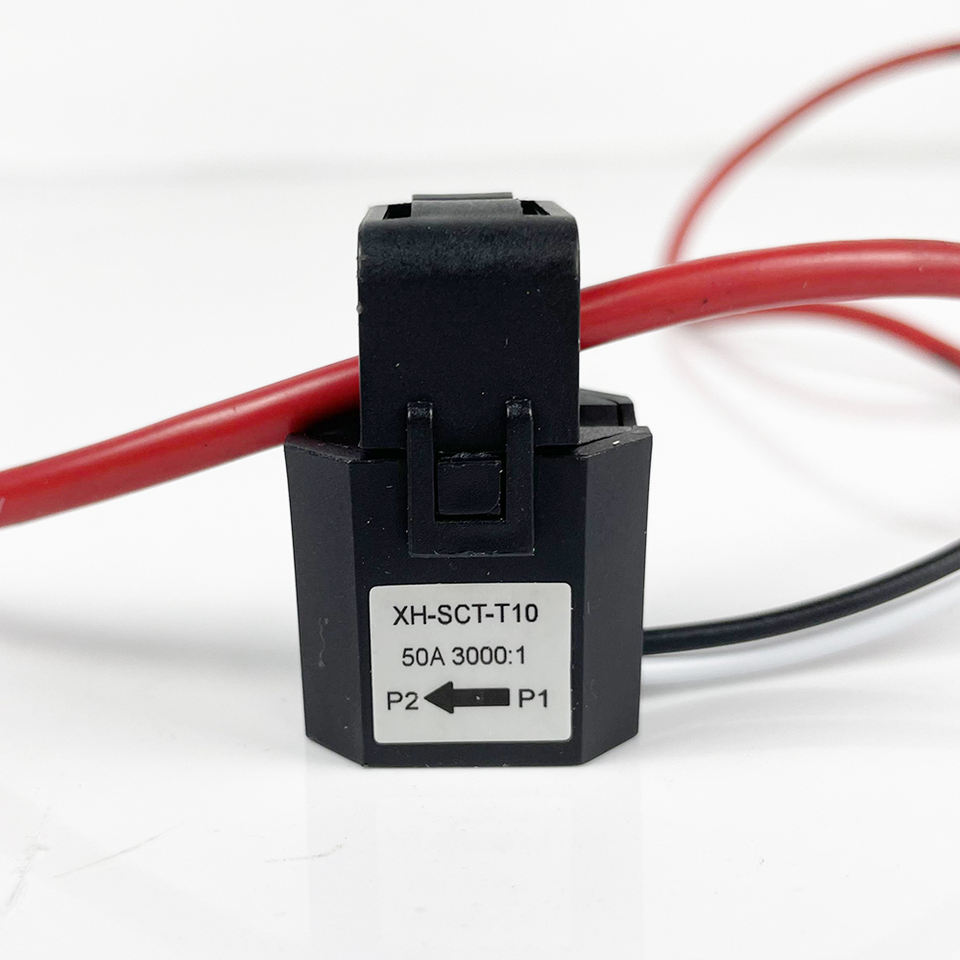

Clamp diameter:80A (default): 10.6mm;120A (optional): 16.7mm

Clamp cable length:1m

Dimension:46.1(L) x 46.2W) x 19(H) mm

Operating frequency:2.4GHz

Operating environment:Temperature:-20 ℃~+55 ℃ Humidity: ≤ 90% non-condensing

Accurate Energy Monitoring: This energy monitor provides calibrated metering accuracy of 100W within 2W and >100W within 2%, ensuring precise measurement of your energy consumption.

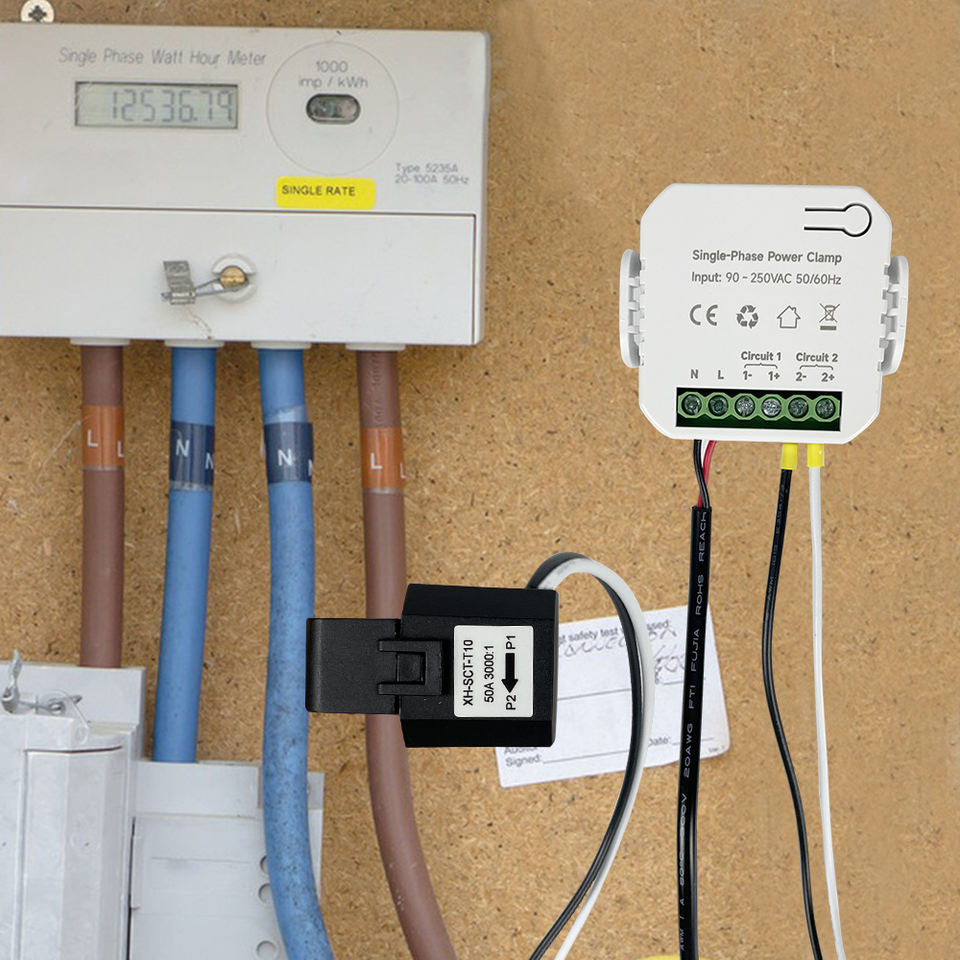

Easy Installation: The device is designed for simple installation with a clamp diameter of 80A (10.6mm) and 120A (16.7mm) options, making it suitable for various applications.

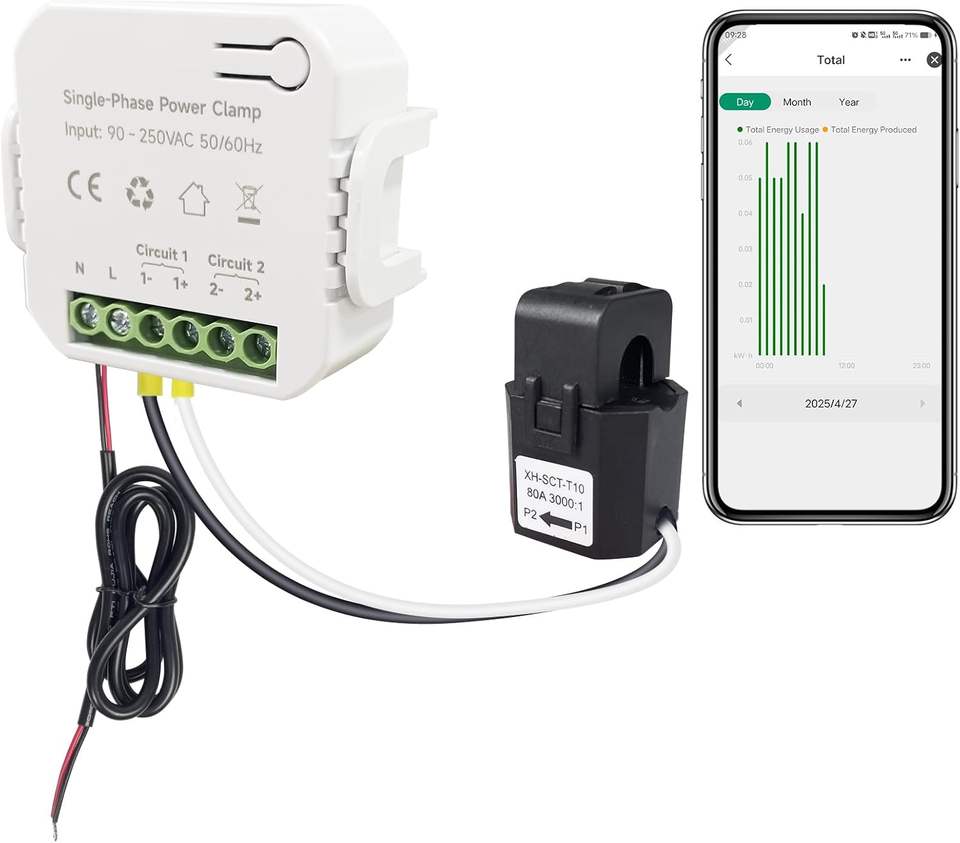

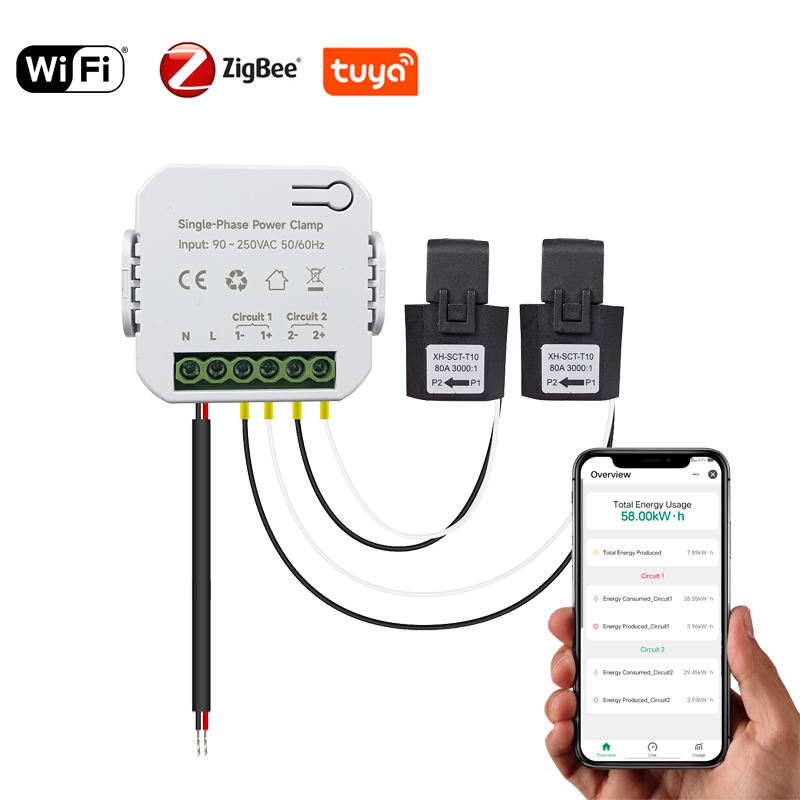

Remote Monitoring: The Zigbee 3.0 technology enables remote monitoring of energy consumption from a smartphone or tablet, allowing you to track your energy usage anywhere, anytime.
Durable and Reliable: The device operates within a wide temperature range of -20°C to +55°C and humidity of 90% non-condensing, ensuring reliable performance in various environments.
User-Friendly Interface: The analog display provides clear and easy-to-read energy consumption data, making it simple for users to understand their energy usage and make informed decisions.

Key attributes

Phase

Single Phase

Output Voltage

90~250 Vac 50/60 Hz

Accuracy Class

1

Max. Current

1000 A

Rated Current

80A

Measuring Energy Range

80-120

Operating Temperature

-20 ℃ ~+55 ℃

Display Type

Analog Only

Place of Origin

Fujian, China

Model Number

PC311-TY-Z

Brand Name

OWON

Dimensions

86(L) x 86(W) x 37(H) mm

ZigBee

2.4GHz IEEE 802.15.4

ZigBee Profile

ZigBee 3.0

Calibrated Metering Accuracy

≤ 100W Within ±2W ; >100W Within ±2%

Reporting Cycle

Every one minute

Din Rail

35mm

Clamp diameter

80A (default): 10.6mm;120A (optional): 16.7mm

Clamp cable length

1m

Dimension

46.1(L) x 46.2W) x 19(H) mm

Operating frequency

2.4GHz

Operating environment

Temperature:-20 ℃~+55 ℃ Humidity: ≤ 90% non-condensing

Packaging and delivery

Selling Units

Single item

Single package size

120X120X120 cm

Single gross weight

4.000 kg

Lead time

Customization options

Logo/graphic design(+ from +$0/piece/Min. order: 1,000 pieces)

View details

Customizable

5 - 99 pieces

$25

100 - 499 pieces

$1691

500 - 999 pieces

$1559

>= 1,000 pieces

$1442

Variations

Color: White

White

Size

46.1*46.2*19 mm

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
