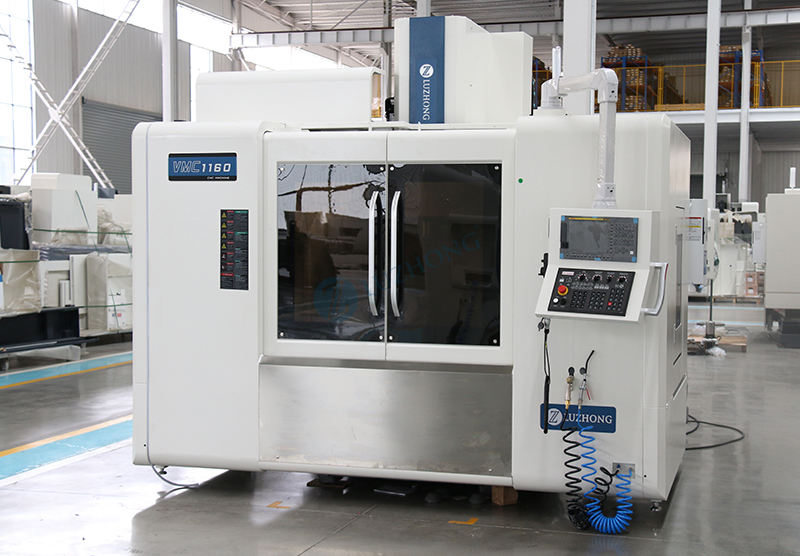

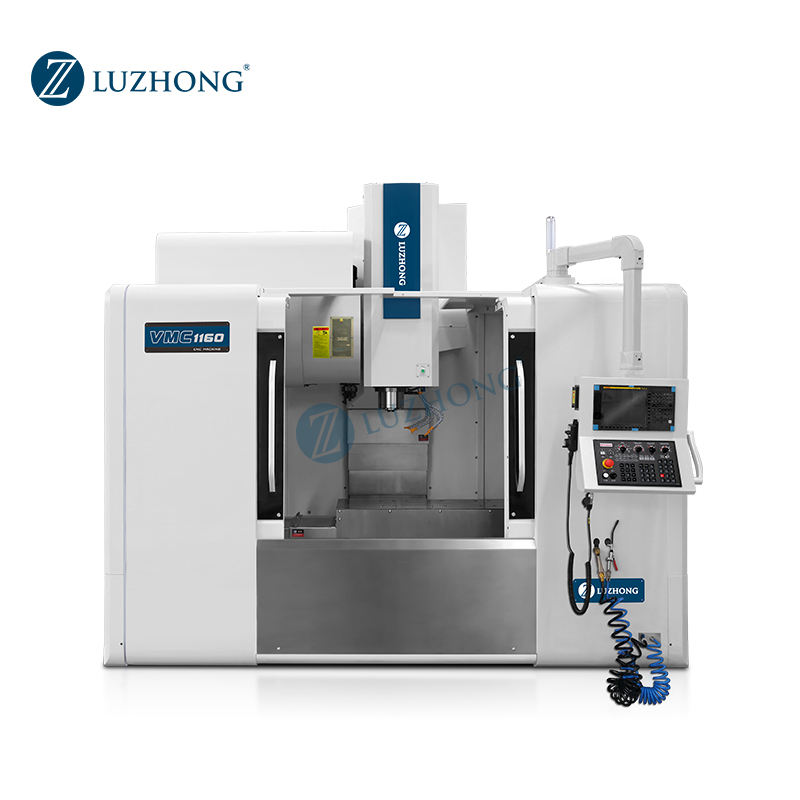

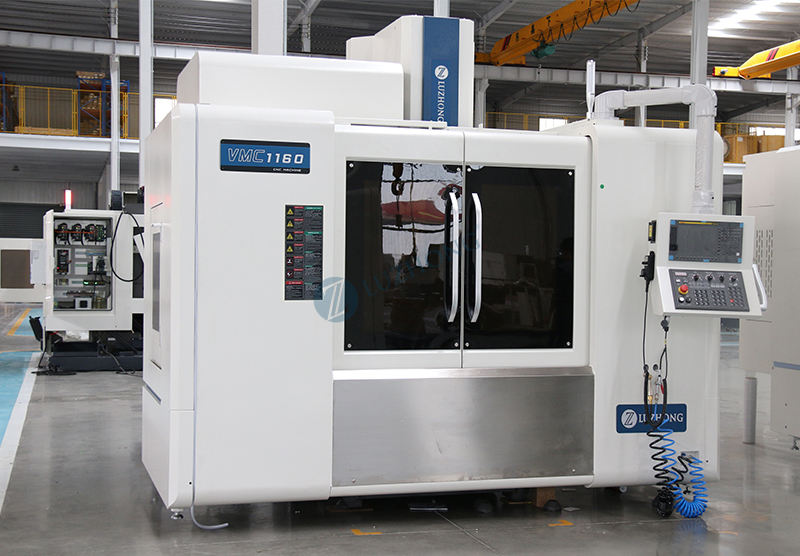

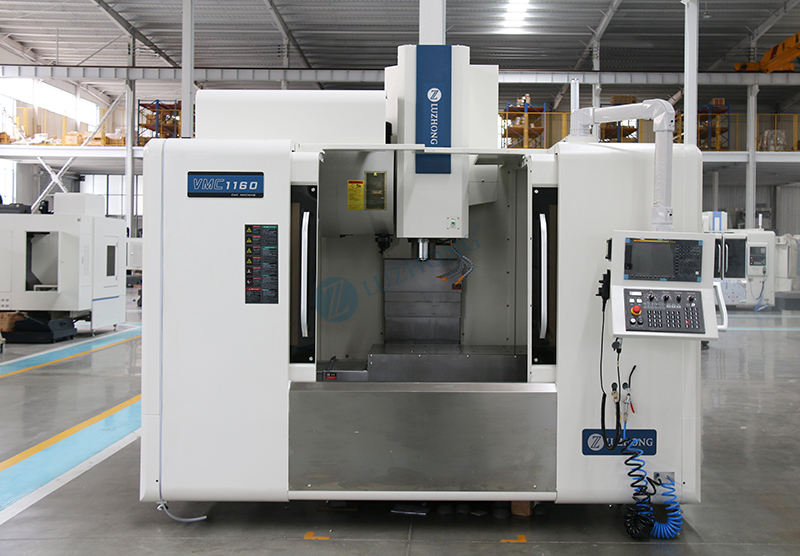

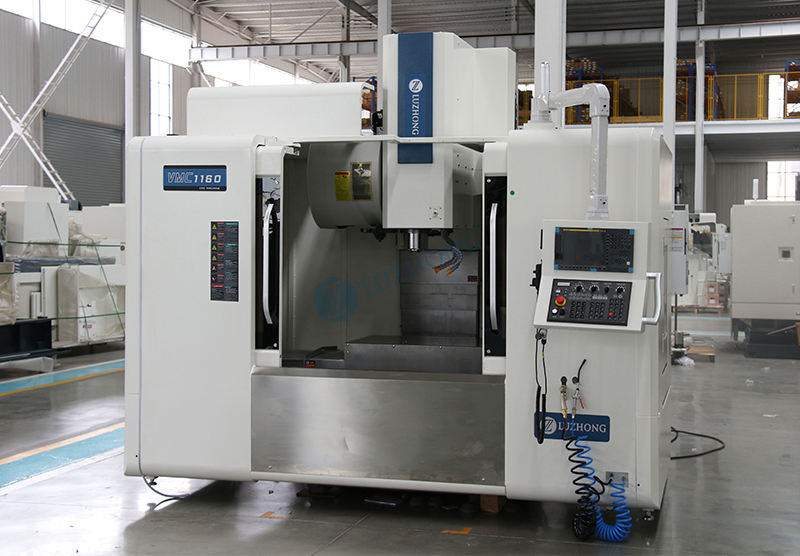

VMC1160 Low Cost Cnc Mold Milling Machine Aluminum Machining Center
Store rating:5.0
(440 reviews)Complies with EU standards
Complies with EU standards
Attributes
VERTICALtype
1200table travel (x) (mm)
600table travel (y) (mm)
500 mmtable travel (z) (mm)
0.005repeatability (x/y/z) (mm)
0.01 mmpositioning accuracy
table size:1000*500mm
no. of spindles:5
weight (t):5.6
max. table load(kg):550
min. time of tool change(s):2
place of origin:China
spindle taper:BT40
dimension(l*w*h):2700x2250x2550
cnc control system:FANUC
range of spindle speed:1 - 8000 r.p.m
tool magazine capacity:24
key selling points:Competitive Price
warranty:1 Year
voltage:220V/380V/420
machinery test report:Provided
video outgoing-inspection:Provided
machining capacity:Heavy Duty
rapid feed speed:0 - 36000 mm/min
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
type
VERTICAL
table travel (x) (mm)
1200
table travel (y) (mm)
600
table travel (z) (mm)
500 mm
repeatability (x/y/z) (mm)
0.005
positioning accuracy
0.01 mm
spindle taper
BT40
no. of spindles
5
tool magazine capacity
24
cnc control system
FANUC
machining capacity
Heavy Duty
voltage
220V/380V/420
table size
1000*500mm
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
Competitive Price
weight (t)
5.6
max. table load(kg)
550
place of origin
China
dimension(l*w*h)
2700x2250x2550
range of spindle speed
1 - 8000 r.p.m
rapid feed speed
0 - 36000 mm/min
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
number of axes(+ from +$5,000/set/Min. order: 1 set)
View details
Customizable
1 - 9 sets
$23,800
>= 10 sets
$23,000
Variations
Select nowmodel number: VMC1160
VMC1160
number of axes: 3
3
4
5
spindle motor power
7,5kw
Customization options
number of axes+$5,000/set (Min. order: 1 set)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
