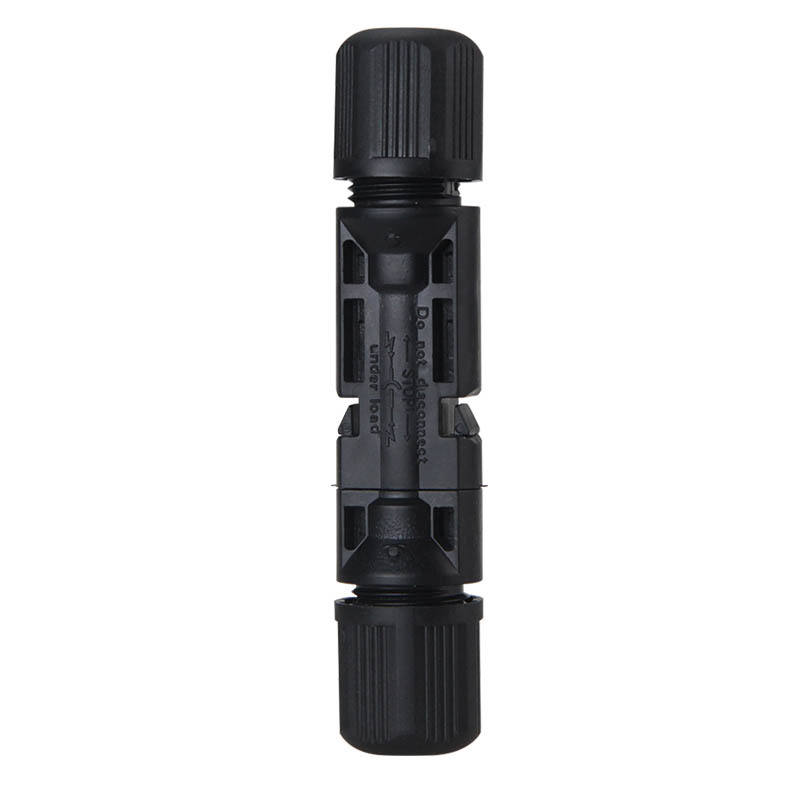

Waterproof PPO 2.5mm 4mm 6mm Pv Cable DC Connectors Plugs MC 1000vdc Connector for Solar Panels

5.0(2 reviews)339 sold

Wenzhou Beiyi Electric Co., Ltd.

3 yrs

CN

Attributes

Solar Power SystemApplication

PVType

30 ARated Current

1000 VRated Voltage

Ip67IP Level

CopperContact Material

Place of Origin:Zhejiang, China

Model Number:PV-BE01

Brand Name:BEIYI

Gender:Male/Female

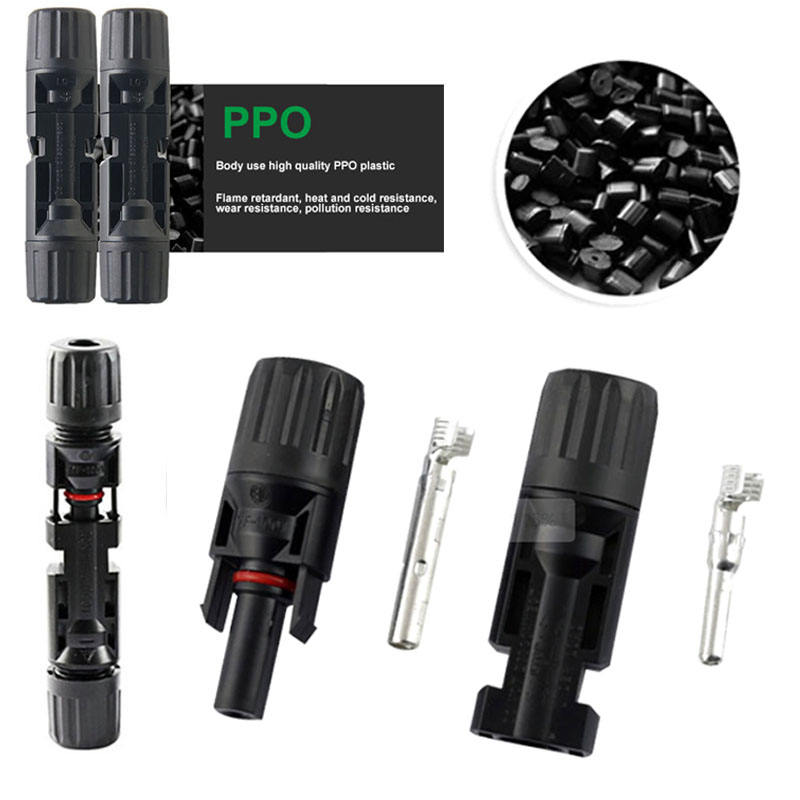

Housing Material:PC, PPO

Shape:Round

Rated voltage:1000V DC / 1500V DC

Rated current:30A/45A

Waterproofing grade:IP67

Ambient temperature:-40℃ ~ +90℃

Wiring specification:2.5mm² 4mm² 6mm²

Contact resistance:≤0.5mΩ

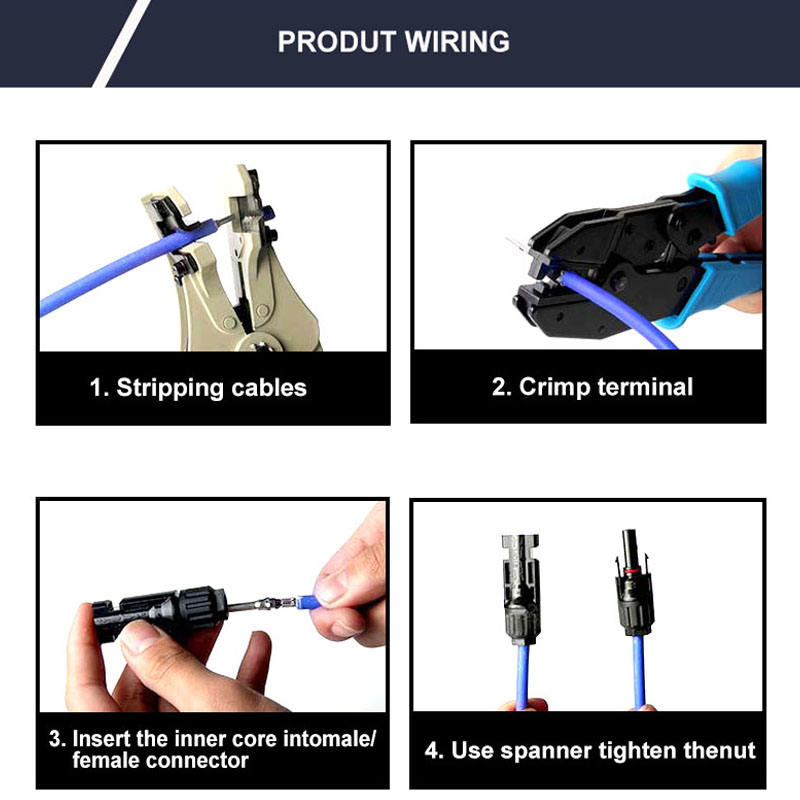

Connection system:crimping connection

Product name:Solar Panel Cable Connector/mc4 connector solar

Service:free sample, 2 years warranty

Product spotlights

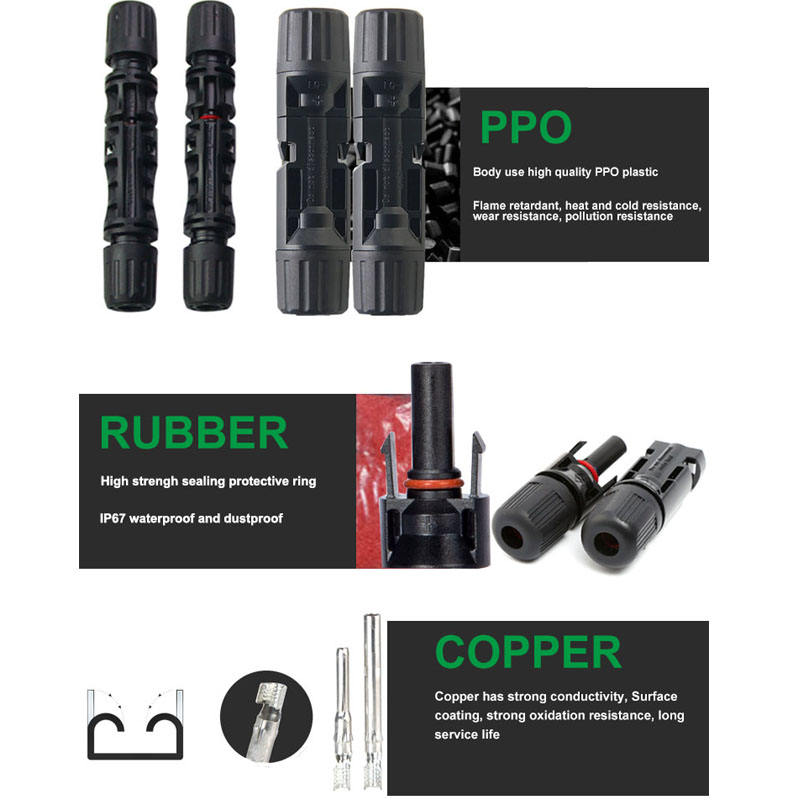

Copper Contact Material: Ensures reliable and efficient electrical conductivity, reducing the risk of power loss in solar power systems.

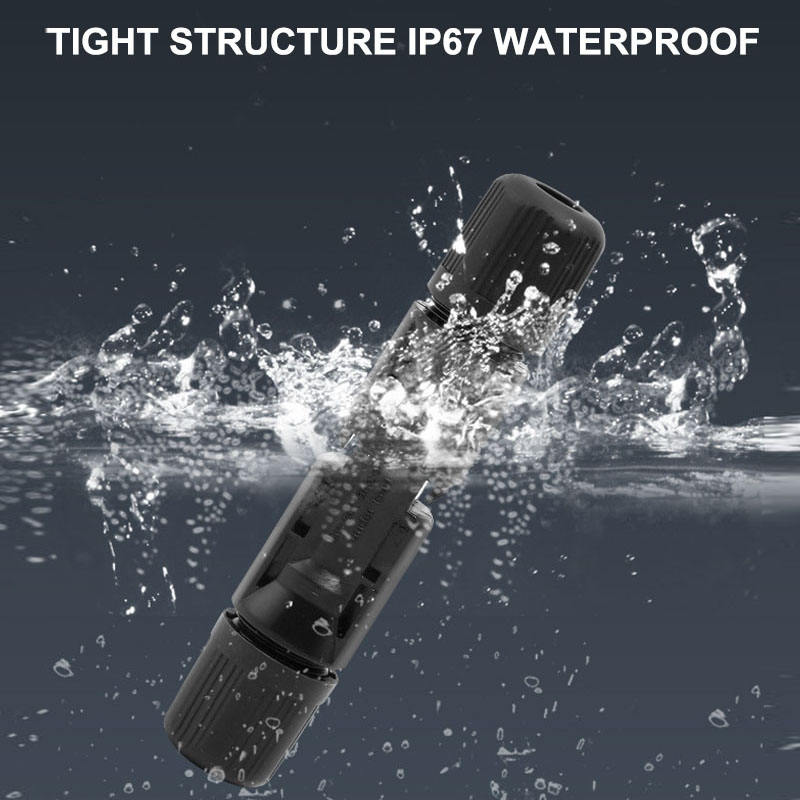

IP67 Waterproofing Grade: Provides excellent protection against water and dust, ensuring the connector remains functional even in harsh outdoor conditions.

Rated Voltage 1000V DC: Supports high voltage applications, making it suitable for a wide range of solar power systems.

Key attributes

Application

Solar Power System

Type

PV

Rated Current

30 A

Rated Voltage

1000 V

IP Level

Ip67

Contact Material

Copper

Housing Material

PC, PPO

Gender

Male/Female

Shape

Round

Model Number

PV-BE01

Place of Origin

Zhejiang, China

Brand Name

BEIYI

Rated voltage

1000V DC / 1500V DC

Contact Material

Copper, Tin plated

Rated current

30A/45A

Waterproofing grade

IP67

Ambient temperature

-40℃ ~ +90℃

Wiring specification

2.5mm² 4mm² 6mm²

Contact resistance

≤0.5mΩ

Connection system

crimping connection

Product name

Solar Panel Cable Connector/mc4 connector solar

Service

free sample, 2 years warranty

Packaging and delivery

Selling Units

Single item

Single package size

15X10X8 cm

Single gross weight

0.100 kg

Lead time

Customization options

Logo/graphic design(+ from +$0/set/Min. order: 10,000 sets)

Rated Current(+ from +$0.04/set/Min. order: 500 sets)

View details

FREE shipping capped at $20

Lower priced than similar

1 - 999 sets

$0.29

1,000 - 19,999 sets

$0.25

>= 20,000 sets

$0.22

Variations

Color: Black

Black

Number of Cores: 1-core

1-core

Pins

1P
