Attributes
WindowsOperating System
<1% (Reference to CRM D50)Repeatability Test
Spray Particle Size AnalyzerType
China shandongPlace of Origin
0°C~45°COperating Temperature
Winner319Model Number
Brand Name:Winner
Standard:ISO13320-1:1999, GB/T19077.1-2008, Q/0100JWN001-2024
Measure Range:1μm-500μm/1μm-1000μm/1μm-2000μm

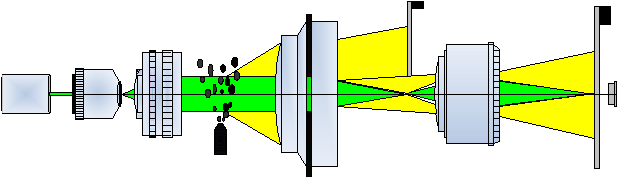

Principle:Fraunhofer diffraction principle
Channels:72pcs/76pcs/80pcs
Accuracy Error:<1% (Reference to CRM D50)
Repeatability Error:<1% (Reference to CRM D50)
Reproducibility Between Instruments:<1% (Reference to CRM D50)

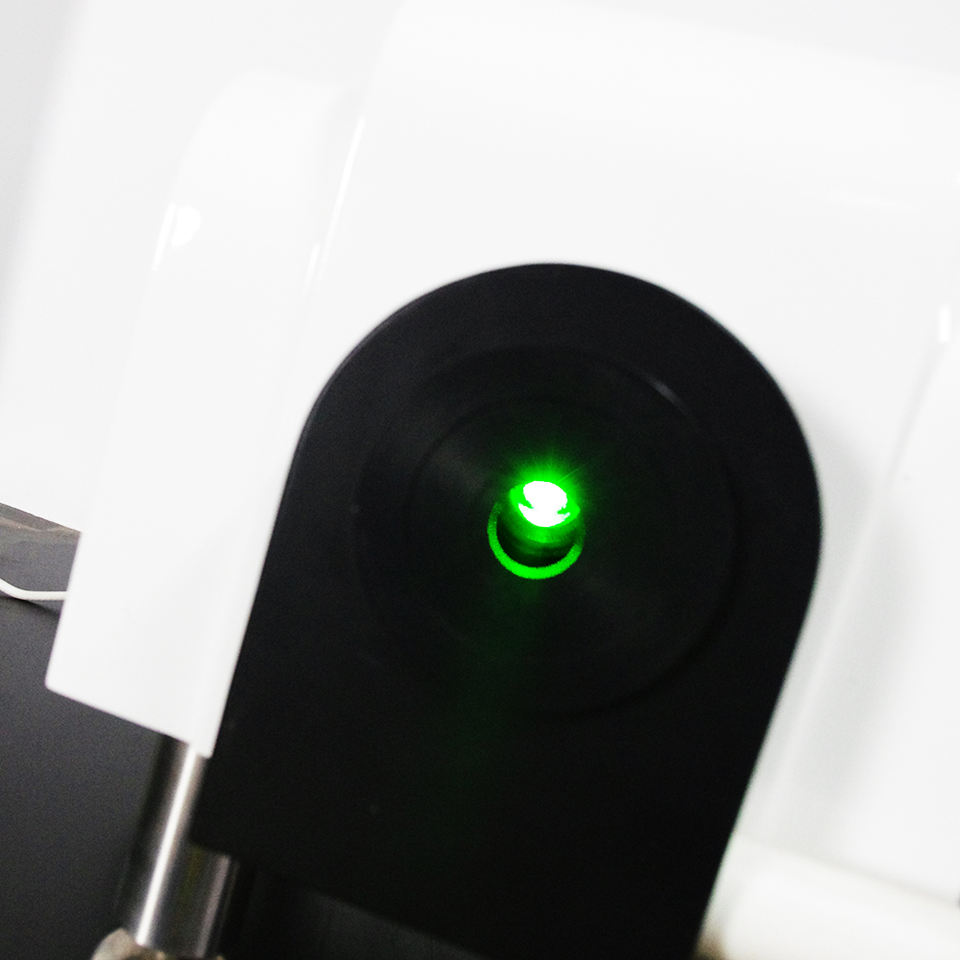

Light Source:LD Pump Laser
Laser Safety:Class 3B
Power Supply:220V 50HZ/60HZ
